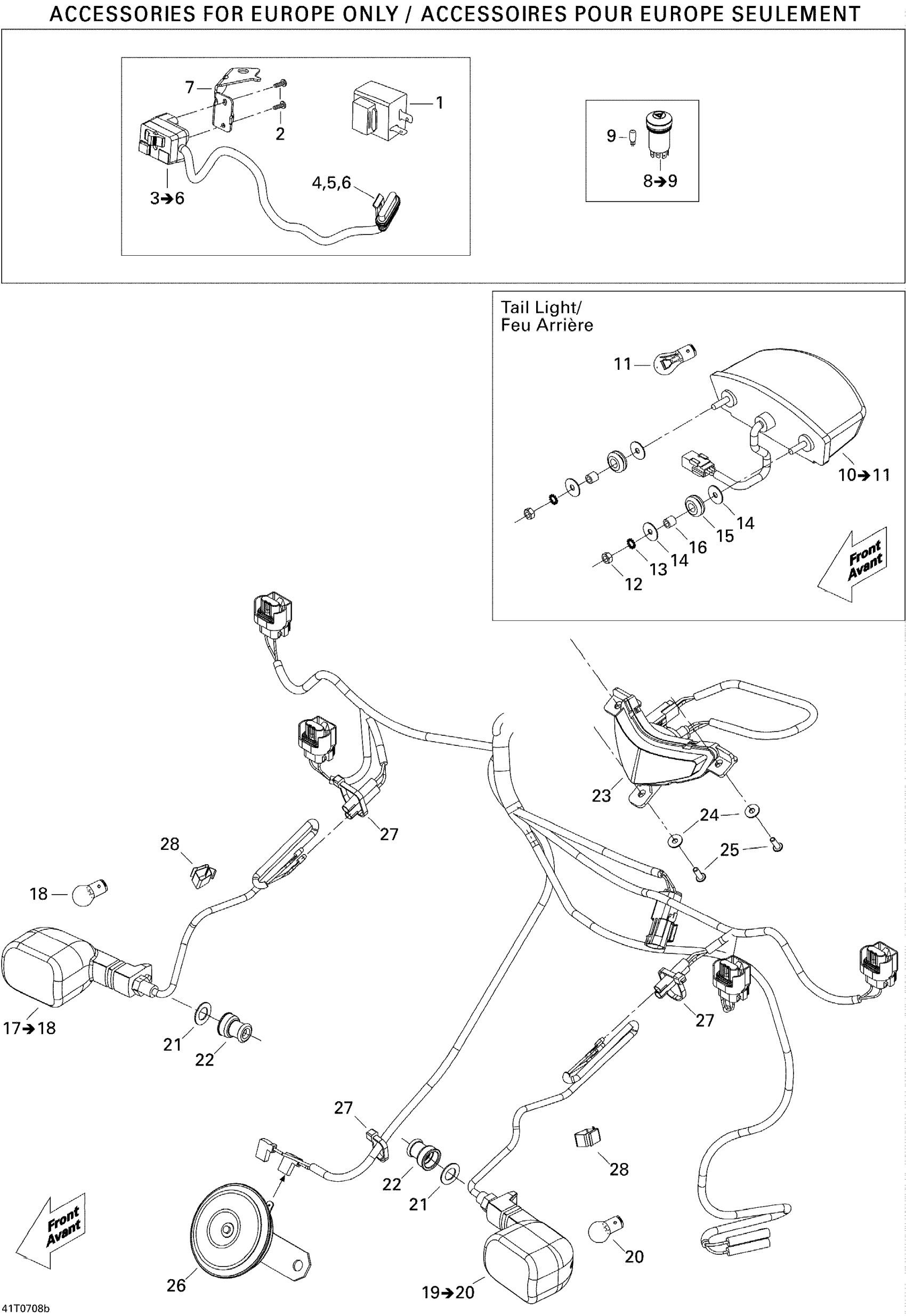

Can-Am Renegade 800 EFI, 2007 10- Electrical Accessories Europe Diagram

#

Description
Price

1

FLASHER UNIT - Call your local BRP dealership | Europe Models

710000581

Unavailable

2

Screw Hex. M4 X 12

207141260

$1.48

3

FLASHER SWITCH - Call your local BRP dealership | Includes 3 to 6

710000904

Unavailable

4

Connector

710000780

$19.49

5

Female Terminal

278001014

$3.28

6

Wire Seal

278001013

$3.28

7

Switch Support

710000905

Unavailable

8

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

9

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

10

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$56.99

11

Bulb

520000758

$9.10

12

Hex. Nut M6

232061600

$1.15

13

External Serrated Lock Washer 6 mm

234461608

$1.15

14

Flat Washer

224060201

$1.26

15

Grommet

709000582

$4.69

16

Bushing

293900105

$7.65

17

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

18

Flasher Bulb | Europe Models

710000662

Unavailable

19

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

20

Flasher Bulb | Europe Models

710000662

Unavailable

21

Washer

503175800

$3.28

22

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

23

Day Light

710001042

$85.99

24

Flat Washer 4 mm, Stainless

234042600

$1.15

25

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

26

Horn

710004791

$38.99

27

Tie-Rap 180 mm

414115200

$0.11

28

Clip

414227300

$1.67
