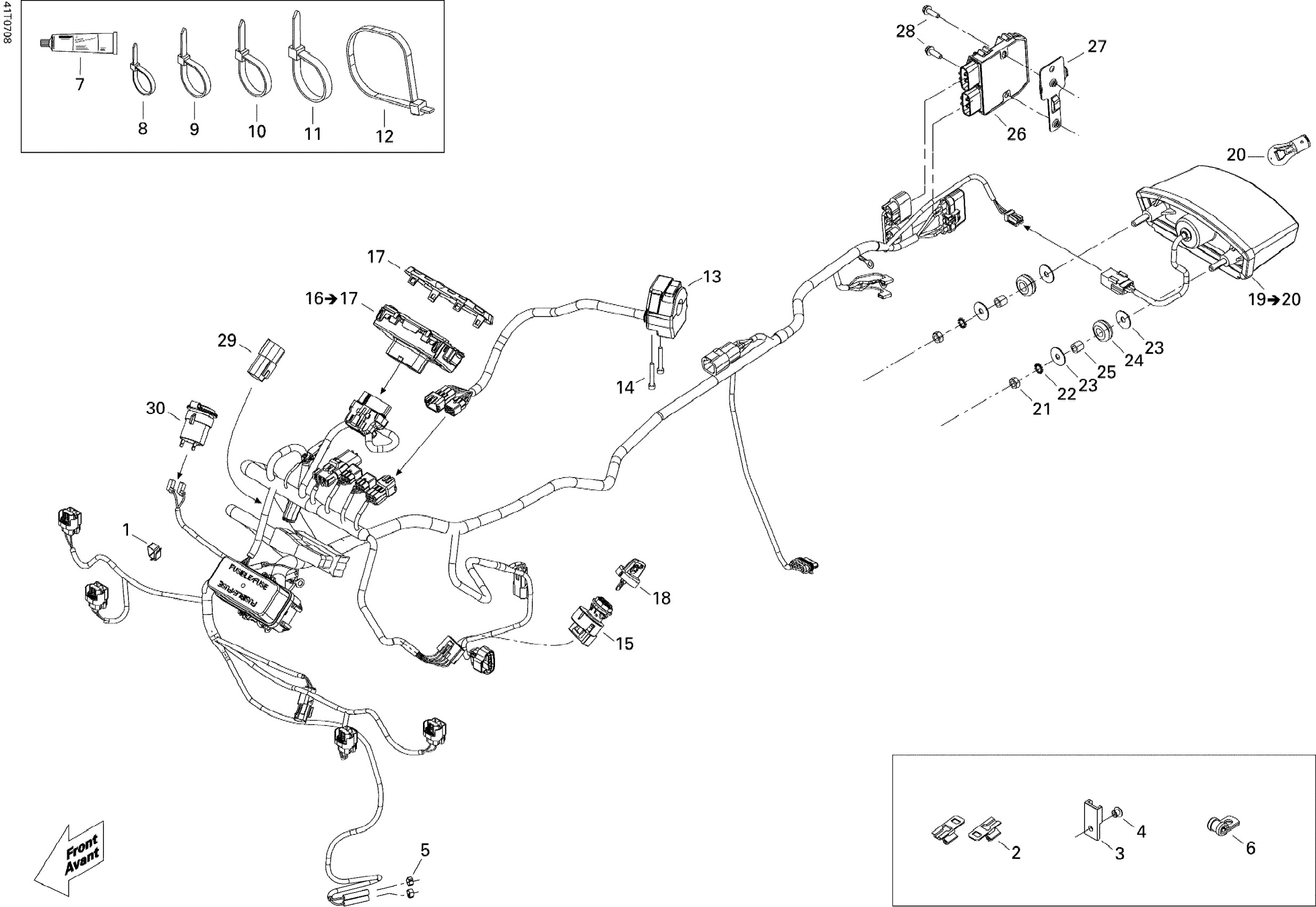

Can-Am Renegade 800 EFI, 2007 10- Electrical Accessories Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Housing Support

515175283

$9.19

3

Clip

270000141

$11.49

4

Pop Rivet 3/16"

390402400

$0.35

5

Oetiker Clamp

293650100

$3.38

6

Clamp

293650256

$5.49

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

Tie Wrap 94 mm | 4X4

293750001

$1.03

9

Tie-Rap 173 mm

293750009

$1.04

10

Tie-Rap 180 mm

414115200

$0.11

11

Tie Wrap 368 mm

293750008

$1.04

12

Tie-rap 627 mm

293750041

$0.93

13

Multi-Fonction Handle

710000791

$116.49

14

Socket Head Screw M5 X 35

205053588

$1.90

15

Ignition Switch | Includes 16 to 17

710002324

$79.49

16

Calibrated Speedometer | Includes 16 to 17

710003288

$349.99

17

Trim Ring Ass'y

710001183

$19.99

18

Black, Electronic Key

710000817

$63.49

19

Tail Light Ass'y | Includes 19 to 20

710001041

$62.49

20

Bulb

520000758

$9.10

21

Hex. Nut M6

232061600

$1.15

22

External Serrated Lock Washer 6 mm

234461608

$1.15

23

Flat Washer

224060201

$1.26

24

Grommet

709000582

$4.69

25

Bushing

293900105

$7.65

26

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

27

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

28

Hexagonal Head Screw

210262050

$2.11

29

Diagnostic Connector

278002704

$19.49

30

Outlet Power Kit, 12 Volts

861507200

$36.99
