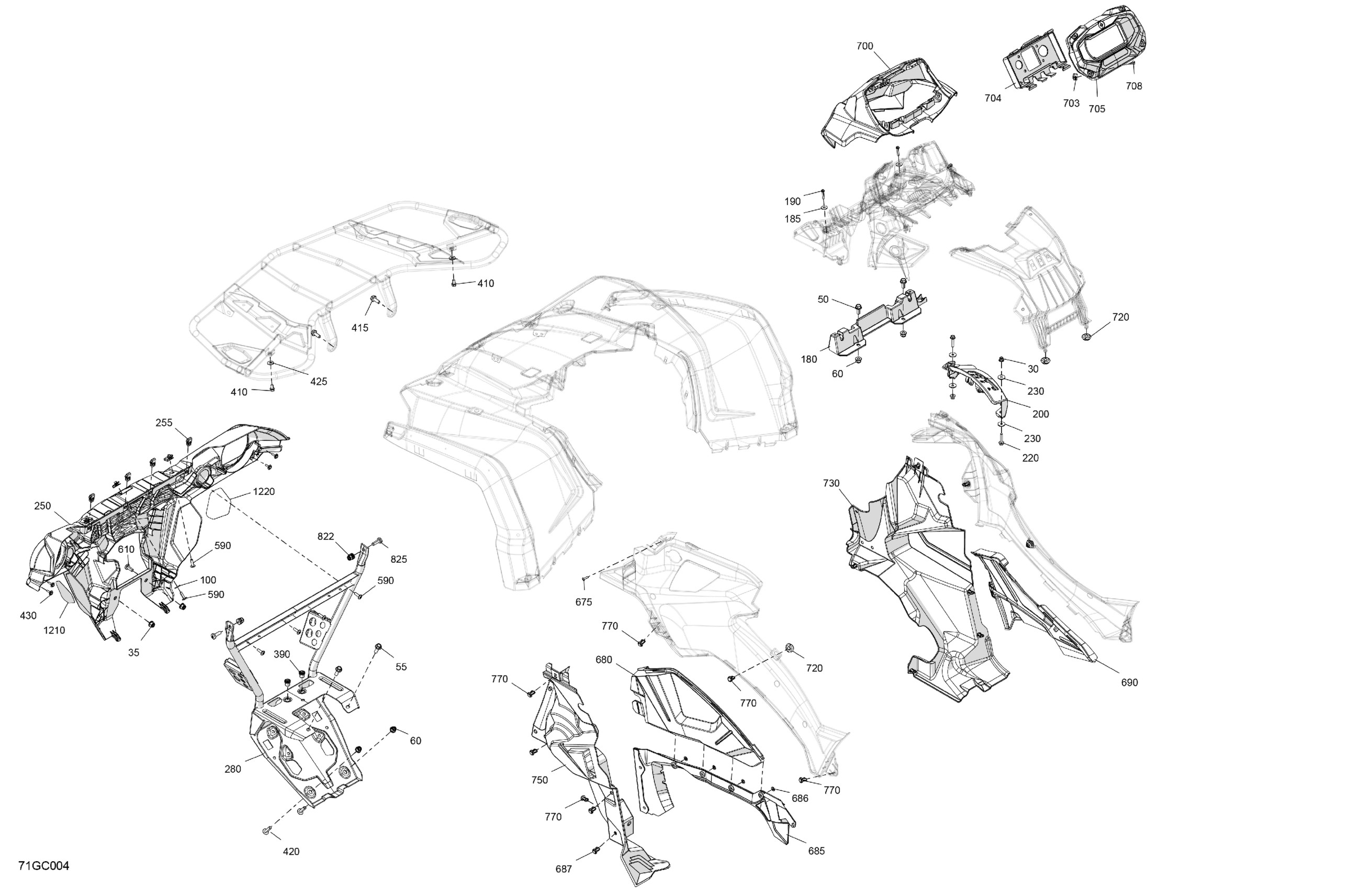

Can-Am 008 - Outlander MAX 570 EFI - DPS - Granit Grey (2FPC) International, 2023 07- Body - Front Section Diagram

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Elastic Nut M8

233281434

$2.11

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Hex. Flange Elastic Nut M8

233281434

$2.11

Flat Washer 6 mm

234062410

$0.77

Console Support Insert

705010406

$16.99

Flat Washer M6, Stainless

234062600

$0.77

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shift Lever Grille Kit

715008678

$26.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

224061201

$1.37

Front Facia | Model-North America, International

705009334

$119.99

Panel Nut M6 X 1.0

250100198

$2.11

Front Frame

705017337

$264.99

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Hex. Flange Screw M6 X 12

210261250

$1.90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Torx Screw M8 X 30

250000886

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Screw M4 X 16

250000725

$3.49

Torx Screw M6 X 20

250000722

$1.68

Hex. Screw M8 X 20

236282054

$1.47

Phillips Screw K40 X 16

250000723

$0.98

Deflector Body Panel Kit

715007294

$55.99

Deflector Body Panel

705014061

$43.99

Push Nut

732610072

$2.19

Tuflok Plastic Rivet

293150230

$1.47

Engine Cover

705003444

$22.99

Gauge Support

705013984

$19.99

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Interior Gauge Support

705015548

$6.19

Gauge Trim

705015547

$22.49

Torx Head Screw M4 X 16

250000797

$2.09

Grommet

705003264

$4.09

RH Front Wheel Arch Protector

705017023

$28.49

LH Front Wheel Arch Protector

705017022

$28.49

Tuflok Plastic Rivet

293150230

$1.47

Elastic Flange Nut M8

233281464

$1.01

Pan Torx Screw M8 X 25

250000898

$2.11

LH Side Front Reflector | Model-North America, International

704903972

$14.49

RH Side Front Reflector | Model-North America, International

704903973

$13.49
