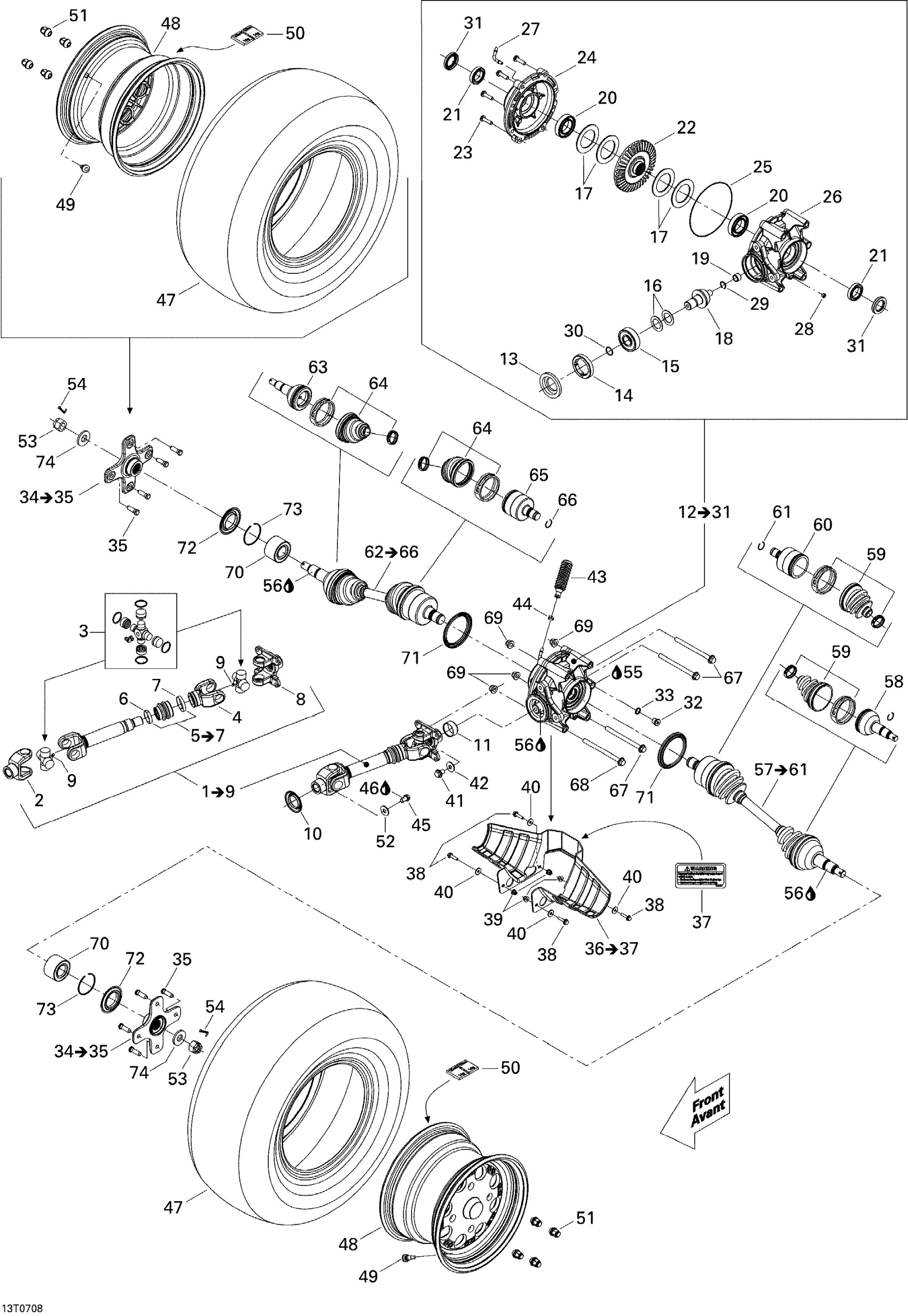

Can-Am Renegade 800 EFI, 2007 08- Drive System, Rear Diagram

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$433.99

Fixe Yoke

715900101

$29.49

Universal Joint

715900326

$68.99

SLIDING JOINT - Call your local BRP dealership

705500528

Unavailable

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

Collar | 4X4

705400148

Unavailable

DISC JOINT - Call your local BRP dealership

705500526

Unavailable

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

Protector

705501123

$7.55

Wear Ring | 4X4

705400036

$26.49

Differential | Includes 11 to 31

705500822

Unavailable

Oil Seal | 4X4

705401481

$19.49

Nut

705502059

$32.99

Ball Bearing | 4X4

705500260

$31.99

Pinion Gear Shim 1.67 mm

705502061

$18.99

Differential Shim 0.02 mm

705502060

$13.76

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

Needle Bearing | 4X4

705500261

$19.99

Ball Bearing

705502737

$48.49

BALL BEARING - Call your local BRP dealership

705500750

Unavailable

GEAR, 36 TOOTH - Call your local BRP dealership

705500775

Unavailable

Screw | 4X4

705401601

$10.49

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705500697

Unavailable

Seal | 4X4

705500265

$18.76

Rear Cover

705500843

Unavailable

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

Drain Plug | 4X4

705500894

$11.49

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

O-Ring | 4X4

705500267

$7.65

Oil Seal

705501996

$21.99

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

Protector Kit | Includes 38 to 39

703500722

$67.99

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer

250200082

$0.42

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

Flat Washer M10 | 4X4

250200014

$1.49

Rubber Bellow | 4X4

705400552

$6.14

Oetiker Clamp

293650042

$3.09

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Loctite 271, 10 ml

293800005

$26.99

Rear Tire | Europe & International

705500820

$164.99

Tire | North America

705500926

$164.99

RIM_12 INCH X 7,5 - Call your local BRP dealership

705500837

Unavailable

Rim Valve With Cap

705400193

$8.69

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

Unavailable

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

Flat Washer M10 | 4X4

250200014

$1.49

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400036

$2.11

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

Synthetic Grease, 400 G

293550010

Unavailable

LH CV JOINT - Call your local BRP dealership | Includes 58 to 63

705500726

Unavailable

CV JOINT - Call your local BRP dealership

705500728

Unavailable

Boot Kit

705500855

$42.49

PLUNGING JOINT - Call your local BRP dealership

705500729

Unavailable

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

RH CV JOINT - Call your local BRP dealership | Includes 64 to 69

705500727

Unavailable

CV JOINT - Call your local BRP dealership

705500728

Unavailable

Boot Kit

705500855

$42.49

PLUNGING JOINT - Call your local BRP dealership

705500729

Unavailable

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

Hex. Flange Screw, M10 X 130

230603046

$7.41

Hex. Flange Screw M10 X 135

230603546

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Wear Ring

705501124

$7.90

Wear Sleeve | 4X4

705501121

$7.90

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65
