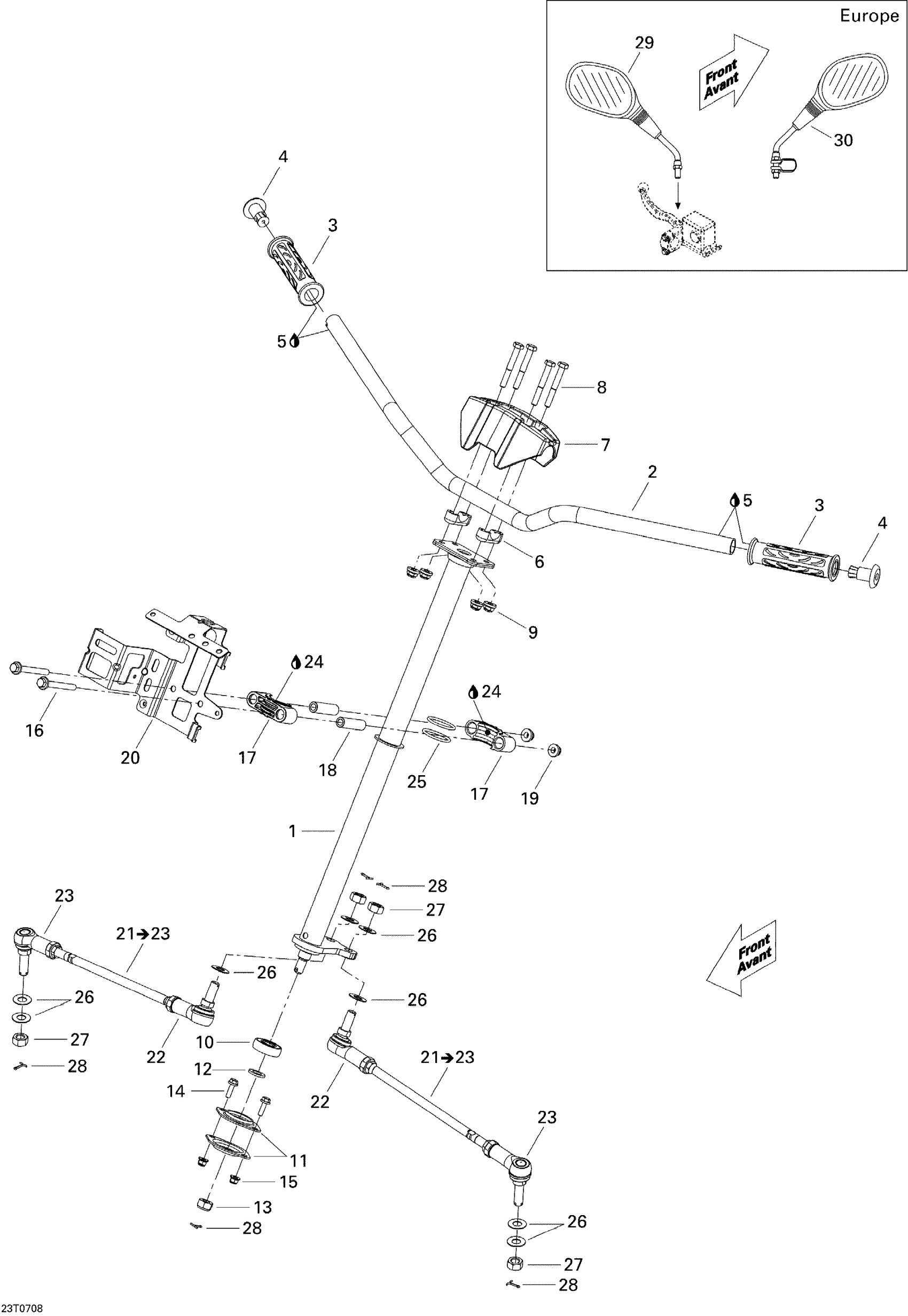

Can-Am Renegade 800 EFI, 2007 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400971

$184.99

2

Handlebar

709401242

$64.49

3

Handle Grip

709400493

$14.83

4

End Piece

709400449

$8.49

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$22.49

7

SUPPORT - Call your local BRP dealership

709400920

Unavailable

8

Socket Head Screw M8 X 60

205086060

$4.12

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Hex. Flange Elastic Nut M12

250000047

$1.90

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Screw M8 X 70

207687044

$7.41

17

Half Bushing

709400471

$14.30

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

22

Ball Joint, RH Threads

709400487

$52.99

23

LH Ball Joint

709402303

$36.99

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$7.65

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

LH Mirror | Europe

709400406

$32.99

30

RH Mirror | Europe

709400407

$47.49
