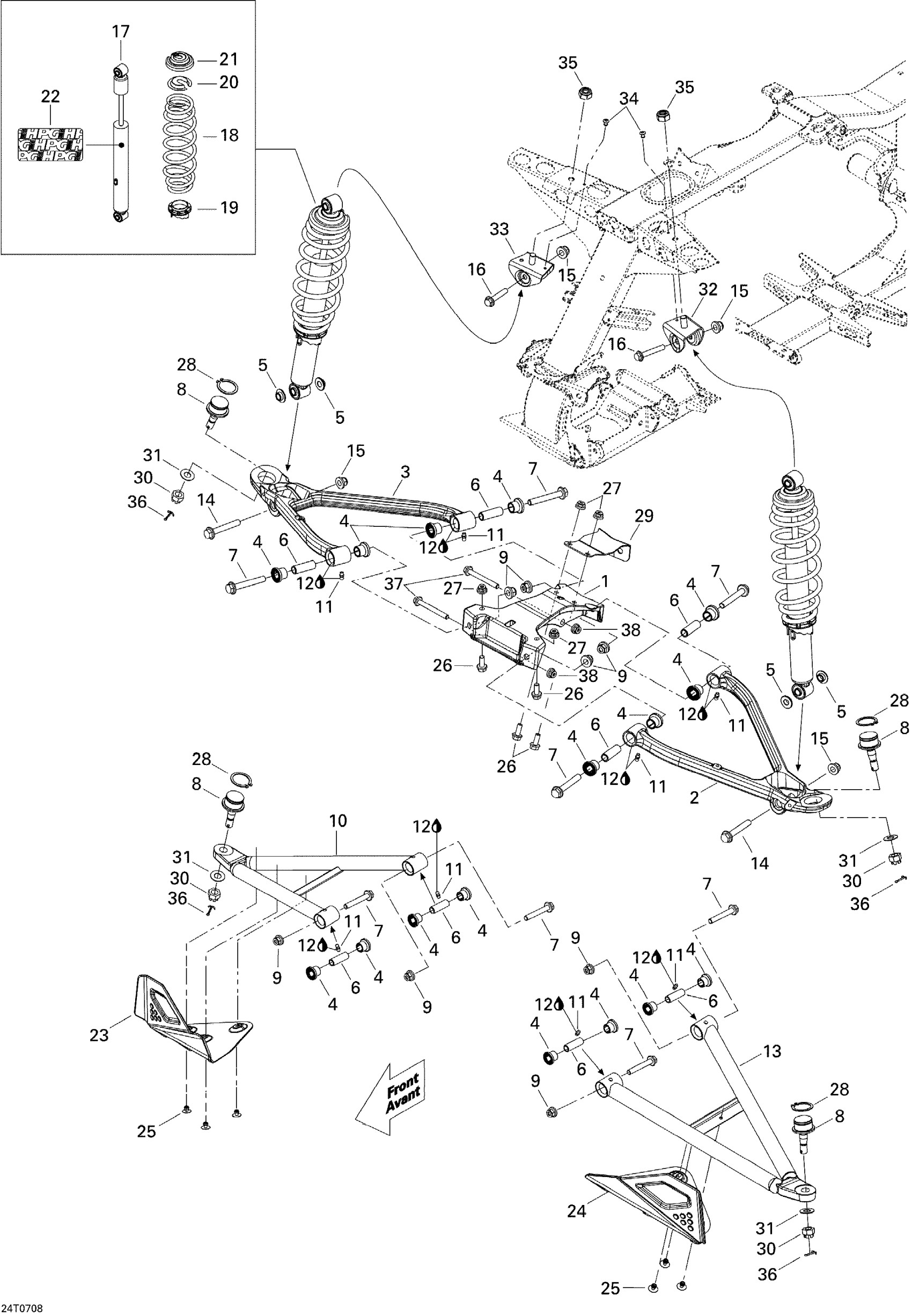

Can-Am Renegade 800 EFI, 2007 07- Front Suspension Diagram

Upper Arm Bracket

706201360

$158.99

LH Upper Arm

706200763

Unavailable

RH Upper Arm

706200764

Unavailable

Bushing

706200181

$3.14

SPACER BUSHING - Call your local BRP dealership

706200677

Unavailable

Sleeve

706201587

$3.79

Hex. Flange Screw M10 X 70

207607046

$2.96

Ball Joint

706200653

$44.99

Hex. Flange Elastic Nut M10

233201436

$2.11

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

706201047

Unavailable

Grease Fitting

408200700

$3.49

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

706201045

Unavailable

Hex. Flange Screw M10 X 65

207606536

$4.44

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 55

207605544

$3.38

FRONT SHOCK - Call your local BRP dealership

706200420

Unavailable

Yellow Spring

706200632

Unavailable

Adjuster Ring

706002356

$18.49

Spring Stopper

706200881

$12.99

Cap

706200785

$4.69

DECAL H.P.G. - Call your local BRP dealership

704901412

Unavailable

RH Protector

706201670

$17.54

LH Protector

706201669

$17.54

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Circlip 32 mm

293370009

$1.39

UPPER ARM BRACKET - Call your local BRP dealership

706200405

Unavailable

Nut M12

250100099

$2.09

Hardened Washer

706200281

$2.85

LH UPPER ARM BRACKET - Call your local BRP dealership

706201039

Unavailable

RH Upper Bracket

706200595

Unavailable

Pop Rivet 3/16"

390402300

$0.75

Elastic Stop Nut M12

232521416

$1.69

Cotter Pin

211400017

$0.33

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47
