Description

Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$270.49

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

4

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

6

Collar | 4X4

705400148

Unavailable

7

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

8

Front Bushing Shaft Kit | 4X4

703500678

$114.99

9

Wear Ring | 4X4

705400036

$26.49

10

Front Differential | Includes 8 to 31

703500907

$1,579.99

11

Oil Seal | 4X4

705401481

$19.49

12

Nut | 4X4

705401603

$35.99

13

Ball Bearing | 4X4

705500260

$31.99

14

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

15

Needle Bearing | 4X4

705500261

$19.99

16

Ball Bearing | 4X4

705401606

$51.99

17

Ball Bearing | 4X4

293350044

$31.99

18

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

19

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

20

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

21

Screw | 4X4

705401601

$10.49

22

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

23

Seal | 4X4

705500265

$18.76

24

Front Cover

705400646

Unavailable

25

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

26

Drain Plug | 4X4

705500894

$11.49

28

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

29

O-Ring | 4X4

705500267

$7.65

30

Gasket | 4X4

705401618

$18.49

31

Pinion Gear Shim 1.67 mm

705502061

$18.99

32

Pinion Gear Shim .022"

705500075

Unavailable

33

Shim | 4X4

705401604

$57.99

34

Shim | 4X4

705401604

$57.99

35

Shim | 4X4

705401604

$57.99

36

Fill Level Plug | 4X4

705500504

$10.01

37

Copper Washer | 4X4

705500506

$0.45

38

RH Half Shaft | Includes 34 to 39

705401579

$243.99

39

CV Joint

705500560

Unavailable

40

Wheel Boot Kit

705400511

$42.49

41

Differential Boot Kit

705400512

$42.49

42

RH Plunging Joint

705400513

Unavailable

43

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

44

LH KNUCKLE - Call your local BRP dealership

705400820

Unavailable

45

RH KNUCKLE - Call your local BRP dealership

705400821

Unavailable

46

LH Half Shaft | Includes 42 to 47

705401578

$243.99

47

CV Joint

705500560

Unavailable

48

Wheel Boot Kit

705400511

$42.49

49

Differential Boot Kit

705400512

$42.49

50

LH Plunging Joint

705400514

Unavailable

51

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

52

Ball Bearing

293350150

$52.99

53

Circlip

293370019

$4.68

54

Hex. Flange Screw M10 X 125

230602546

$7.41

55

Hex. Flange Elastic Nut M10

233201436

$2.11

56

EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4

705501122

Unavailable

57

WHEEL HUB ASS'Y - Call your local BRP dealership | 2X4 / Includes 63 to 64

705401040

Unavailable

58

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

59

Conical Spring Washer M18

250200171

$7.65

60

Hex. Flange Castellated Nut M18

232291413

$7.98

61

Cotter Pin

250400036

$2.11

62

Rubber Bellow | 4X4

705400552

$6.14

63

Oetiker Clamp

293650042

$3.09

64

TIRE_205/80R12 F - Call your local BRP dealership | Europe & International

705400475

$184.99

64

Tire | North America

705400600

$189.99

65

Front Rim

705400506

$164.99

66

Rim Valve With Cap

705400193

$8.69

67

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

Unavailable

68

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

69

Washer

211200041

$3.17

70

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

71

Wear Sleeve

705400780

$7.90

72

Flat Washer M10 | 4X4

250200014

$1.49

73

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

74

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

75

Synthetic Grease, 400 G

293550010

Unavailable

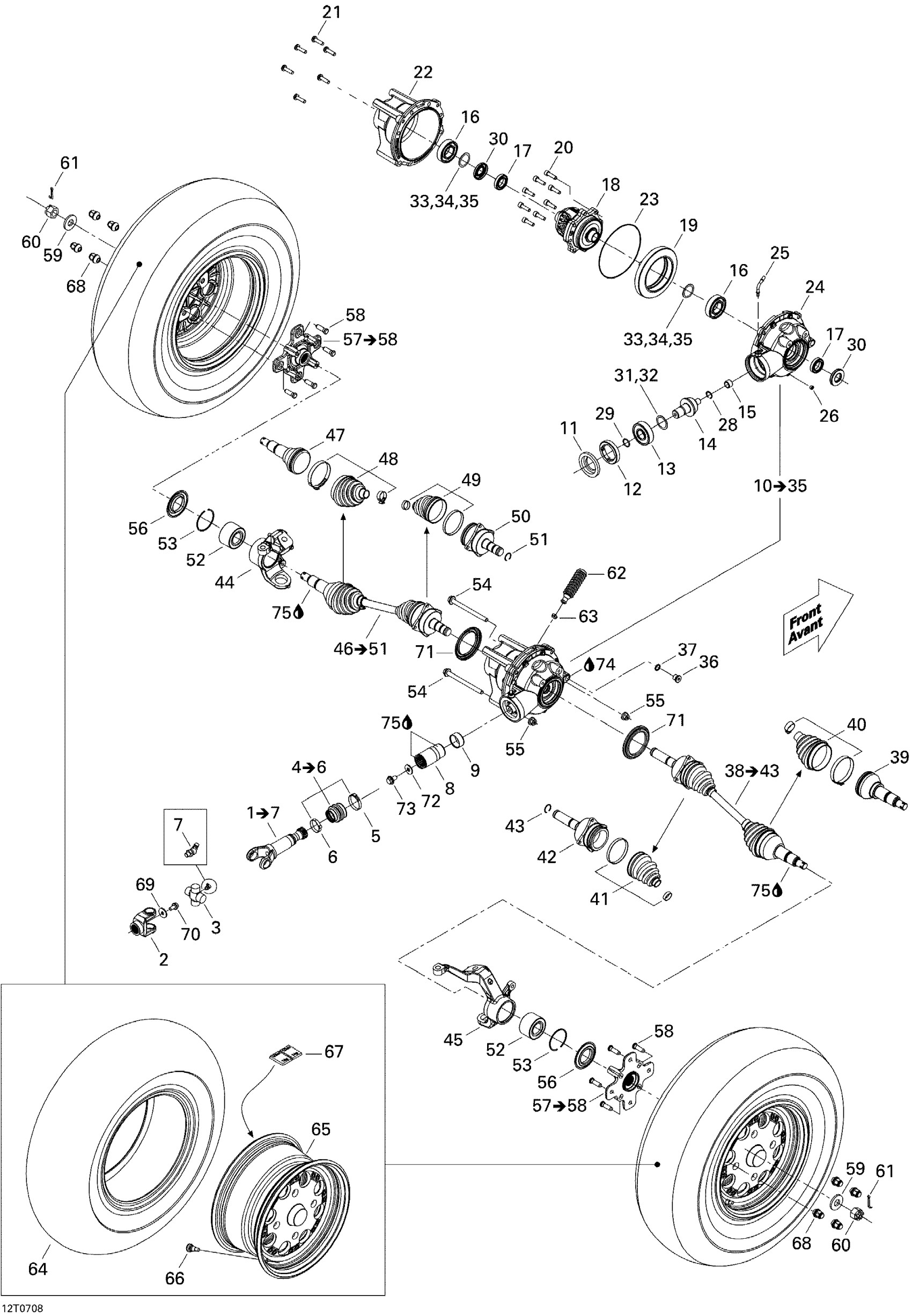

Can-Am Renegade 800 EFI, 2007 07- Drive System, Front Diagram
