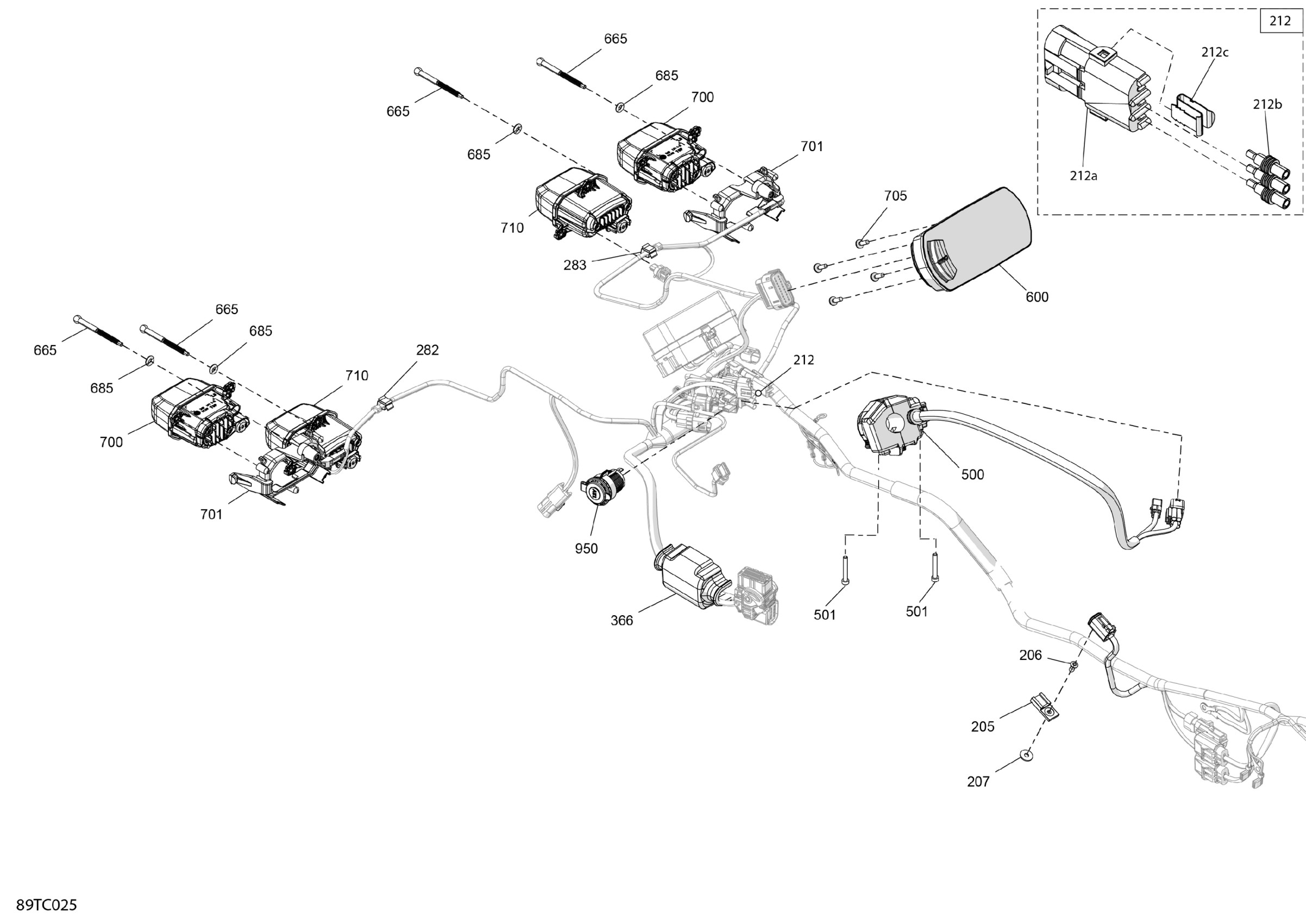

Can-Am 002 - Outlander MAX 6X6 - 650 EFI - DPS - North America, 2023 08- Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

282

Clip

414227300

$1.67

283

Clip

414227300

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$69.99

501

Socket Head Screw M5 X 35

205053588

$1.90

600

Multifunction Gauge Compact Mono

710008108

$409.99

665

Ajustment Screw

710005837

$6.35

685

O-Ring

293300192

$4.92

700

Low Beam Light

710008088

$139.99

701

Exterior Headlight Support

710008396

$26.99

705

Torx Screw K50 X 16

250000720

$1.69

710

HIgh Beam Light

710006910

$129.99

950

DC Outlet

710001248

$37.99
