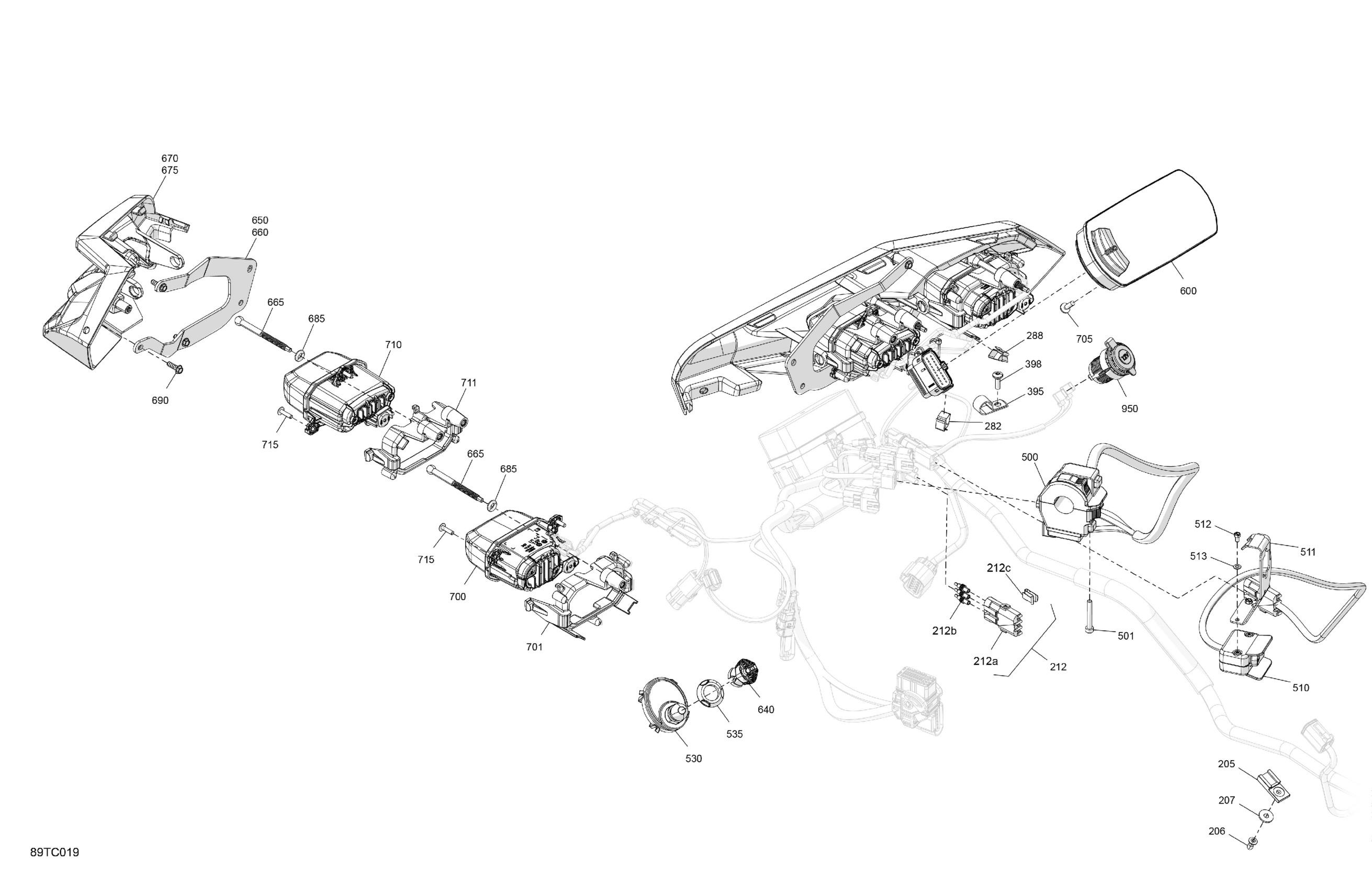

Can-Am 003 - Renegade 1000R EFI - XXC - North America, 2023 08- Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

282

Clip

414227300

$1.67

288

Clip

414227300

$1.67

395

Open Clamp

518321570

$7.69

398

Torx Screw K50 X 16

250000720

$1.69

500

Switch Handle

710006134

$71.99

501

Socket Head Screw M5 X 35

205053588

$1.90

510

Winch Switch

710007327

$13.18

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$10.99

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

513

Flat Washer 4 mm

234040600

$0.55

530

Terminal DESS One Wire

515179305

$74.99

535

Specialized Nut

278004274

$3.28

600

Multifunction Gauge Compact Mono

710008108

$409.99

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

640

Grey, Can-Am DESS Key

515179384

$63.49

650

LH Front Headlight Support

710008461

$38.99

660

RH Front Headlight Support

710008462

$38.99

665

Ajustment Screw

710005837

$6.35

670

Trim_Headlight Fl

705016529

$51.99

675

RH Front Headlight Trim

705016532

$66.99

685

O-Ring

293300192

$4.92

690

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

700

Low Beam Light

710008088

$139.99

701

Exterior Headlight Support

710008396

$26.99

705

Torx Screw K50 X 16

250000720

$1.69

710

HIgh Beam Light

710006910

$129.99

711

Interior Headlight Support

710008394

$9.09

715

Torx-Truss Pt K40 X 16

250000759

$2.11

950

DC Outlet

710001248

$37.99
