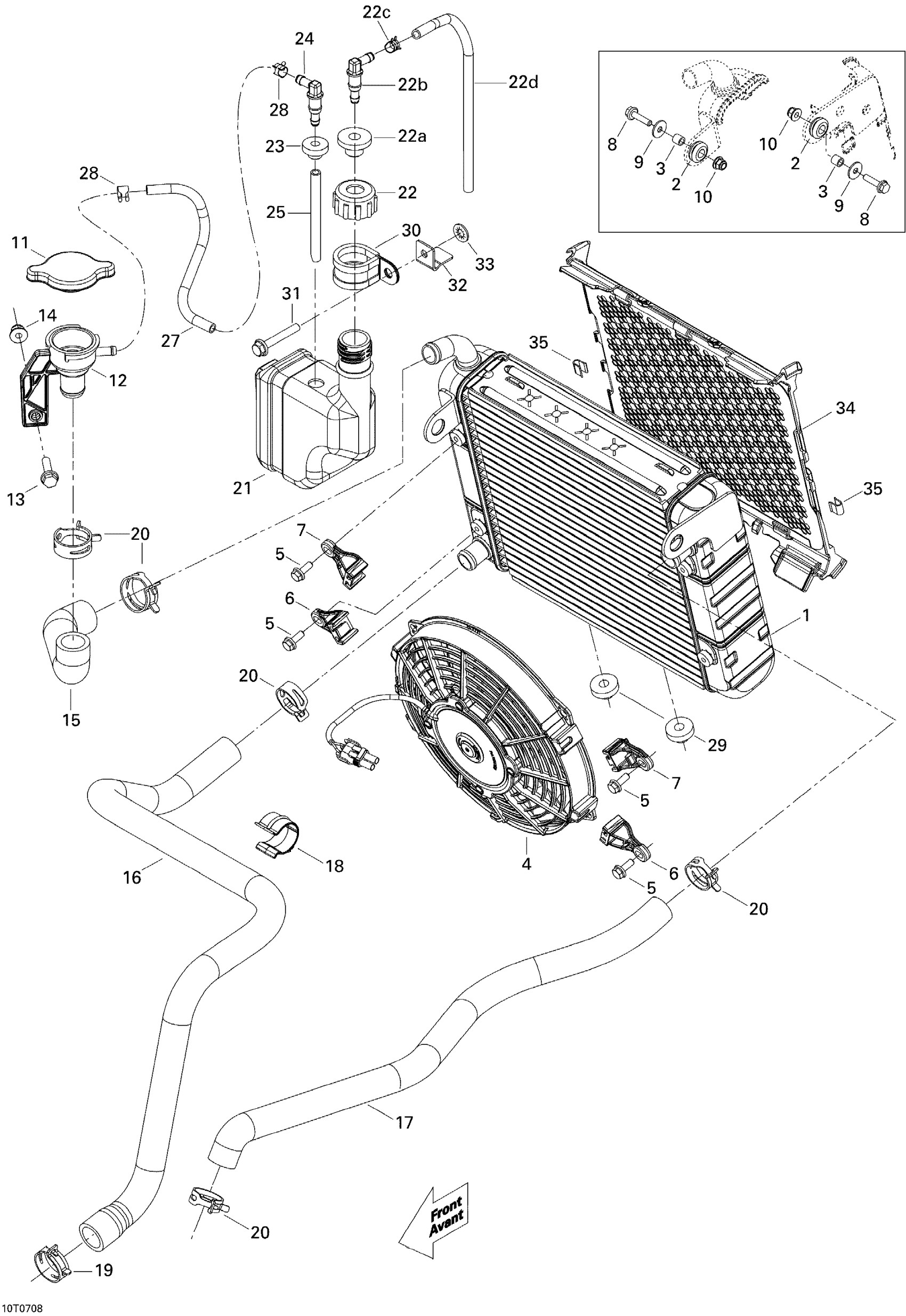

Can-Am Renegade 800 EFI, 2007 01- Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200411

Unavailable

2

Grommet

709000582

$4.69

3

Bushing

293900105

$7.65

4

Fan

709200124

$279.99

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

6

FAN SUPPORT - Call your local BRP dealership

709200125

Unavailable

7

FAN SUPPORT - Call your local BRP dealership

709200126

Unavailable

8

Hex. Flange Screw M6 X 25

207662544

$0.64

9

Flat Washer

250200082

$0.42

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Radiator Pressure Cap

709200207

$25.49

12

Filler Neck

709200179

$18.49

13

Hex. Flange Screw M6 X 25

207662544

$0.64

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

FILLER NECK HOSE - Call your local BRP dealership

709200180

Unavailable

17

INLET HOSE - Call your local BRP dealership

709200182

Unavailable

18

Retainer

275500526

$4.55

16

Outlet Radiator Hose

709200181

Unavailable

19

Norma Spring Clamp

293650108

$4.12

20

Norma Spring Clamp

293650109

$4.12

21

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

22

Cap

709200586

$11.11

22a

Grommet

293830136

$10.07

22b

Male Connector

414580700

$4.12

22c

Spring Clamp

414554800

$0.88

22d

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

Grommet

709200285

$9.69

24

Elbow Male Connector

414580600

$4.23

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

27

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

28

Spring Clamp

414554800

$0.88

29

Grommet

709200285

$9.69

30

Hose Anchor

709200036

$11.12

31

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

32

BRACKET - Call your local BRP dealership

709200196

Unavailable

33

Push Nut

732610072

$2.19

34

RADIATOR PROTECTOR - Call your local BRP dealership | Includes 34, 35

709200187

Unavailable

35

Clip

414479100

$1.90
