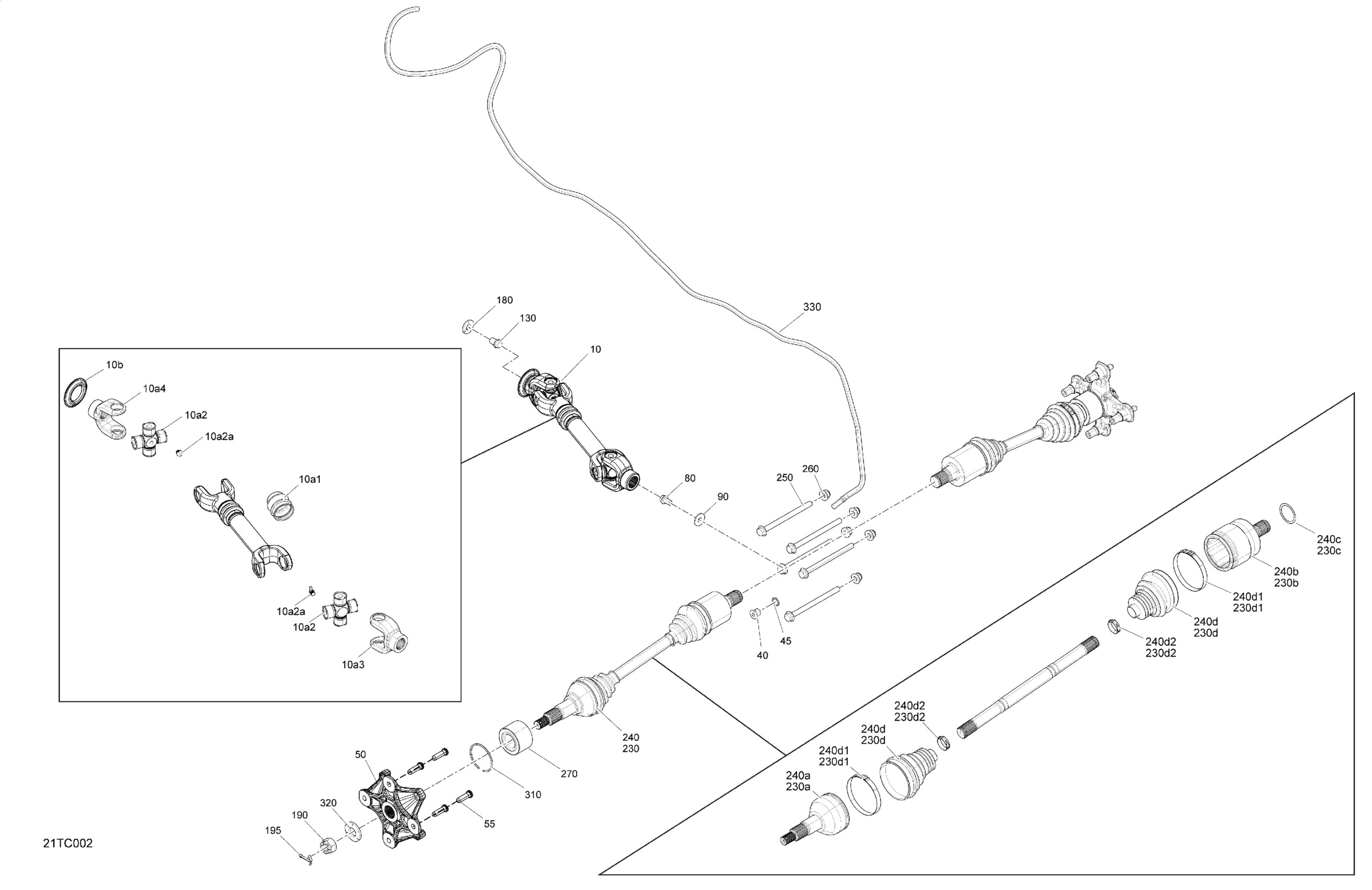

Can-Am 012 - Outlander MAX 1000R EFI - LTD - (5WPB) North America, 2023 04- Drive - Rear - Common Parts Diagram

Shaft Ass'y Kit | Includes 10 to 10b

703501017

$259.49

Rubber Boot

715900118

$14.30

Universal Joint Ass'y | T3

703500846

$59.49

Grease Fitting | T3

715900295

$5.24

Yoke

715900499

$24.99

Yoke

715900438

$24.99

Protector

705501123

$7.55

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub

705503257

$101.49

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M12 X 16

250001039

$2.11

Conical Spring Washer M12

250200005

$3.27

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

RH CV Joint | All Except Package XMR

705502711

$243.99

CV Joint

705501776

$259.49

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

LH CV Joint | All Except Package XMR

705502710

$243.99

CV Joint

705501776

$259.49

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

Hex. Flange Screw M10 X 135

250001041

$5.59

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
