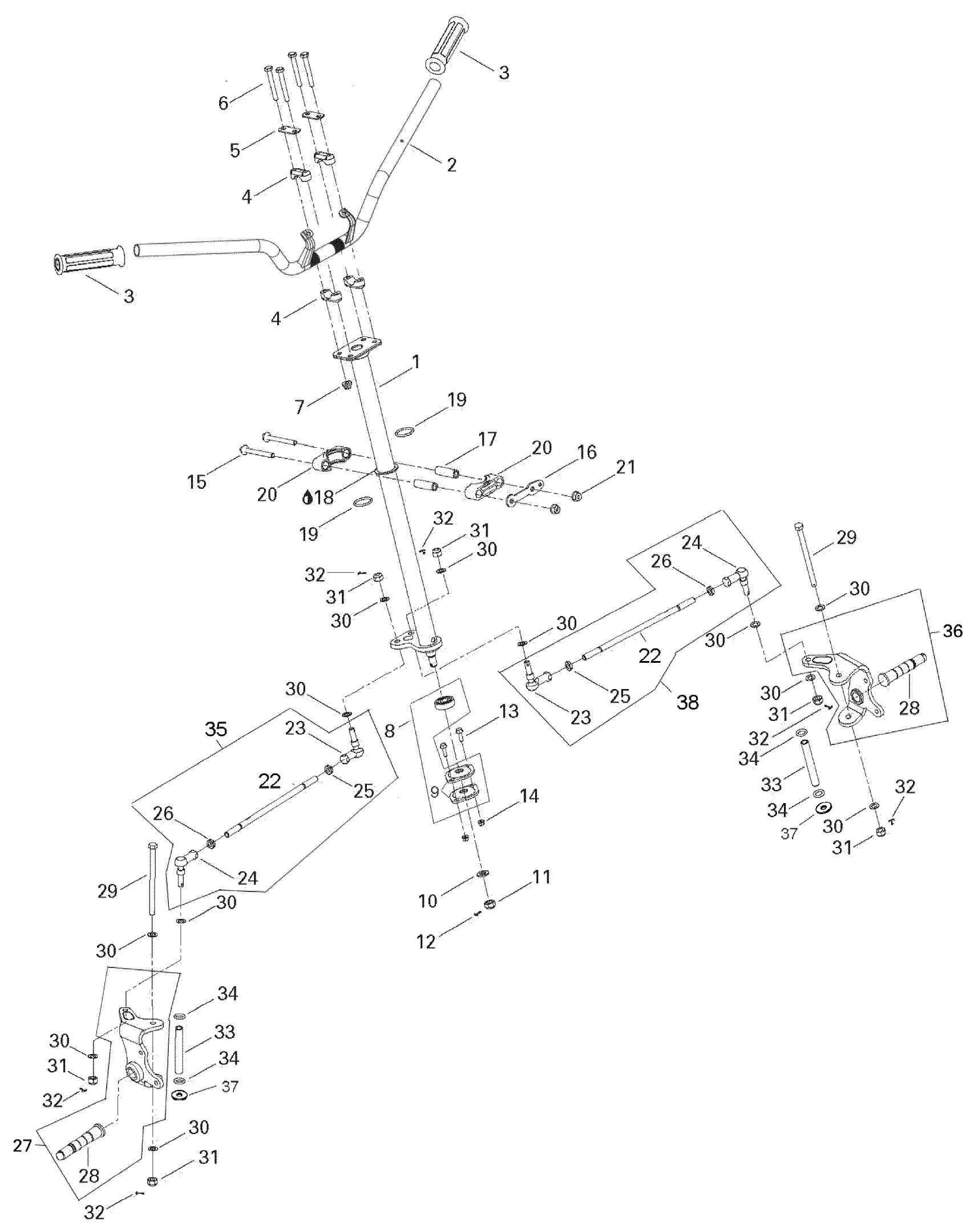

Can-Am Rally 175, 2007 07- Steering System Diagram

MAIN TUBE - Call your local BRP dealership

709400231

Unavailable

BAR - Call your local BRP dealership

A53100179001

Unavailable

GRIP - Call your local BRP dealership

A53165179000

Unavailable

Steering Support

709400919

$22.49

Stiffner

709400509

$4.69

Hex. Screw M8 X 55

207085544

$1.68

Hex. Elastic Flange Nut M8

233281416

$1.48

Ball Bearing

709400439

$19.49

Not Available As Spare Part - Friction Washer

Unavailable

Flat Washer 12 mm

234021410

$0.72

Hexagonal Nut M12

A9035012000G

$6.67

Cotter Pin

211400017

$0.33

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M8 X 70

207687044

$7.41

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

BUSHING - Call your local BRP dealership

709400072

Unavailable

Synthetic Grease, 400 G

293550010

Unavailable

O-Ring

293300068

$7.65

Half Bushing

709400471

$14.30

Hex. Flange Elastic Nut M8

233281414

$1.47

Tie Rod

715900006

Unavailable

RH Ball Joint

709400148

Unavailable

LH Ball Joint

709400149

Unavailable

RH Threaded Hex. Jam Nut M10

732610010

$0.74

LH Threaded Hex. Jam Nut M10

250100016

$0.74

RH Knuckle

709400109

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

AXLE SCREW M10 X 145 - Call your local BRP dealership

709400150

Unavailable

Washer

503175800

$3.28

Elastic Flange Nut M10

232501416

$1.48

Cotter Pin

211400013

$0.37

Pivot Bushing

709400110

Unavailable

O-RING - Call your local BRP dealership

414549700

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

LH Knuckle

709400108

Unavailable

WASHER - Call your local BRP dealership

A941051030008

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable
