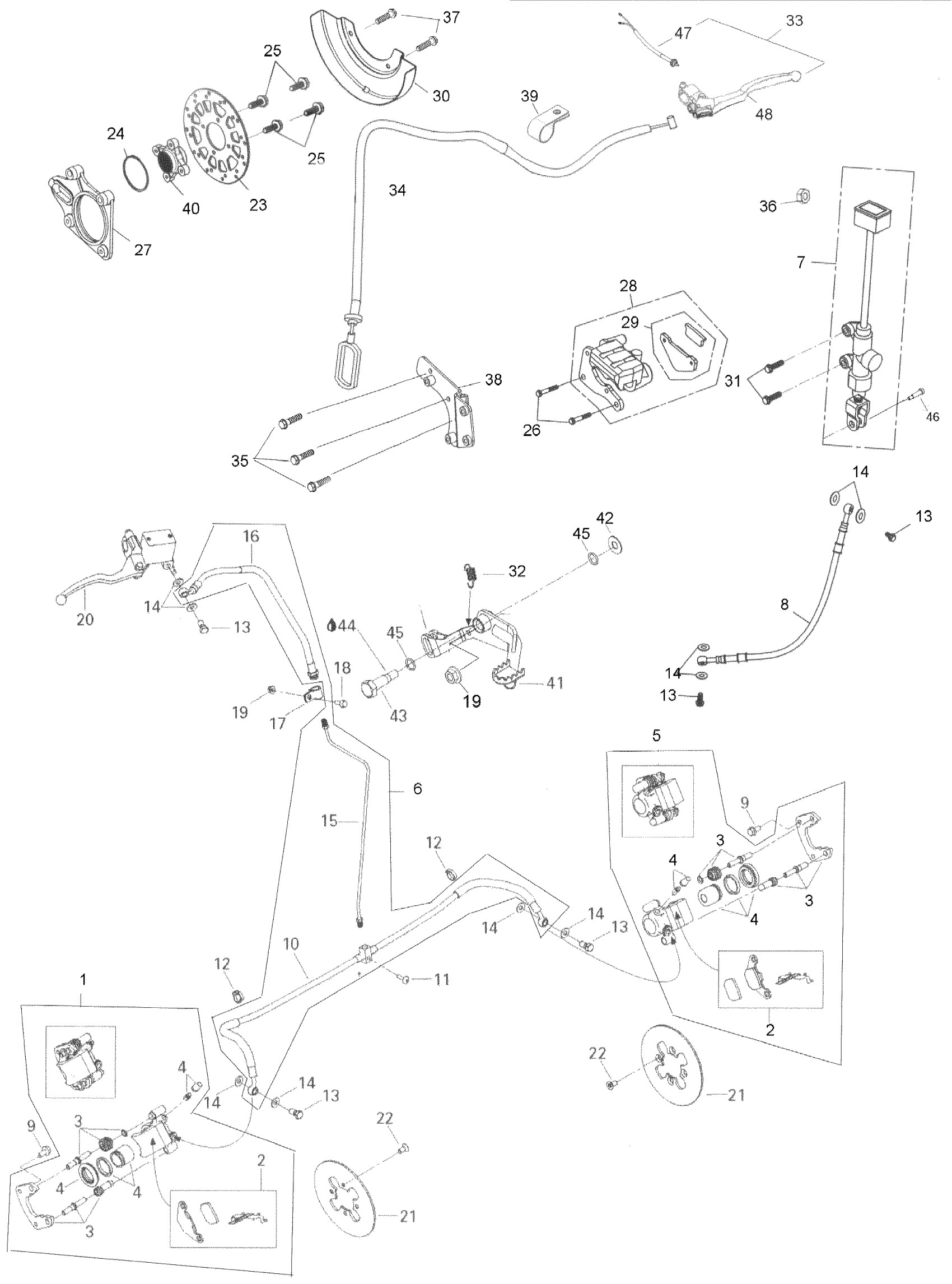

Can-Am Rally 175, 2007 06- Hydraulic Brakes Diagram

#

Description
Price

1

RH Caliper Ass’y

A45000179000

Unavailable

2

FRONT BRAKE PAD SET - Call your local BRP dealership

A45120179000

Unavailable

3

BOOT KIT - Call your local BRP dealership

705600286

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

LH Caliper Ass’y | Includes 2 To 5

705600365

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

A4350017900A

Unavailable

8

Rear Brake Hose

A4346017900A

Unavailable

9

Hex. Flange Screw M8 X 16, Scotch Grip

A9600008016GL

Unavailable

10

Flexible Hose

A45570179000

Unavailable

11

SOCKET SCREW M6 X 35 - Call your local BRP dealership

A9200306035

Unavailable

12

Tie-Rap 180 mm

414115200

$0.11

13

Banjo Bolt

A45456107000

Unavailable

14

COPPER WASHER - Call your local BRP dealership

A941031015012

Unavailable

15

Vertical Tube

A45560179000

Unavailable

16

Brake Handle Hose

A45550179000

Unavailable

17

Open Clamp

705600040

$13.24

18

Hex. Flange Screw M6 X 20

207662044

$2.00

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

MASTER CYLINDER - Call your local BRP dealership

A45500179000

Unavailable

21

FRONT BRAKE DISC - Call your local BRP dealership

705600223

Unavailable

22

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

23

Rear Brake Disc

A45015197000

Unavailable

24

CIRCLIP - Call your local BRP dealership

A945117800S

Unavailable

25

SCREW-HEX.FLANGE - Call your local BRP dealership

A45016146000

Unavailable

26

SCREW-HEX.FLANGE M10 X 28 - Call your local BRP dealership

A960001002814GL

Unavailable

27

REAR AXLE ADJUSTER BRACKET - Call your local BRP dealership

A52120179000

Unavailable

28

Rear Caliper Ass'y

A43000179000

Unavailable

29

REAR BRAKE PAD SET - Call your local BRP dealership

A45120168000

Unavailable

30

Rear Brake Disc Cover

A45018179000

Unavailable

31

Hex. Flange Screw M8 X 25

207682544

$1.35

32

BRAKE PEDAL SPRING - Call your local BRP dealership

705600288

Unavailable

33

LH BRAKE LEVER ASS'Y - Call your local BRP dealership

A53179179000

Unavailable

34

Rear Brake Cable

A43470179000

Unavailable

35

Socket Head Screw M8 X 16

205081660

Unavailable

36

NYLON NUT M6 - Call your local BRP dealership

A9035006000

Unavailable

37

Hex. Flange Screw

207681244

$0.83

38

REAR MASTER CYLINDER BRACKET - Call your local BRP dealership

A43502179000

Unavailable

39

Open Clamp

A11352179000

Unavailable

40

BUSHING - Call your local BRP dealership

A42106179000

Unavailable

41

Brake Pedal

A46500179000

Unavailable

42

WASHER - Call your local BRP dealership

A941051225010

Unavailable

43

PIVOT - Call your local BRP dealership

705600201

Unavailable

44

Synthetic Grease, 400 G

293550010

Unavailable

45

O-RING - Call your local BRP dealership

293300053

Unavailable

46

SOCKET HEAD SCREW M6 X 41 - Call your local BRP dealership

A9120006041

Unavailable

47

LH.BRAKE SWITCH WIRE - Call your local BRP dealership

A35340155000

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable
