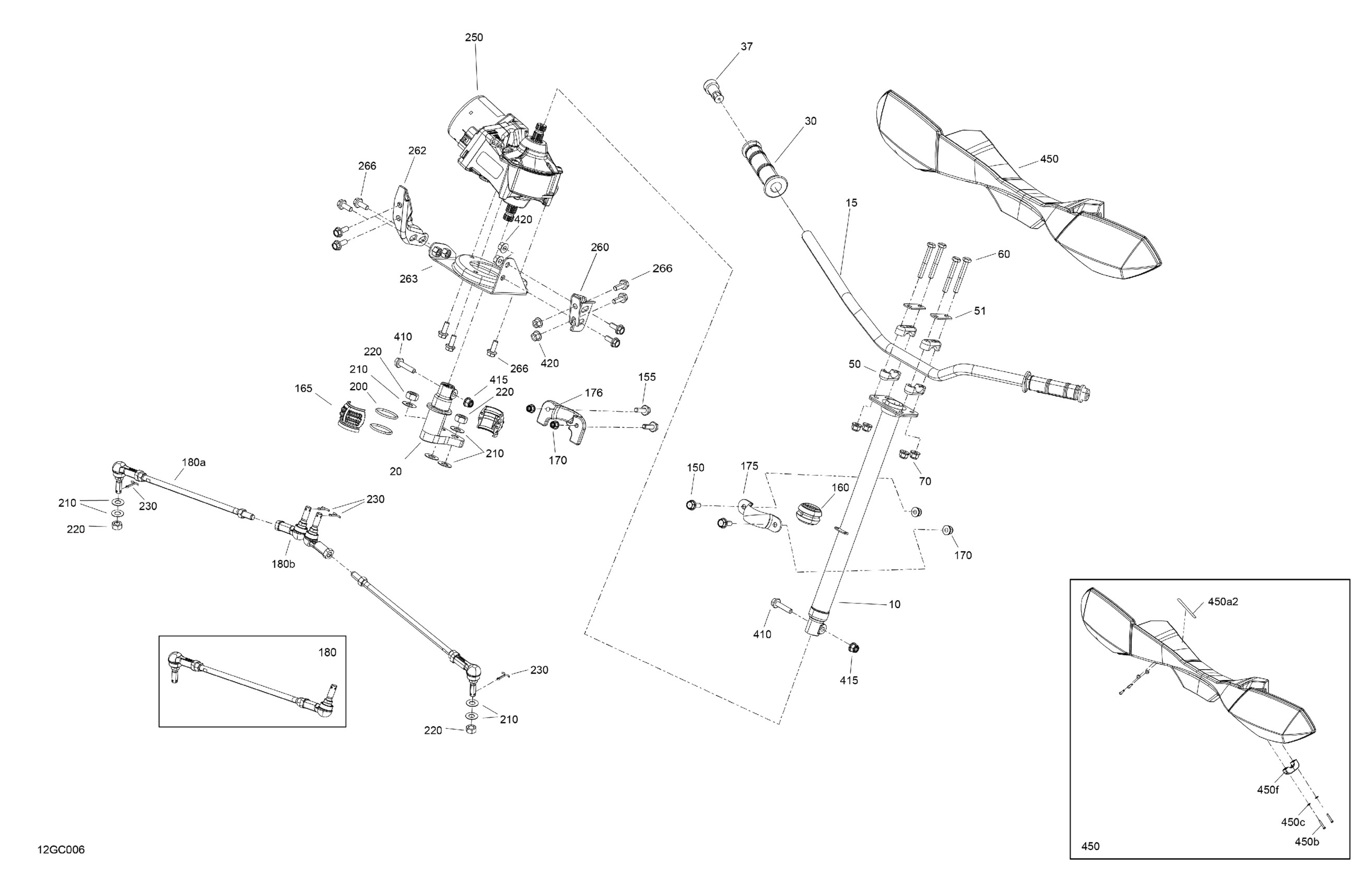

Can-Am 005 - Outlander 570 EFI - XT - (2UPA-2UPB) North America, 2023 03- Mechanic - Steering Diagram

Upper Steering Axle

709402798

$184.99

Deep Black, Handlebar

709402872

$56.99

Pitman Arm | Model With DPS Except XMR

703501160

$43.99

Handle Grip

709400493

$14.83

End Piece

709400449

$8.49

Steering Support

709401799

$22.49

Stiffner

709400509

$4.69

Hex. Screw M8 X 60

207086046

$2.85

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682544

$1.35

Spherical Bushing

709402169

$7.65

Spherical Half Bushing

709400783

$7.65

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Column Attachment

709400827

$1.09

Column Attachment

709401428

$38.99

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

Not Available As Spare Parts

XXX

Unavailable

RH Ball Joint

709402302

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Hex Nut M12

250100239

$2.00

Cotter Pin

211400013

$0.37

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

LH Power Steering Bracket | Model With DPS

709402184

$18.49

RH Bracket | Model With DPS

709402185

$28.99

Power Steering Support | Model With DPS

709401743

$19.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Nut

233081436

$2.00

ATV Handlebar Air Deflector Kit | Includes 450 to 450f

709402845

$98.49

DPS Decal

704902966

$14.49

Hex. Flange Screw K40 X 25

241142560

$2.64

Flat Washer | XT

211200035

$0.55

Mounting Clamp

517308718

$12.49
