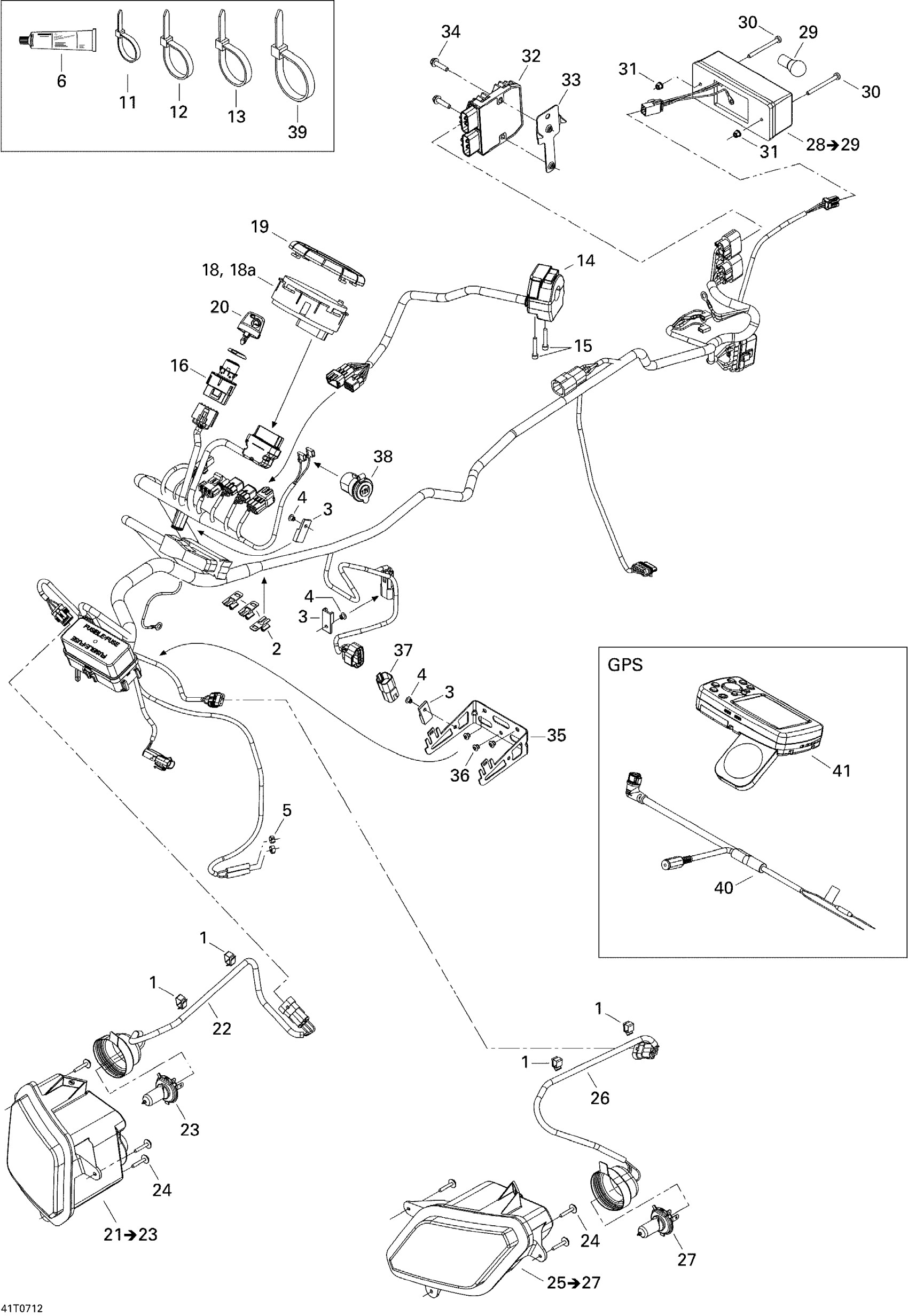

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 10- Electrical Accessories Diagram

Clip

414227300

$1.67

Housing Support

515175283

$9.19

Clip

270000141

$11.49

Pop Rivet 3/16"

390402400

$0.35

Oetiker Clamp

293650100

$3.38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Multi-Fonction Handle

710000791

$116.49

Socket Head Screw M5 X 35

205053588

$1.90

Ignition Switch | Includes 16 to 17

710002324

$79.49

SPEEDOMETER - Call your local BRP dealership

710001060

Unavailable

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

TRIM RING - Call your local BRP dealership

710000353

Unavailable

Black, Electronic Key

710000817

$63.49

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

Bulb, 12V 35/35W

710000871

$34.99

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

Bulb, 12V 35/35W

710000871

$34.99

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$95.99

Bulb

520000758

$9.10

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

Hex. Flange Elastic Nut M5

233251414

$1.04

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

Pop Rivet 3/16"

390402400

$0.35

Diagnostic Connector

278002704

$19.49

Outlet Power Kit, 12 Volts

861507200

$36.99

Tie-rap 627 mm

293750041

$0.93

GPS HARNESS - Call your local BRP dealership

710001003

Unavailable

GPS UNIT - Call your local BRP dealership

710000981

Unavailable
