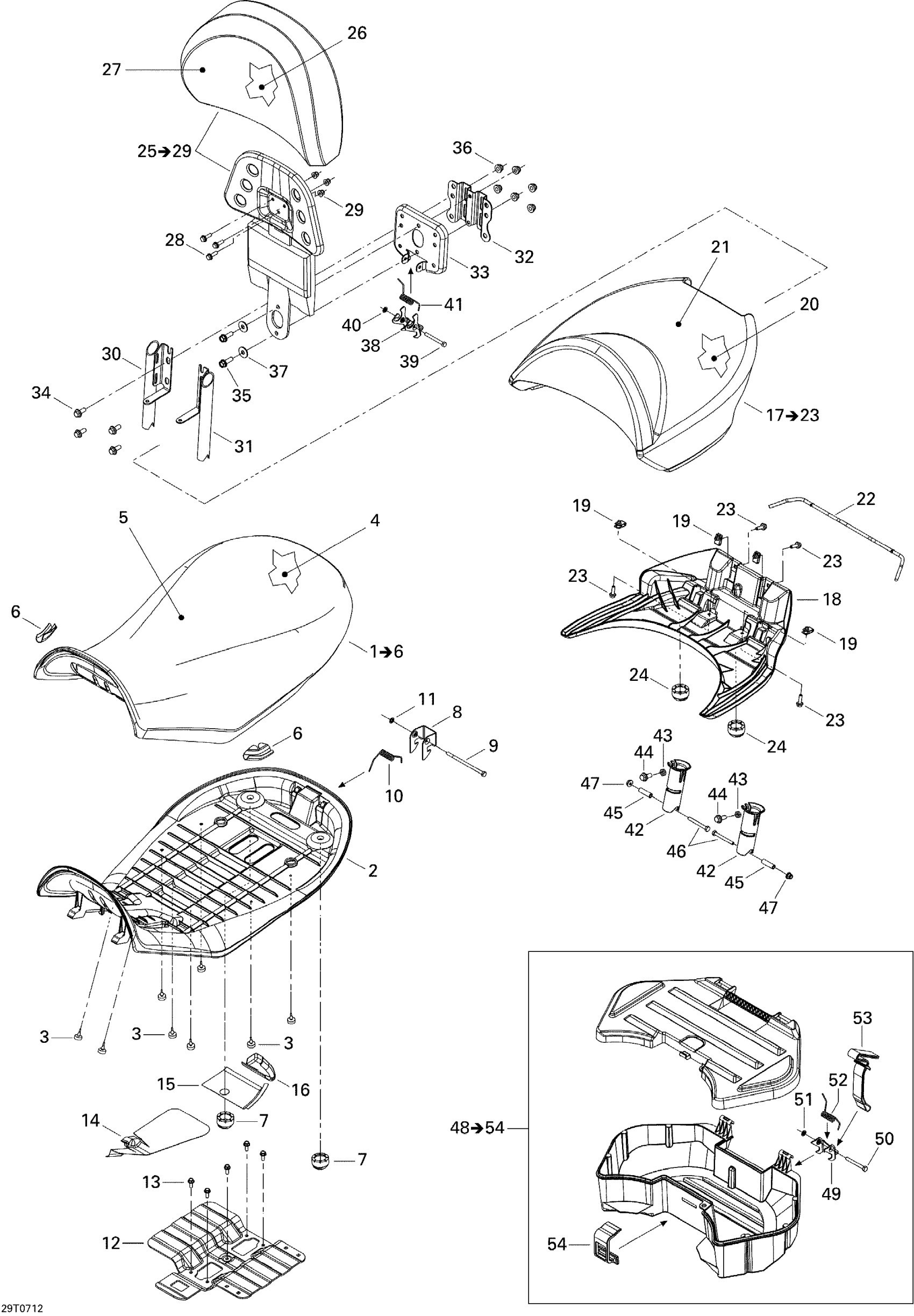

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 09- Seat Diagram

#

Description
Price

1

SEAT ASSEMBLY - Call your local BRP dealership | Includes 1 to 6

708000635

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$4.19

4

Not Available As Spare Part - Friction Washer

Unavailable

5

SEAT COVER - Call your local BRP dealership

708000504

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Bumper Rubber

708000760

$10.49

8

Latch, Black

708000144

$11.99

9

Hex. Screw M6 X 110

230061044

$1.48

10

Spring

708000369

$9.19

11

Push Nut

732610072

$2.19

12

Seat Reinforcement

708000512

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.90

14

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

15

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

16

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

17

Rear Seat Ass'y | Includes 17 to 23

708000498

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Panel Nut M6 X 1.0

250100198

$2.11

20

Not Available As Spare Part - Friction Washer

Unavailable

21

SEAT COVER - Call your local BRP dealership

708000499

Unavailable

22

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

23

Hex. Flange Screw M6 X 20

207662044

$2.00

24

Bumper Rubber

708000760

$10.49

25

Backrest Ass'y | Includes 25 to 29

708000500

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Backrest Cover

708000501

Unavailable

28

Hex. Flange Screw M6 X 20

207662044

$2.00

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

31

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

32

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

33

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

34

Hex. Flange Screw M8 X 20

207682044

$1.15

35

Hex. Flange Screw M8 X 25

207682544

$1.35

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Flat Washer 8 mm

234082410

$1.47

38

LATCH - Call your local BRP dealership

708000448

Unavailable

39

Hex. Screw M6 X 55

207065544

$2.11

40

Push Nut

732610072

$2.19

41

Spring

708000369

$9.19

42

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

43

Hex. Jam Nut M8

232180600

$0.67

44

Hex. Screw M8 X 20

207182044

$0.74

45

INNER BUSHING - Call your local BRP dealership

708000462

Unavailable

46

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

48

BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47

708200119

Unavailable

49

LATCH - Call your local BRP dealership

708200066

Unavailable

50

Hex. Screw M6 X 55

207065544

$2.11

51

Push Nut

732610072

$2.19

52

Spring

708000369

$9.19

53

BELT - Call your local BRP dealership

510004495

Unavailable

54

Cover Latch

708200120

$15.99
