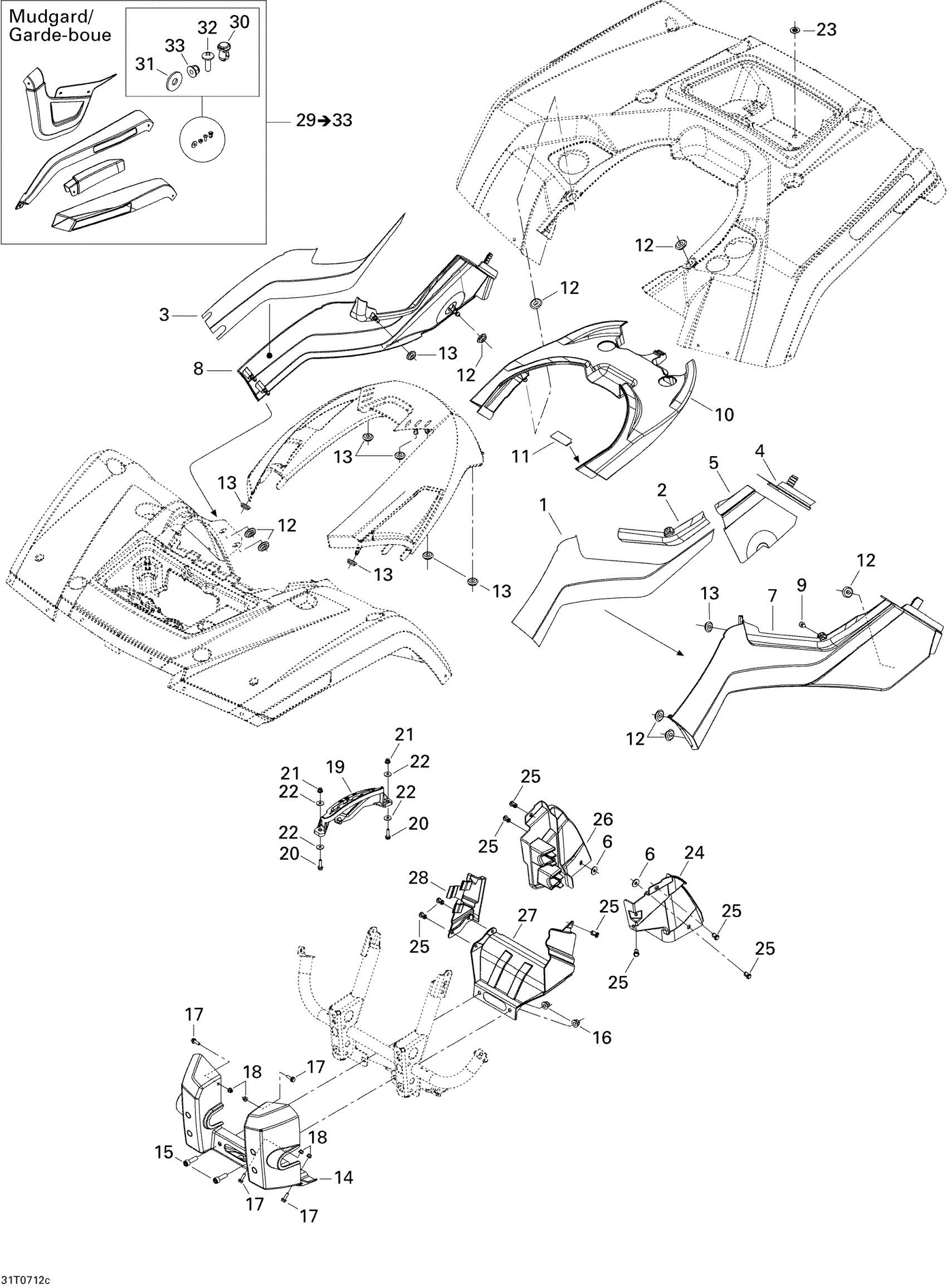

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 09- Body And Accessories 3 Diagram

#

Description
Price

1

Reflective Sheet

705005620

$12.99

2

REFLECTIVE SHEET - Call your local BRP dealership

705005617

Unavailable

3

REFLECTIVE SHEET - Call your local BRP dealership

705005623

Unavailable

4

LH REFLECTIVE SHEET - Call your local BRP dealership

705002183

Unavailable

5

REFLECTIVE SHEET - Call your local BRP dealership

705005621

Unavailable

6

Washer

506151252

$3.17

7

PANEL_BODY LH B-259 - Call your local BRP dealership

705002967

Unavailable

8

RH.PANEL - Call your local BRP dealership

705002972

Unavailable

9

Rubber Bumper

293830005

$8.09

10

STORAGE TRAY, GRIS - Call your local BRP dealership

705002323

Unavailable

11

REFLECTIVE SHEET - Call your local BRP dealership

705002185

Unavailable

12

Oval Washer

705005156

$4.97

13

Grommet

705003264

$4.09

14

GUARD PLATE - Call your local BRP dealership

705003496

Unavailable

15

Socket Screw M10 X 35

205003544

$1.69

16

Hex. Flange Elastic Nut M10

233201414

$1.58

17

Hex. Flange Screw M6 X 20

207662044

$2.00

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Lever Indicator

705003838

$28.99

20

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Flat Washer

224061201

$1.37

23

CAP - Call your local BRP dealership

414859400

Unavailable

24

LH INNER FENDER - Call your local BRP dealership

705003634

Unavailable

25

Tuflok Plastic Rivet

293150230

$1.47

26

RH INNER FENDER - Call your local BRP dealership

705002124

Unavailable

27

LH DEFLECTOR - Call your local BRP dealership

705002988

Unavailable

28

RH DEFLECTOR - Call your local BRP dealership

705002135

Unavailable

29

Mudguard Extension Kit | Includes 29 to 33

715000533

$191.49

30

Tuflok Plastic Rivet

293150230

$1.47

31

Flat Washer 8 mm

234082410

$1.47

32

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
