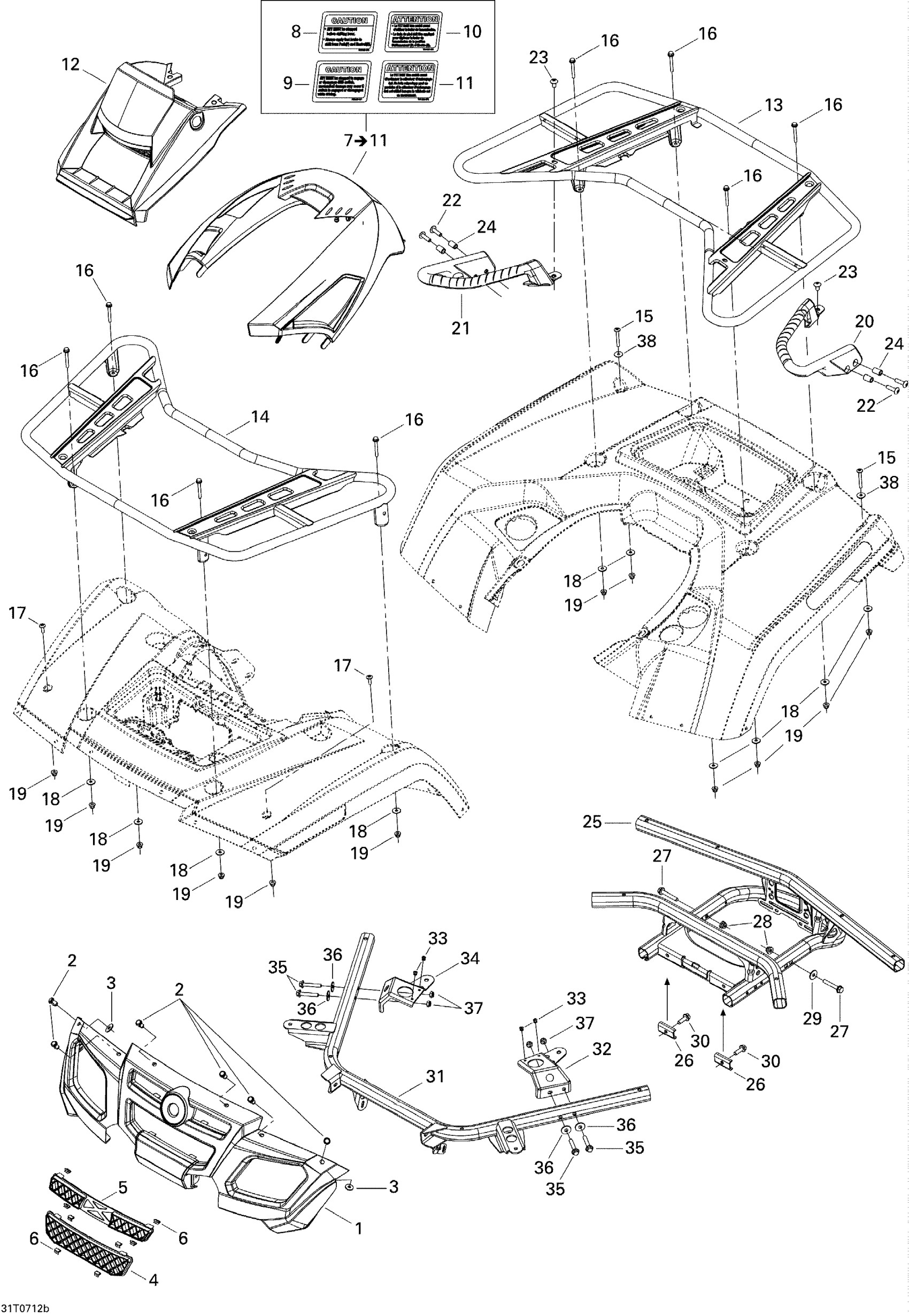

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 09- Body And Accessories 2 Diagram

#

Description
Price

1

Front Fascia, Gray | Steel Gray

705002315

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

Washer

506151252

$3.17

4

LOWER GRILL - Call your local BRP dealership

705002283

Unavailable

5

Upper Grille

705002284

Unavailable

6

Clip | Europe Models

517306751

$2.09

7

Central Panel Kit, Gray | Includes 7 to 10, Steel Gray

703500665

Unavailable

7

CENTRAL PANEL KIT, GRAY - Call your local BRP dealership | Includes 7 to 10, Steel Gray, Europe

703500675

Unavailable

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

10

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

11

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

12

Dashboard

705003490

$46.99

12

Dashboard | Europe

705002210

Unavailable

13

Rear Luggage Rack

705002617

$275.49

14

Front Luggage Rack

705002616

$275.49

15

Torx Truss Screw M6 X 50

250000749

$3.17

16

Hex. Flange Screw M6 X 50

207665044

$4.12

17

Torx Screw M6 X 20

250000722

$1.68

18

Flat Washer

224061201

$1.37

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

LH Handle

705001944

Unavailable

21

RH Handle

705001945

Unavailable

22

Hex Torx Truss M8 X30

250000745

$3.17

23

Torx Truss Screw M8 X 16

250000746

$3.38

24

Bushing

705002153

$11.99

25

Rear Support

705003656

$275.49

26

U Reinforcement

705003647

$8.19

27

Hex. Flange Screw M8 X 50

207685044

$1.69

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Flat Washer 8 mm

234082410

$1.47

30

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

31

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

32

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

33

Pop Rivet 3/16"

390402300

$0.75

34

RH Anchor Plate

705002997

$18.49

35

Hex. Flange Screw M8 X 45

207684544

$3.80

36

Flat Washer 8 mm

234082410

$1.47

37

Hex. Elastic Stop Nut M8

232581414

$0.56

38

Flat Washer

250200040

$1.90
