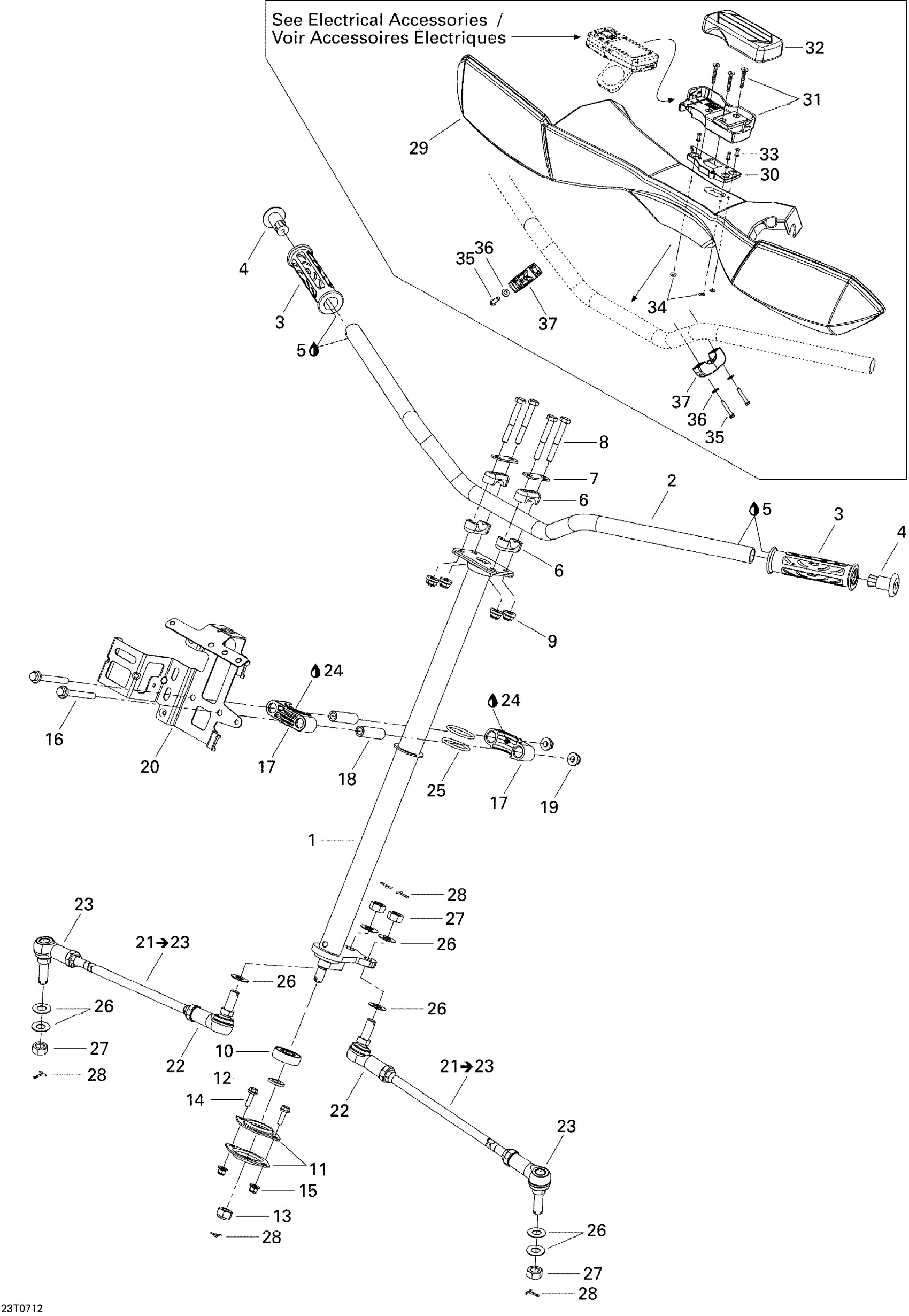

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400971

$184.99

2

Black, Handle Bar

709401240

$69.99

3

Grey, Handle Grip

709400443

$13.77

4

End Piece

709400449

$8.49

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$22.49

7

Stiffner

709400509

$4.69

8

Hex. Screw M8 X 60

207086046

$2.85

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Hex. Flange Elastic Nut M12

250000047

$1.90

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Screw M8 X 70

207687044

$7.41

17

Half Bushing

709400471

$14.30

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

22

Ball Joint, RH Threads

709400487

$52.99

23

LH Ball Joint

709402303

$36.99

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$7.65

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

Handle Bar Protector | XT

709400822

$90.99

30

GPS SUPPORT BASE - Call your local BRP dealership

709400446

Unavailable

31

GPS Support

709400448

Unavailable

32

GPS SUPPORT PROTECTOR - Call your local BRP dealership

709400450

Unavailable

33

Rivet 1/8"

293150016

$0.40

34

Flat Washer M3, Stainless

234032600

$0.55

35

Hex. Flange Screw K40 X 25

241142560

$2.64

36

Flat Washer | XT

211200035

$0.55

37

U-Clamp | XT

517303264

$11.99
