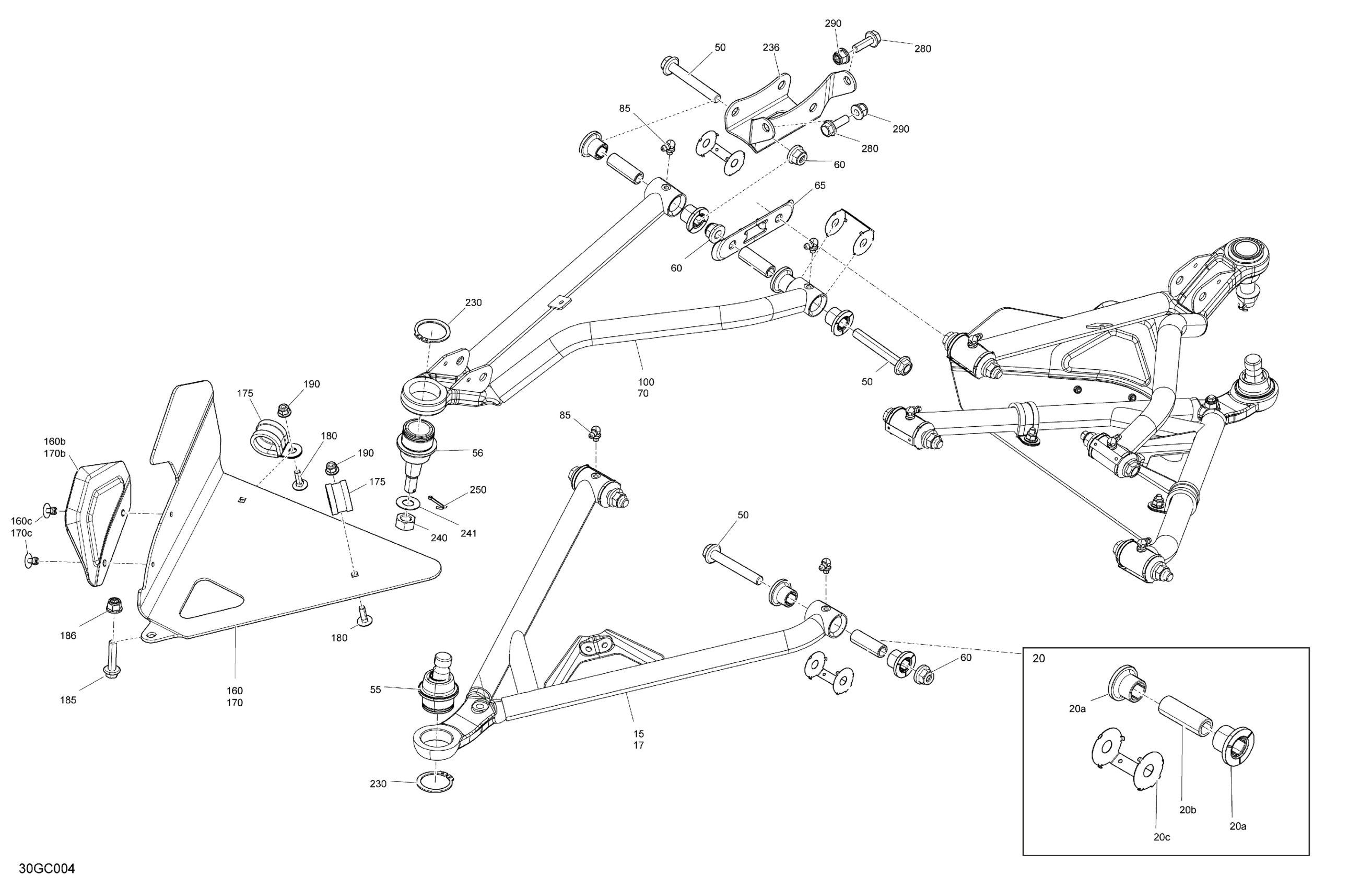

Can-Am 003 - Outlander 450 EFI - Mossy Oak Edition - North America, 2023 05- Suspension - Front Components Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$158.99

17

RH Lower Suspension Arm

706204640

$158.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

20a

Not Available As Spare Parts

XXX

Unavailable

20b

Not Available As Spare Parts

XXX

Unavailable

20c

Not Available As Spare Parts

XXX

Unavailable

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202045

$35.99

56

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Front Suspension Cross Plate

706200998

$5.09

70

RH Upper Suspension Arm

706204642

$158.99

85

Grease Fitting 90°

293550056

$1.15

100

LH Upper Suspension Arm

706204641

$158.99

160

A Arm Protector Kit | Includes 1600 to 1600c

715001667

$165.99

160b

RH PROTECTOR - Call your local BRP dealership | Hunting Edition

706201186

Unavailable

160c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

170

Not Available As Spare Parts

XXX

Unavailable

170b

LH PROTECTOR - Call your local BRP dealership | Hunting Edition

706201185

Unavailable

170c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

175

Hose Anchor

709200036

$11.12

180

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

185

Hex. Flange Screw M8 X 35

207683544

$1.69

186

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Hex. Flange Elastic Nut M6

233261494

$1.58

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682544

$1.35

290

Hex. Flange Elastic Nut M8

233281414

$1.47
