Description

Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Flat Washer

224061121

$0.53

6

Lock Nut

420842041

$0.09

7

Gasket

420430126

$41.49

8

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

9

Slider Shoe Set

420281296

$65.49

10

Roller Axle

417223257

$6.99

11

Roller

417223767

$11.59

12

Outer Haft

420280467

$329.99

13

Centrifugal Lever Set | Includes 14a to 17

420248558

$180.99

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Compression Spring, Drive Pulley

420238610

$26.49

18

Seat Spring

420627578

$35.99

19

Drive Pulley Clutch

420257195

$114.99

20

Ball Bearing

420632377

$49.99

21

Retaining Ring

420245951

$5.31

22

Inner Half

420280374

$339.99

23

Spring

420239134

$3.06

24

Spring Sleeve

420229577

$18.49

25

Thrust Washer

420627920

$7.51

26

Spring Washer

420627768

$21.99

27

Hex. Screw M12 X 140

420641859

$24.99

28

Cam

420280701

$153.49

29

Driven Pulley Shaft

420220913

$134.99

30

Compression Spring

420238176

$35.99

31

Inner Half Ass'y

420280786

$308.49

32

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

33

Ball Bearing

420932421

$28.49

34

Torque Gear

420660124

$23.49

35

Retaining Ring

420245911

$5.31

36

V-Belt

422280366

$179.99

37

Thrust Washer

420627590

$16.99

38

Stud Screw M10 X 136

420441900

$25.99

39

Nut M10

420242097

$2.51

40

Hexagonal Nut M10

420242403

$1.90

41

Variator Cover

420611397

$219.99

42

Hex Screw M6 X 30

420440568

$8.58

43

Drain Plug Kit

707001179

$9.63

44

Not Available As Spare Parts

XXX

Unavailable

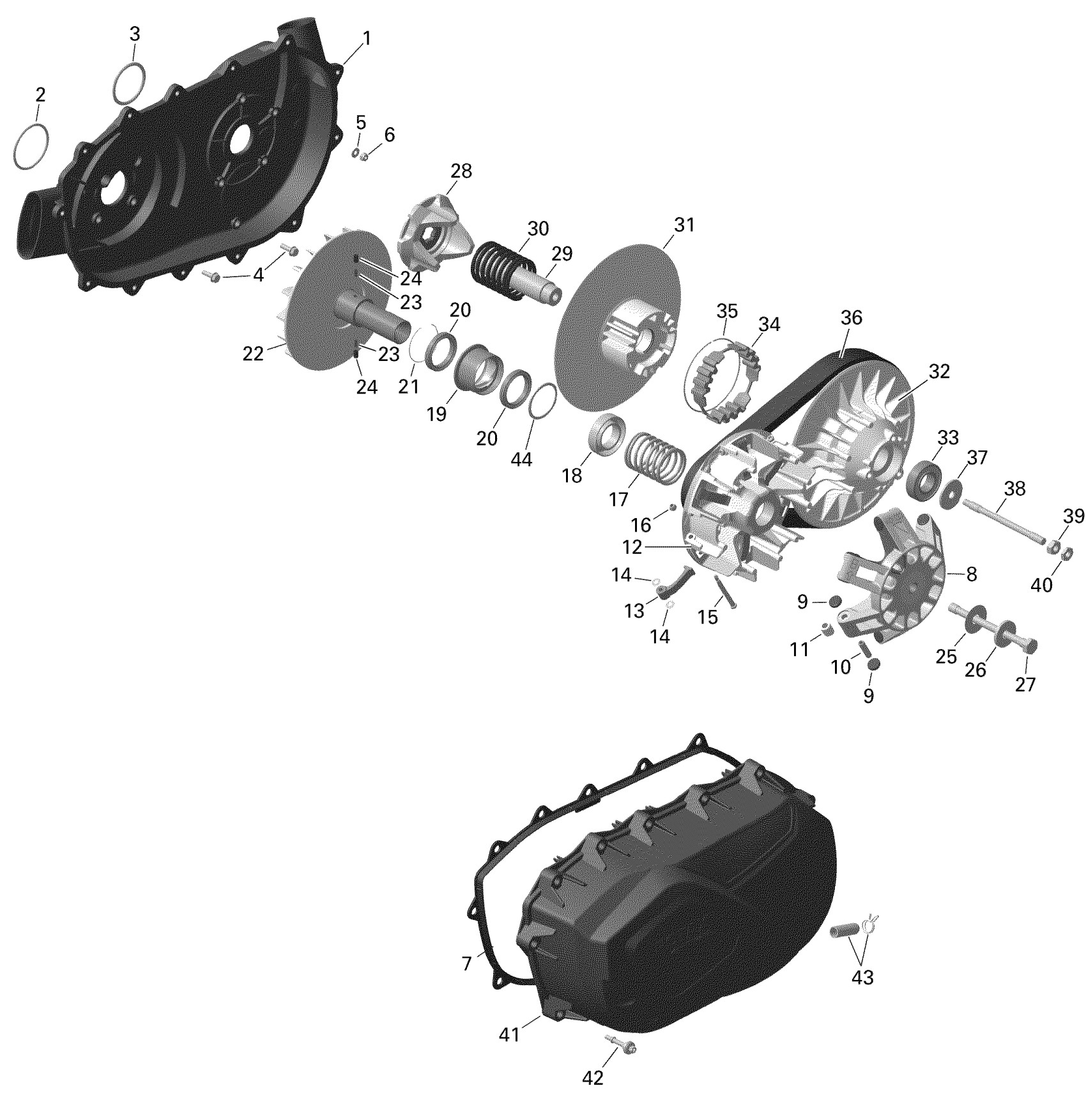

Can-Am 007 - Outlander T MAX 6X6 - 650 EFI - XT - T Regulation, 2022 01- ROTAX - Transmission - A Diagram

CVT Air Guide

O-Ring

O-Ring

Hex.Screw M6 X 20

Flat Washer

Lock Nut

Gasket

Governor Cup Ass'y | Includes 6 to 9

Slider Shoe Set

Roller Axle

Roller

Outer Haft

Centrifugal Lever Set | Includes 14a to 17

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Compression Spring, Drive Pulley

Seat Spring

Drive Pulley Clutch

Ball Bearing

Retaining Ring

Inner Half

Spring

Spring Sleeve

Thrust Washer

Spring Washer

Hex. Screw M12 X 140

Cam

Driven Pulley Shaft

Compression Spring

Inner Half Ass'y

Outer Half Pulley Ass'y | Includes 27 to 32

Ball Bearing

Torque Gear

Retaining Ring

V-Belt

Thrust Washer

Stud Screw M10 X 136

Nut M10

Hexagonal Nut M10

Variator Cover

Hex Screw M6 X 30

Drain Plug Kit

Not Available As Spare Parts
