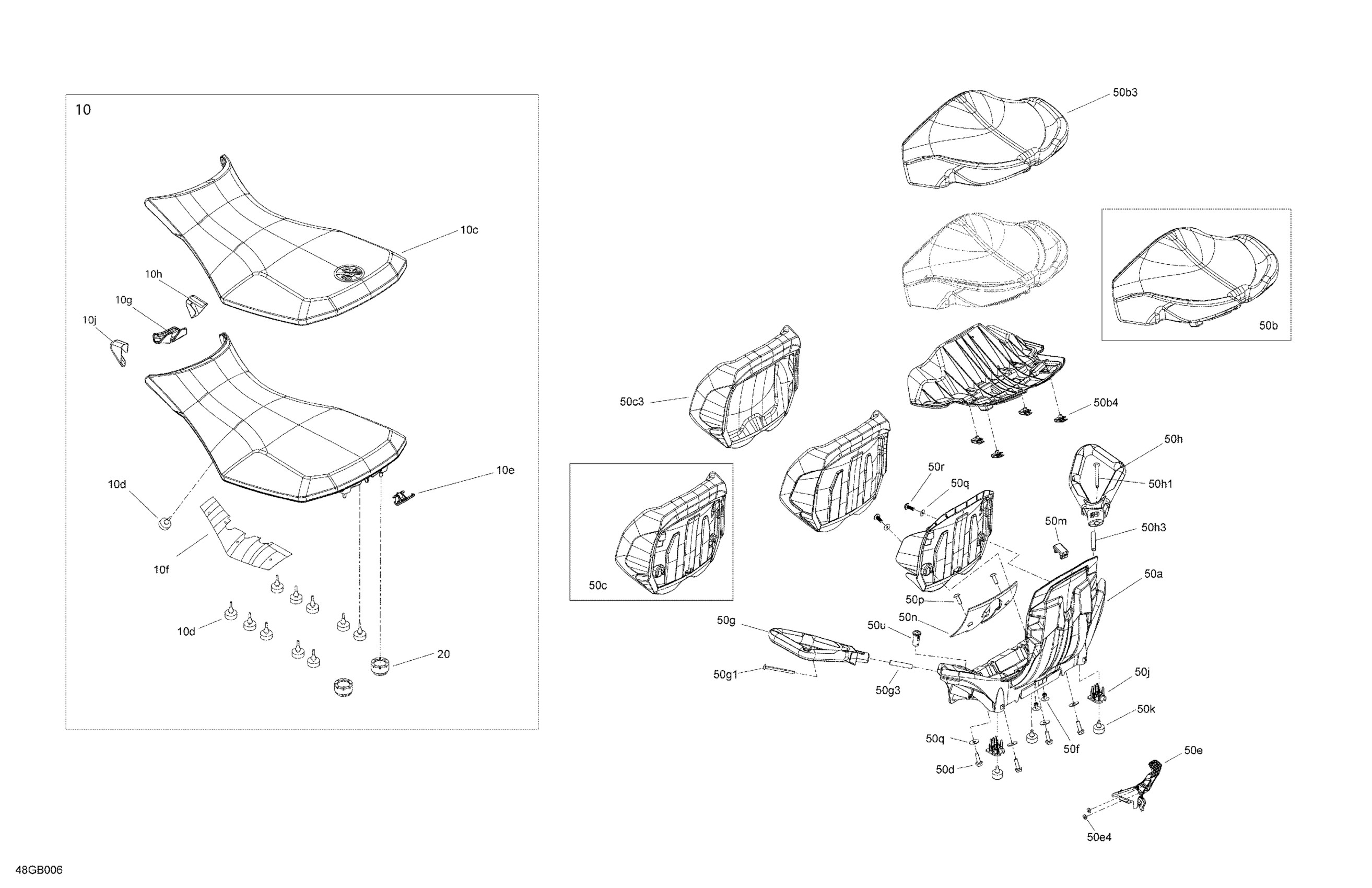

Can-Am 005 - Outlander T MAX 6X6 - 450 EFI - XU+ - T Regulation, 2022 07- Body - Seat Diagram

Description

Price

Seat Ass'y | Package PRO

708002493

$439.99

10c

Seat Cover | OUT-MAX Black

708001972

$179.99

10d

Rubber Stopper

708000759

$4.19

10e

Latch

708000909

$6.29

10f

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

10g

Center Seat Corner | Model Pro

708002077

$12.99

10h

RH Seat Corner | Model Pro

269001669

$13.99

10j

LH Seat Corner | Model Pro

269001670

$13.99

Seat Stopper

708003609

$10.49

50a

Seat Base

708002574

$249.99

50b

Rear Seat | MAX Model

708002088

$229.99

50b3

Black, Seat Cover

708001290

$150.49

50b4

Panel Nut M6 X 1.0

250100198

$2.11

50c

Back Rest

708002085

$519.99

50c3

Back Rest Cover

708001841

$123.49

50d

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

50e

Latch

708001532

$67.99

50e4

Flat Washer M5

234051410

$0.53

50f

Pop Rivet 3/16”

293150108

$1.19

50g

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

50g1

Torx Truss M8 X 90

250000806

$7.51

50g3

Sleeve

705006129

$14.99

50h

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

50h1

Torx Truss M8 X 90

250000806

$7.51

50h3

Sleeve

705006129

$14.99

50j

Seat Support

708001483

$2.99

50k

Rubber Stopper

708000758

$12.99

50m

Insert

708001511

$4.29

50n

Cap

708001512

$13.99

50p

Torx Truss PT K40 x 12

250001131

$2.11

50q

Flat Washer

224060201

$1.26

50r

Oval Head Torx Screw K60 X 16

250000546

$2.11

50u

Pilot Lamp Cap

710003910

$4.29
