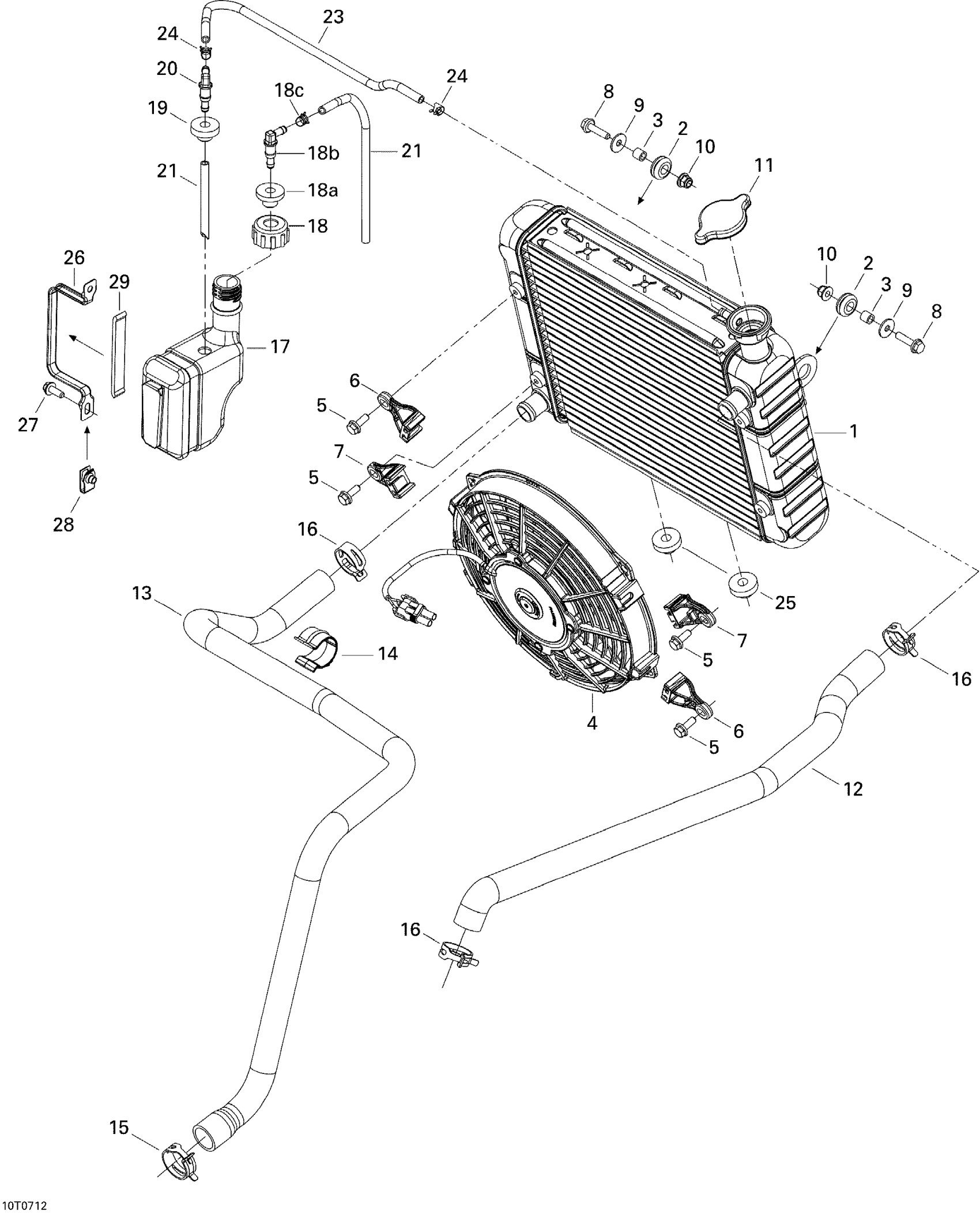

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 01- Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200120

Unavailable

2

Grommet

709000582

$4.69

3

Bushing

293900105

$7.65

4

Fan

709200124

$279.99

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

6

FAN SUPPORT - Call your local BRP dealership

709200125

Unavailable

7

FAN SUPPORT - Call your local BRP dealership

709200126

Unavailable

8

Hex. Flange Screw M6 X 25

207662544

$0.64

9

Flat Washer

250200082

$0.42

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Radiator Pressure Cap

709200207

$25.49

12

RADIATOR INLET HOSE - Call your local BRP dealership

709200130

Unavailable

13

RADIATOR OUTLET HOSE - Call your local BRP dealership

709200131

Unavailable

14

Retainer

275500526

$4.55

15

Norma Spring Clamp

293650108

$4.12

16

Norma Spring Clamp

293650109

$4.12

17

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

18

Cap

709200586

$11.11

18a

Grommet

293830136

$10.07

18b

Male Connector

414580700

$4.12

18c

Spring Clamp

414554800

$0.88

19

Grommet

709200285

$9.69

20

Elbow Male Connector

414580600

$4.23

21

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

23

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

24

Spring Clamp

414554800

$0.88

25

Grommet

709200285

$9.69

26

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

27

Hex. Flange Screw M6 X 16

210261650

$1.67

28

Panel Nut M6 X 1.0

250100198

$2.11

29

Gasket, Neoprene 2000Mm Long

219704476

$15.36
