Description

Price

10

Rear Propeller Shaft Ass'y Kit

703500932

$259.49

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10b1

Grease Fitting | T3

715900295

$5.24

10c

Yoke | T3

715900500

$24.99

11

Shaft Ass'y Kit | Includes 11 to 11f

703501135

$412.99

11a

Rubber Boot

715900118

$14.30

11b

Universal Joint

715900326

$68.99

11b1

Grease Fitting | T3

715900295

$5.24

11c

Yoke | T3

715900500

$24.99

50

Wheel Hub

705503257

$101.49

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

100

Oetiker Clamp

293650042

$3.09

110

Rubber Bellow | 4X4

705400552

$6.14

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230d1

Oetiker Clamp

715900282

$5.29

230d2

Oetiker Clamp, Small

715900283

$5.29

230e

Boot Kit, Differential Side

705401346

$42.49

230e1

Oetiker Clamp, Large

715900284

$5.29

230e2

Oetiker Clamp, Small

715900261

$5.29

240

LH Half Shaft Ass'y

705501898

$243.99

240a

CV Joint

705401344

$259.49

240b

Plunging Joint

715900304

$121.49

240c

Circlip

705501781

$6.50

240d

Boot Kit, Wheel Side

705401345

$42.49

240d1

Oetiker Clamp

715900282

$5.29

240d2

Oetiker Clamp, Small

715900283

$5.29

240e

Boot Kit, Differential Side

705401346

$42.49

240e1

Oetiker Clamp, Large

715900284

$5.29

240e2

Oetiker Clamp, Small

715900261

$5.29

245

Hex. Flange Screw M10x145

705502741

$8.09

250

Hex. Flange Screw M10 X 135

250001041

$5.59

255

Screw Socket HD M10 X 140

250001094

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

$2.11

263

WASHER M10 - Call your local BRP dealership

20005

Unavailable

265

Elastic Stop Nut M10

232500416

$1.90

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

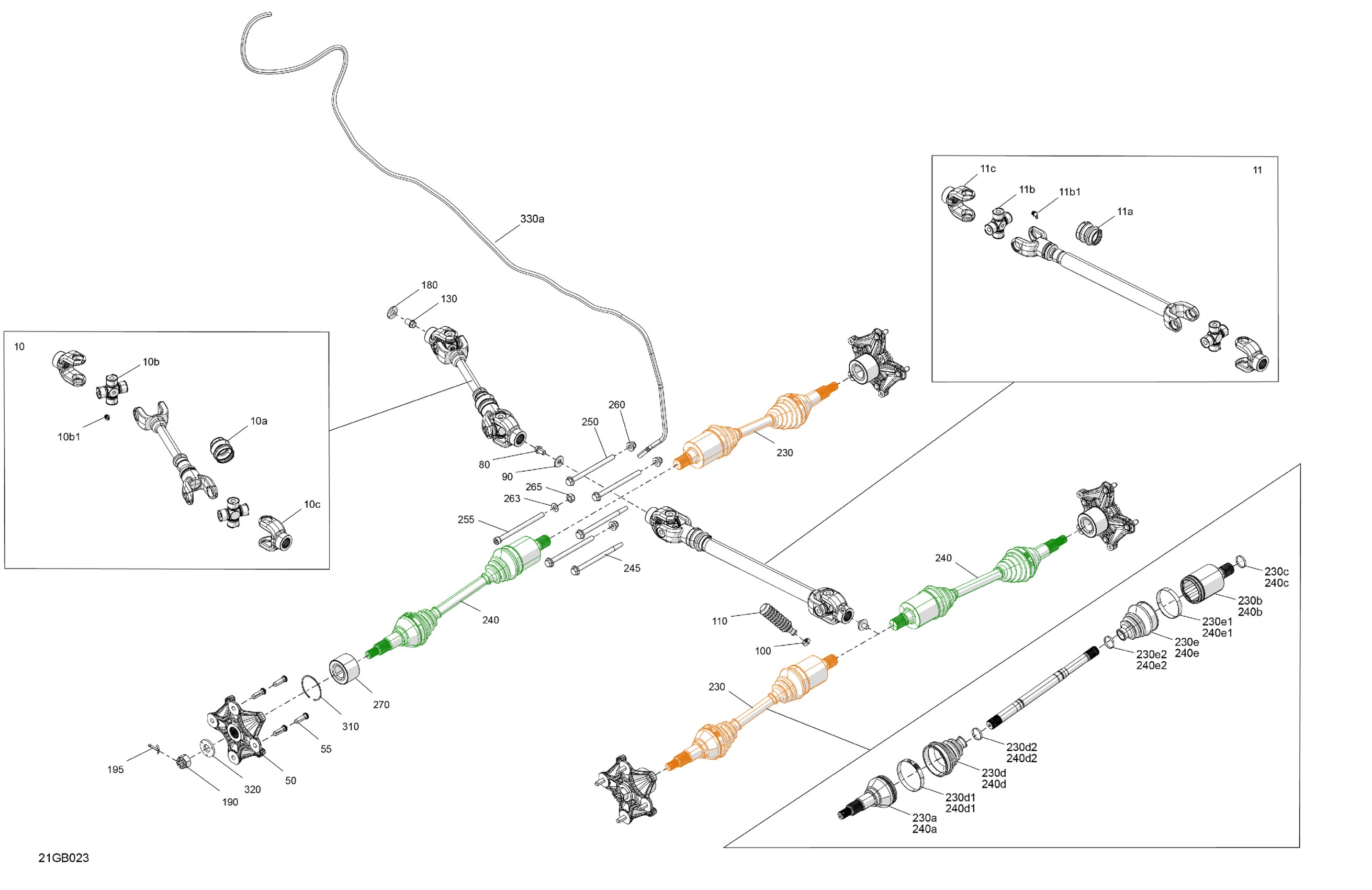

Can-Am 001 - Outlander T 6X6 - 450 EFI - XU+ - T Regulation, 2022 04- Drive - Rear - Common Parts Diagram

Rear Propeller Shaft Ass'y Kit

Rubber Boot

Universal Joint Ass'y | T3

Grease Fitting | T3

Yoke | T3

Shaft Ass'y Kit | Includes 11 to 11f

Rubber Boot

Universal Joint

Grease Fitting | T3

Yoke | T3

Wheel Hub

Wheel Stud M10 X 1.25 | 2X4

Hex. Flange Screw M10 X 16 S.GRIP

Flat Washer M10 | 4X4

Oetiker Clamp

Rubber Bellow | 4X4

Hex Flange Screw M12 X 16

Conical Spring Washer M12

Hex. Flange Castellated Nut M18

Cotter Pin

RH Half Shaft Ass'y

CV Joint

Plunging Joint

Circlip

Boot Kit, Wheel Side

Oetiker Clamp

Oetiker Clamp, Small

Boot Kit, Differential Side

Oetiker Clamp, Large

Oetiker Clamp, Small

LH Half Shaft Ass'y

CV Joint

Plunging Joint

Circlip

Boot Kit, Wheel Side

Oetiker Clamp

Oetiker Clamp, Small

Boot Kit, Differential Side

Oetiker Clamp, Large

Oetiker Clamp, Small

Hex. Flange Screw M10x145

Hex. Flange Screw M10 X 135

Screw Socket HD M10 X 140

Hex. Flange Elastic Nut M10

WASHER M10 - Call your local BRP dealership

Elastic Stop Nut M10

Ball Bearing

Circlip

Conical Spring Washer M18

Polyurethane Hose 4000MM Long | Includes 250 to 250a
