Description

Price

22

Hex. Flange Screw M6 X 20

207662054

$1.01

23

Flange Elastic Nut M6

233261434

$4.44

30

Flange Elastic Nut M6

233261434

$4.44

36

Flange Elastic Nut M6

233261434

$4.44

70

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

80

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Step

705007040

$97.99

120

RH Step

705007039

$129.99

125

LH Footrest

705004352

$30.99

126

RH Footrest

705005395

$36.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

311

ESD Bracket

705013222

$48.99

315

Sectional Bent Tube

705016640

$38.99

325

Sectional Bent Tube

705016641

$42.99

365

Black, Torx Screw M6 X 35

250000646

$0.98

367

Flange Elastic Nut M6

233261434

$4.44

371

Screw-torx Button Head M6 X 40

235564054

$6.89

385

Insert Half Hex Body M6 x 1.0

250100199

$3.19

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

491

Heat Shield

707002456

$3.89

492

Heat Shield

707002457

$3.89

493

Heat Shield

707002458

$19.99

494

Heat Shield

707002459

$3.89

496

Heat Shield

707002461

$3.89

497

Heat Shield

707002462

$3.89

499

Heat Shield

707002464

$3.89

510

LH Rear Facia | Europe

705006651

$15.99

511

Heat Shield

707002103

$10.49

512

Heat Shield

707002107

$2.59

513

Heat Shield

707002594

$0.98

520

RH Rear Facia | Europe

705006652

$15.99

550

LH Support

705007277

$30.99

560

RH Support

705007278

$30.99

590

Torx Screw M6 X 20

250000722

$1.68

595

Hex. Flange Screw M6 X 16

207661654

$2.11

770

Tuflok Plastic Rivet

293150230

$1.47

995

Hex. Flange Screw M6 X 20

207662034

$2.11

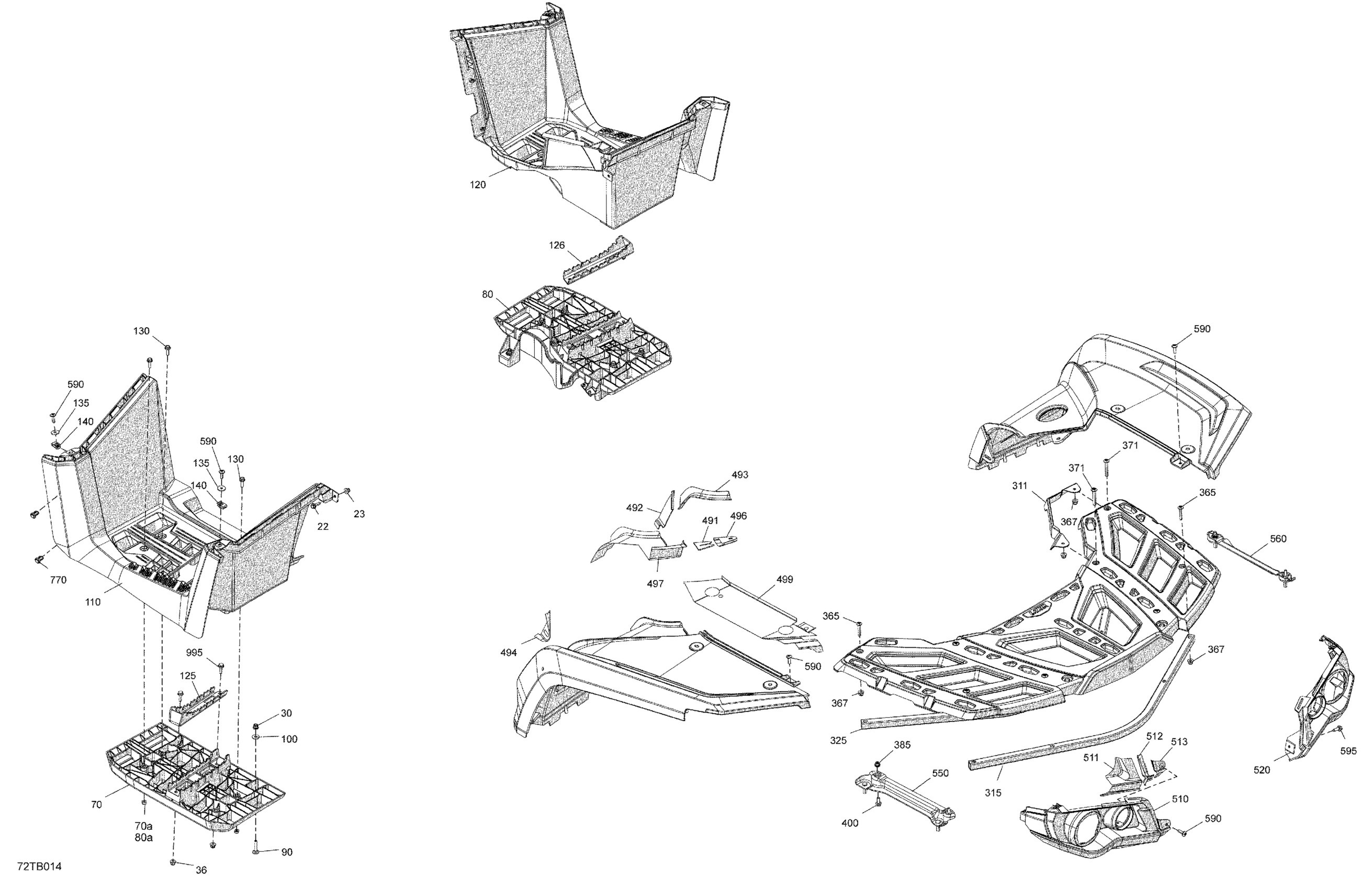

Can-Am 004 - Outlander T 1000 EFI - XXC - T Regulation, 2022 07- Body - Rear Section Diagram

Hex. Flange Screw M6 X 20

Flange Elastic Nut M6

Flange Elastic Nut M6

Flange Elastic Nut M6

LH Structural Footboard

Square Nut M6

RH Structural Footboard

Square Nut M6

Carriage Bolt M6 X 35

Flat Washer 6 mm

LH Step

RH Step

LH Footrest

RH Footrest

Hex. Flange Screw M6 X 20

Flat Washer

Panel Nut M6 X 1.0

ESD Bracket

Sectional Bent Tube

Sectional Bent Tube

Black, Torx Screw M6 X 35

Flange Elastic Nut M6

Screw-torx Button Head M6 X 40

Insert Half Hex Body M6 x 1.0

Hex. Flange Screw M6 X 16, Scotch Grip

Heat Shield

Heat Shield

Heat Shield

Heat Shield

Heat Shield

Heat Shield

Heat Shield

LH Rear Facia | Europe

Heat Shield

Heat Shield

Heat Shield

RH Rear Facia | Europe

LH Support

RH Support

Torx Screw M6 X 20

Hex. Flange Screw M6 X 16

Tuflok Plastic Rivet

Hex. Flange Screw M6 X 20
