Description

Price

200

Main Wiring Harness

710007823

$899.99

BN1

Terminal

710000913

$5.61

BN2

Open Barrel Terminal

278001392

$4.79

BP1

Open Barrel Terminal

278001392

$4.79

Cl

Female Housing 20 Circuits

278002858

$22.49

Cl

Sealing Cap

278002860

$1.79

Cl

Female Terminal

515178018

$1.19

D2

Diode

409012700

$11.12

DC1

Female Terminal

409010300

$4.39

DC2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3_C

Male Housing, 2 Circuits

710000667

$8.32

DC5

Male Connector, 2 Circuits

278000220

$15.49

DC5

Wire Seal

278001065

$7.69

DC5

Female Terminal

278000223

$3.19

DC5_1

Insulated Sheath

278001007

$3.58

DC5_1

Female Terminal

710000421

$6.11

DC5_C

Clip

710000992

$4.29

DC5_C

Female Housing, 2 Circuits

278000217

$9.59

DC5_C

Wire Seal

278000216

$3.19

DC6

Male Connector, 2 Circuits

278000220

$15.49

DC6

Wire Seal

278001065

$7.69

DC6

Female Terminal

278000223

$3.19

DC6_C

Clip

710000992

$4.29

DC6_C

Female Housing, 2 Circuits

278000217

$9.59

DC6_C

Wire Seal

278000216

$3.19

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Plug

710005437

$3.17

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock

710001222

$2.09

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Terminal

710001873

$2.09

DPS

Female Terminal

278002187

$6.39

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Molex Housing, 48 Circuits

710001967

$142.99

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Terminal

710001728

$6.79

ECMB

Female Terminal

710001727

$3.19

F1

Little Fuse, 10 Amperes

710000744

$8.79

F10

Little Fuse, 10 Amperes

710000744

$8.79

F12

Fuse, 25 Amps

710002590

$19.49

F2

Little Fuse, 30 Amperes

710000747

$8.49

F3

Little Fuse, 20 Amperes

710000746

$8.49

F4

Little Fuse, 20 Amperes

710000746

$8.49

F5

Little Fuse, 10 Amperes

710000744

$8.79

F6

Little Fuse, 10 Amperes

710000744

$8.79

F7

Little Fuse, 10 Amperes

710000744

$8.79

F8

Little Fuse, 10 Amperes

710000744

$8.79

F9

Little Fuse, 10 Amperes

710000744

$8.79

FL_F

Wire Seal

710000402

$4.55

FL_F

Female Terminal

409012100

$4.55

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

278001014

$3.28

FP

Female Terminal

710001340

$5.89

FR_F

Wire Seal

710000402

$4.55

FR_F

Female Terminal

409012100

$4.55

FRR1

Female Housing, 2 Circuits

515175658

$16.18

FRR1

Female Terminal

710003896

$2.19

FT

Clip Bracket Connector (edge)

409210100

$2.09

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIC

Housing

710001928

$16.86

HIC

Lock

710001222

$2.09

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HL_LH

Housing

710002278

$7.39

HL_LH

Lock

710002279

$4.39

HL_LH

Wire Seal

710001427

$2.09

HL_LH

Female Terminal

278002578

$1.04

HL_LL

Housing

710002578

$3.19

HL_LL

Lock

710002584

$4.39

HL_LL

Wire Seal

710001427

$2.09

HL_LL

Female Terminal

278002578

$1.04

HL_RH

Housing

710002278

$7.39

HL_RH

Lock

710002279

$4.39

HL_RH

Wire Seal

710001427

$2.09

HL_RH

Female Terminal

278002578

$1.04

HL_RL

Housing

710002578

$3.19

HL_RL

Lock

710002584

$4.39

HL_RL

Wire Seal

710001427

$2.09

HL_RL

Female Terminal

278002578

$1.04

HO2S1

Housing

710002466

$3.19

HO2S1

Lock

710002469

$2.09

HO2S1

Seal

278001482

$3.19

HO2S1

Terminal

710000736

$5.50

HO2S1

Gold Terminal

710002597

$3.19

JMP_F

Insulated Sheath

278001007

$3.58

JMP_F

Female Terminal

710000421

$6.11

JMP_M

Insulated Sheath

278001008

$3.28

JMP_M

Female Terminal

278002261

$7.55

KX1

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX1

Female Terminal

409010100

$5.61

KX2

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX2

Female Terminal

409010100

$5.61

LP

Female Housing, 2 Circuits

515175658

$16.18

LP

Female Terminal

710003896

$2.19

MC1_1

Female Housing

710004047

$1.49

MC1_1

Terminal

710002315

$4.55

MC1_2

Female Housing

710004048

$1.49

MC1_2

Terminal

710002315

$4.55

MG1

Connector

710007097

$19.49

MG1

Cap

710000080

$8.29

MG1

Wire Seal

710000402

$4.55

MG1

Male Terminal

409011300

$5.93

MG2

Connector

710007098

$12.11

MG2

Seal

409012300

$4.54

MG2

Wire Seal

710000402

$4.55

MG2

Female Terminal

409012100

$4.55

MG3

Female Housing 6 Circuits

710001445

$8.54

MG3

Wire Seal

710000402

$4.55

MG3

Female Terminal

409012100

$4.55

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Cap

710000840

$5.89

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Female Terminal

515177009

$5.89

PF1

Female Terminal

515177012

$5.39

PF1_C

Fuse Cover

710001026

$21.99

PF1_C

Relay Fuse Logo | Not Shown

710007868

$14.49

PF1_C

Foam

278002172

$5.89

PF1_C

Little Fuse, 10 Amperes

710000744

$8.79

PF1_C

Little Fuse, 20 Amperes

710000746

$8.49

PF1_C

Little Fuse, 25 Ampere

278002389

$4.55

PF1_C

Little Fuse, 30 Amperes

710000747

$8.49

PF2

Fuse

710001613

$8.79

PF2

Fuse Holder

278001325

$8.79

PF2

Female Terminal

710000113

$6.99

PF4

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000357

$7.69

PLL

Male Connector, 2 Circuits

278000220

$15.49

PLL

Wire Seal

278001065

$7.69

PLL

Female Terminal

278000223

$3.19

PLR

Male Connector, 2 Circuits

278000220

$15.49

PLR

Wire Seal

278001065

$7.69

PLR

Female Terminal

278000223

$3.19

R1

Resistor

710005179

$2.24

R3

Resistor

710007300

$2.24

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Cap

710000882

$11.49

REG

Seal

710001932

$3.27

REG

Terminal

710001934

$5.50

RFID

Housing

710001161

$11.12

RFID

Lock

710001162

$3.19

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RL_F

Wire Seal

710000402

$4.55

RL_F

Female Terminal

409012100

$4.55

RR_F

Wire Seal

710000402

$4.55

RR_F

Female Terminal

409012100

$4.55

RSS

Male Terminal Housing, 6 Circuits

710000835

$17.04

RSS

Wire Seal

710000402

$4.55

RSS

Male Terminal

409011300

$5.93

RY1

Relay, 30 AMP

515176774

$21.99

RY2

Relay

715900824

$21.99

RY3

Relay

715900824

$21.99

RY4

Relay, 30 AMP

515176774

$21.99

RY5

Relay, 30 AMP

515176774

$21.99

RY6

Relay

715900824

$21.99

SS1

Female Terminal

409010300

$4.39

SS2

Female Terminal

409010300

$4.39

SW_CL

Cap

710000080

$8.29

SW_CL

Wire Seal

710000402

$4.55

SW_CL

Male Terminal

409011300

$5.93

SW_CL_C

Female Terminal Housing, 3 Circ.

710000153

$9.95

SW_CL_C

Cap

710000080

$8.29

TAS

Housing

710001231

$13.99

TAS

Lock 6 Positions

710005296

$1.09

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$8.49

TELL TALE

Female Terminal

515175231

$4.39

TL_L

Connector, 3 Positions

710003167

$9.21

TL_L

Seal

415128501

$1.89

TL_L

Female Terminal

278000998

$4.39

TL_R

Connector, 3 Positions

710003167

$9.21

TL_R

Seal

415128501

$1.89

TL_R

Female Terminal

278000998

$4.39

TRL

Female Housing, 6 Circuits

710000081

$8.79

TRL

Wire Seal

710000402

$4.55

TRL

Seal

409012300

$4.54

TRL

Female Terminal

409012100

$4.55

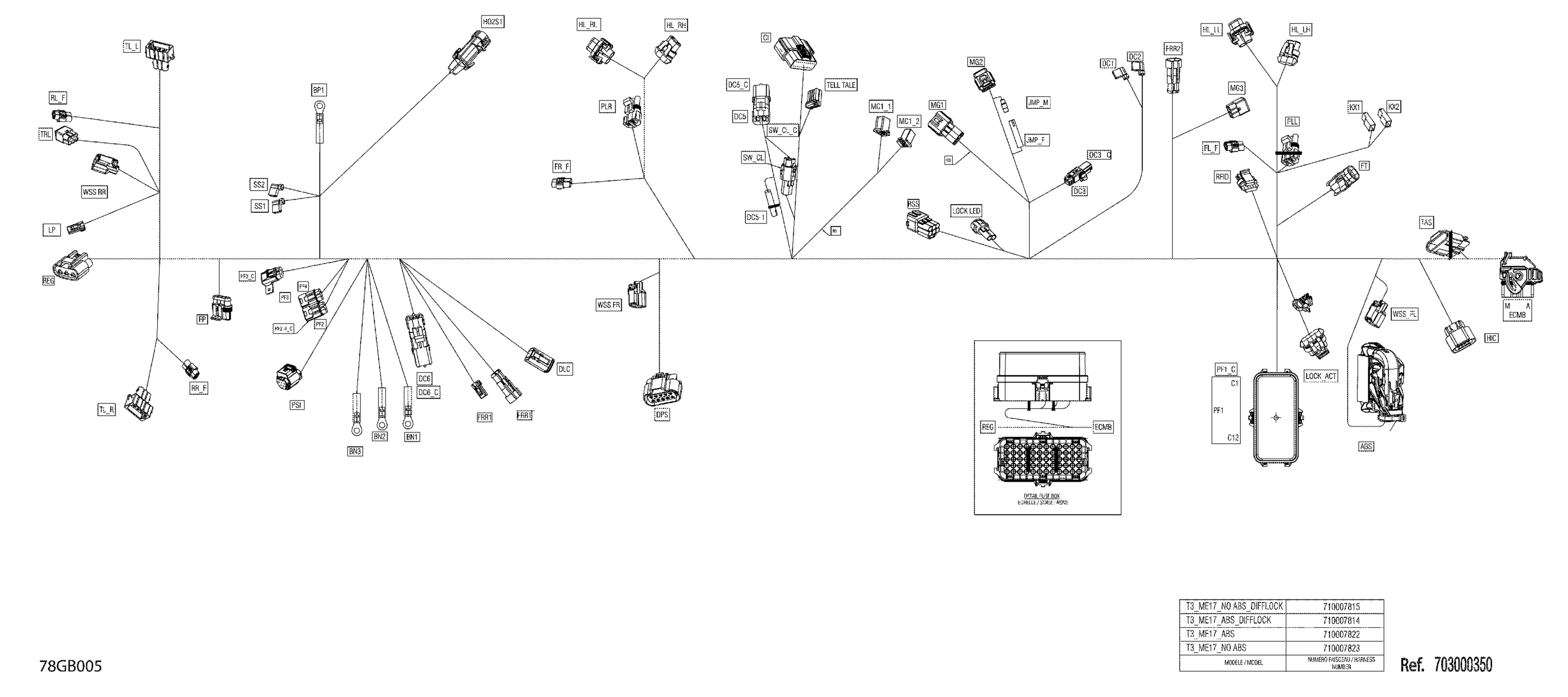

Can-Am 009 - Outlander T MAX 450 EFI - STD - T Regulation, 2022 08- Electric - Main Harness - 710007823 Diagram

Main Wiring Harness

Terminal

Open Barrel Terminal

Open Barrel Terminal

Female Housing 20 Circuits

Sealing Cap

Female Terminal

Diode

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Male Connector, 2 Circuits

Wire Seal

Female Terminal

Insulated Sheath

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Male Connector, 2 Circuits

Wire Seal

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Female Housing 6 Circuits

Lock

Plug

Female Terminal

Female Terminal

Female Housing

Lock

Lock | PACKARD 15430900

Plug

Wire Seal

Seal

Terminal

Female Terminal

Cover, 48 positions

Molex Housing, 48 Circuits

Plug

Plug

Female Terminal

Terminal

Female Terminal

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Fuse, 25 Amps

Little Fuse, 30 Amperes

Little Fuse, 20 Amperes

Little Fuse, 20 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Wire Seal

Female Terminal

Female Housing, 4 Circuits

Wire Seal

Wire Seal

Female Terminal

Female Terminal

Wire Seal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Clip Bracket Connector (edge)

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Housing

Lock

Cap

Seal

Seal Wire

Terminal
