Description

Price

100a

LH Trim Box

708301859

$4.49

100b

RH Trim Box

708301860

$4.49

100c

Trim Box Double Face Tape

704905469

$3.69

100d

Petrol, LH Box Cover

708304382

$459.99

100f

Petrol, RH Box Cover

708304383

$459.99

100g

Red, Lateral Reflector

705003412

$15.49

100h

Rear Fender

708301584

$204.99

100j

Rear Fender Extention

708301747

$204.99

100k

Tuflock Phillips Plastic Screw

414745900

$1.69

100m

Neoprene Seal, 150 MM

293250385

$3.39

100n

Seal 1000Mm Long

219704373

$8.26

100p

Deep Black, Rear Fairing

708302912

$249.99

100q

Edge Clip

517302785

$0.88

100r

Tuflok Plastic Rivet

293150230

$1.47

100s

LH Inner Cover | Included 100s to 100s3

708301663

$83.99

100s2

Striker Cover

708303255

$6.89

100s3

Hex. Forming Screw M5 X 16

210251650

$1.15

100t

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100u

Panel Nut M6 X 1.0

250100208

$1.46

100v

Torx Screw M6 X 20

250000722

$1.68

100w

Female Hinge

708302044

$11.49

100x

Retaining Plate

708302046

$13.49

100y

Torx Truss PT K40 x 12

250001131

$2.11

100z

Wheel Arch Protector

708304123

$46.49

100aa

Stainless Steel Flat Washer

234062670

$2.11

100ab

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100ac

Tuflok Plastic Rivet

293150230

$1.47

100ad

Neoprene Seal, 150 MM

293250385

$3.39

100af

Panel Nut M6 X 1.0

250100208

$1.46

100ag

Tuflok Plastic Rivet

293150230

$1.47

100ah

RH Inner Cover | Included 100ah to 100ah3

708301664

$83.99

100ah2

Striker Cover

708303255

$6.89

100ah3

Hex. Forming Screw M5 X 16

210251650

$1.15

100aj

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100ak

Panel Nut M6 X 1.0

250100208

$1.46

100am

Torx Screw M6 X 20

250000722

$1.68

100an

Female Hinge

708302044

$11.49

100ap

Retaining Plate

708302046

$13.49

100aq

Torx Truss PT K40 x 12

250001131

$2.11

100ar

Electronic Component Support

708302571

$23.99

100as

Tuflok Plastic Rivet

293150230

$1.47

100at

LH Cargo

708302404

$94.99

100au

Panel Nut M6 X 1.0

250100208

$1.46

100av

Torx Screw M6 X 20

250000722

$1.68

100aw

Stainless Steel Flat Washer

234062670

$2.11

100ax

Retaining Plate

708302046

$13.49

100ay

Torx Truss PT K40 x 12

250001131

$2.11

100az

Male Hinge

708302045

$11.49

100ba

LH Latch Assembly

708301794

$154.99

100bb

Torx Screw M6 X 20

250000722

$1.68

100bc

Connector Holder

710002033

$3.39

100bd

LH Control

708301222

$43.99

100bf

Panel Nut M6 X 1.0

250100198

$2.11

100bg

Torx Screw M6 X 20

250000722

$1.68

100bh

Trim 3000Mm Long

219704540

$109.99

100bj

LH Cargo Fairing

708302401

$78.99

100bk

Torx Screw K50 X 16

250000720

$1.69

100bm

Retainer Cable

708300385

$38.99

100bn

Screw PT Type K-50 X 16

250000959

$2.11

100bp

LH Light Support

708302283

$49.99

100bq

Brace

708302284

$12.99

100br

Tuflok Plastic Rivet

293150230

$1.47

100bs

Panel Nut M6 X 1.0

250100198

$2.11

100bt

Torx Screw M6 X 20

250000722

$1.68

100bu

Stainless Steel Flat Washer

234062670

$2.11

100bv

Torx Screw K50 X 16

250000720

$1.69

100bw

Rubber Bumper

293830005

$8.09

100bx

RH Cargo

708302405

$94.99

100by

Panel Nut M6 X 1.0

250100208

$1.46

100bz

Torx Screw M6 X 20

250000722

$1.68

100ca

Stainless Steel Flat Washer

234062670

$2.11

100cb

Retaining Plate

708302046

$13.49

100cc

Torx Truss PT K40 x 12

250001131

$2.11

100cd

Male Hinge

708302045

$11.49

100cf

RH Latch Assembly

708301795

$154.99

100cg

Torx Screw M6 X 20

250000722

$1.68

100ch

Connector Holder

710002033

$3.39

100cj

RH Control

708301697

$43.99

100ck

Panel Nut M6 X 1.0

250100198

$2.11

100cm

Torx Screw M6 X 20

250000722

$1.68

100cn

Trim 3000Mm Long

219704540

$109.99

100cp

RH Cargo Fairing

708302402

$78.99

100cq

Torx Screw K50 X 16

250000720

$1.69

100cr

Antena Cap

708301805

$3.89

100cs

Retainer Cable

708300385

$38.99

100ct

Screw PT Type K-50 X 16

250000959

$2.11

100cu

RH Light Support

708302285

$49.99

100cv

Brace

708302284

$12.99

100cw

Tuflok Plastic Rivet

293150230

$1.47

100cx

Panel Nut M6 X 1.0

250100198

$2.11

100cy

Torx Screw M6 X 20

250000722

$1.68

100cz

Stainless Steel Flat Washer

234062670

$2.11

100da

Torx Screw K50 X 16

250000720

$1.69

100db

Rubber Bumper

293830005

$8.09

100dc

Heat Shield

705016875

$47.99

200

LH Rear Holding Handle

708003456

$105.99

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300

RH Rear Holding Handle

708003457

$105.99

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Threaded Insert M6 X 1.0

250100242

Unavailable

860

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

861

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Truss M8 X 16

250000881

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

905

Lanyard | Included 905 to 905d

708002532

$22.99

905d

Cord Decal

704905127

Unavailable

905f

Tuflok Plastic Rivet

293150230

$1.47

905g

Torx Truss Screw M6 X 20

250000350

$5.29

905h

Flat Washer M6, Stainless

234062600

$0.77

905j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

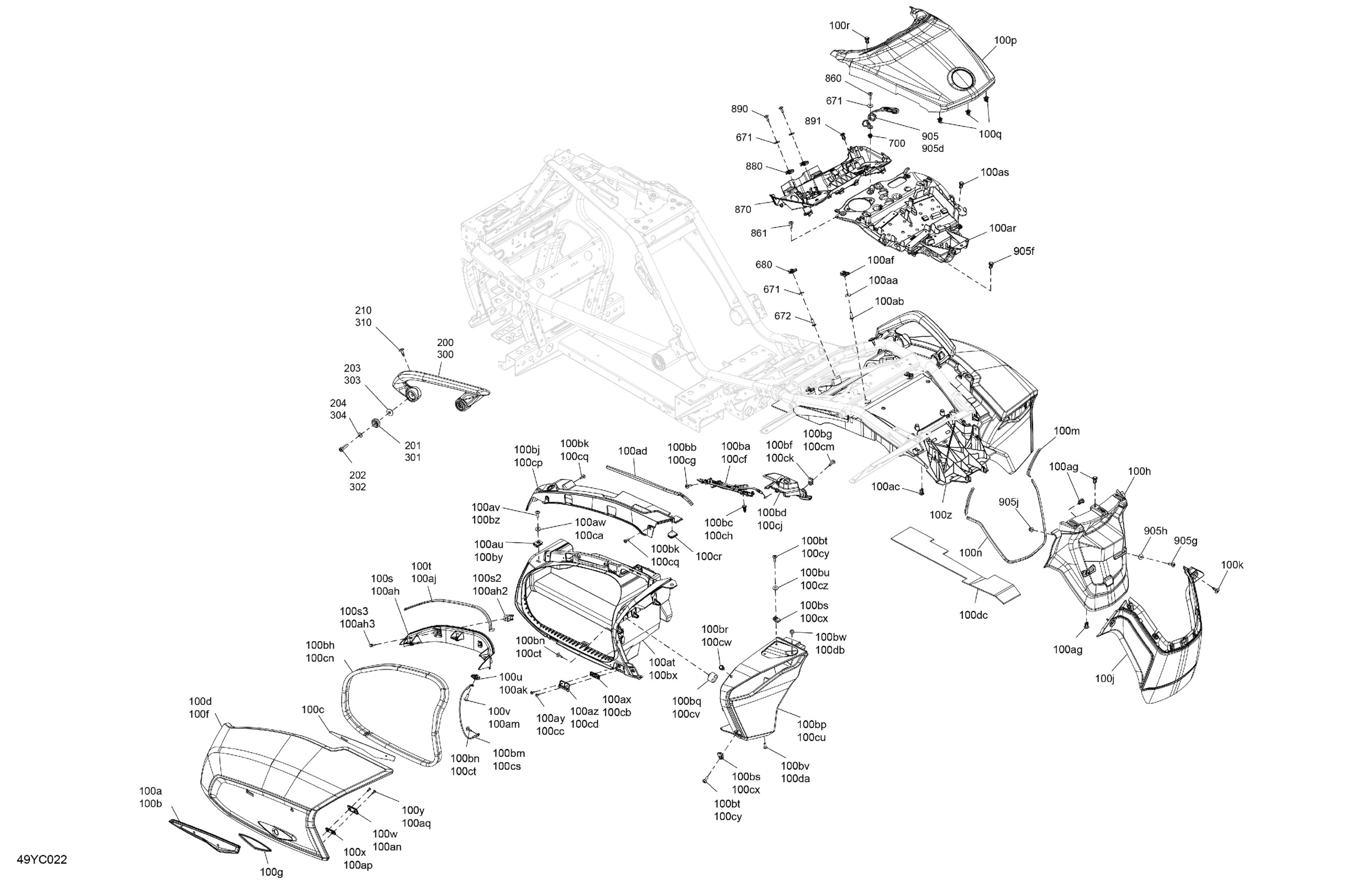

Can-Am 004 - F3 T - Petrol, North Armerica, 2023 07- Body - Cargo Diagram

LH Trim Box

RH Trim Box

Trim Box Double Face Tape

Petrol, LH Box Cover

Petrol, RH Box Cover

Red, Lateral Reflector

Rear Fender

Rear Fender Extention

Tuflock Phillips Plastic Screw

Neoprene Seal, 150 MM

Seal 1000Mm Long

Deep Black, Rear Fairing

Edge Clip

Tuflok Plastic Rivet

LH Inner Cover | Included 100s to 100s3

Striker Cover

Hex. Forming Screw M5 X 16

Gasket, Neoprene 2000Mm Long

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Female Hinge

Retaining Plate

Torx Truss PT K40 x 12

Wheel Arch Protector

Stainless Steel Flat Washer

Torx Screw M6 X 20, Scotch Grip

Tuflok Plastic Rivet

Neoprene Seal, 150 MM

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

RH Inner Cover | Included 100ah to 100ah3

Striker Cover

Hex. Forming Screw M5 X 16

Gasket, Neoprene 2000Mm Long

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Female Hinge

Retaining Plate

Torx Truss PT K40 x 12

Electronic Component Support

Tuflok Plastic Rivet

LH Cargo

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Retaining Plate

Torx Truss PT K40 x 12

Male Hinge

LH Latch Assembly

Torx Screw M6 X 20

Connector Holder

LH Control

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Trim 3000Mm Long

LH Cargo Fairing

Torx Screw K50 X 16

Retainer Cable

Screw PT Type K-50 X 16

LH Light Support

Brace

Tuflok Plastic Rivet

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Torx Screw K50 X 16

Rubber Bumper

RH Cargo

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Retaining Plate

Torx Truss PT K40 x 12

Male Hinge

RH Latch Assembly

Torx Screw M6 X 20

Connector Holder

RH Control

Panel Nut M6 X 1.0
