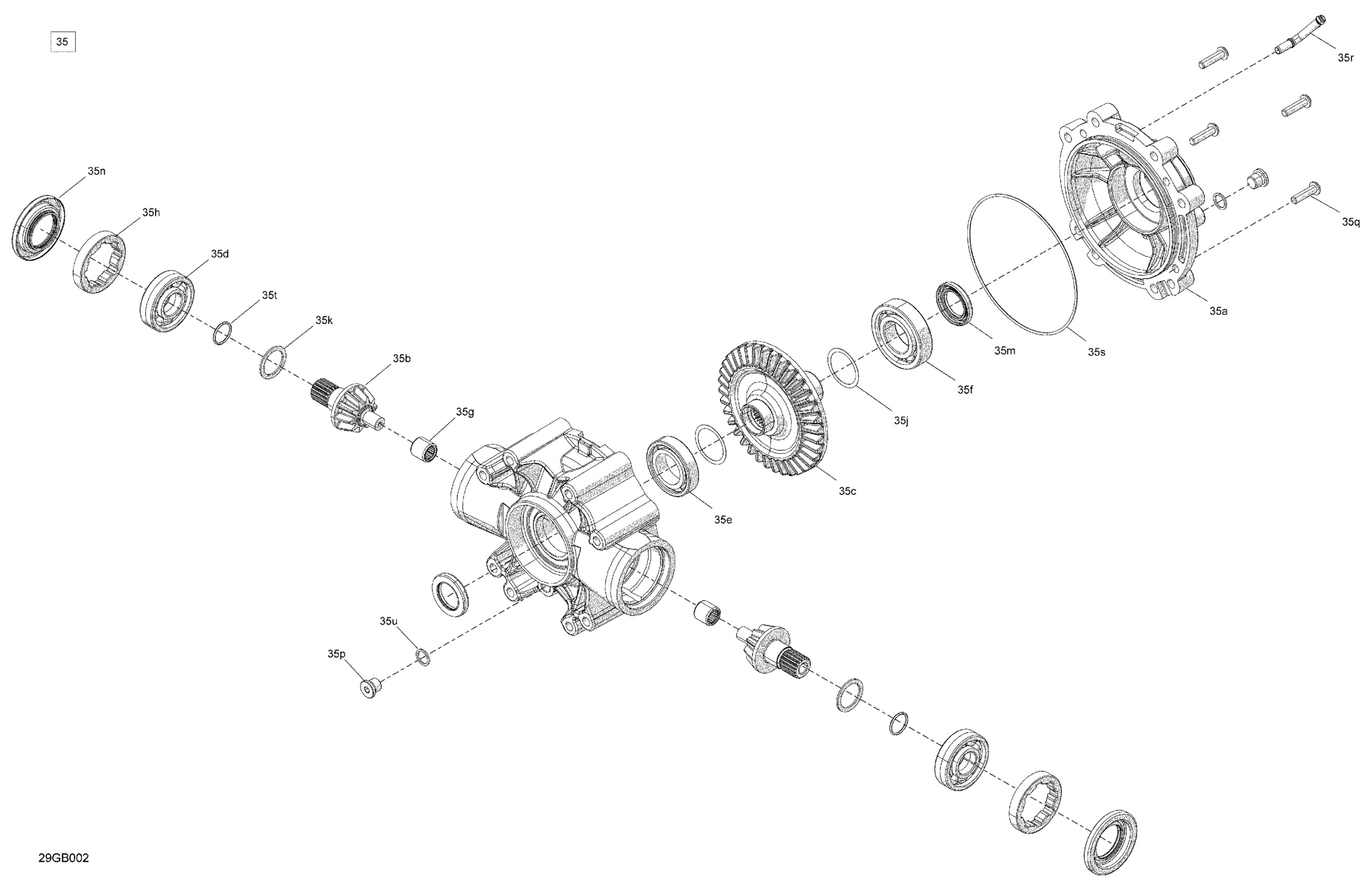

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - DPS - International, 2022 04- Drive - Middle Drive Unit Diagram

Description

Price

Middle Drive Unit Ass'y | Includes 35 to 35u

705502369

$1,379.99

35a

Rear Cover

705502390

$179.99

35b

Pinion 10 Teeth

705502823

$219.99

35c

Gear 36 Teeth

705502822

$409.99

35d

Ball Bearing

705502055

$31.99

35e

Ball Bearing

705502737

$48.49

35f

Ball Bearing

705502738

$59.49

35g

Needle Bearing

705502058

$49.99

35h

Nut

705502059

$32.99

35j

Differential Shim 0.02 mm

705502060

$13.76

35k

Pinion Gear Shim 1.67 mm

705502061

$18.99

35m

Oil Seal

705501996

$21.99

35n

Oil Seal

705402405

$27.49

35p

Fill Level Plug | 4X4

705500504

$10.01

35q

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

35r

Breather Tube

705501584

$14.99

35s

Seal

705502064

$8.47

35t

O-Ring

705502065

$5.95

35u

Copper Washer | 4X4

705500506

$0.45
