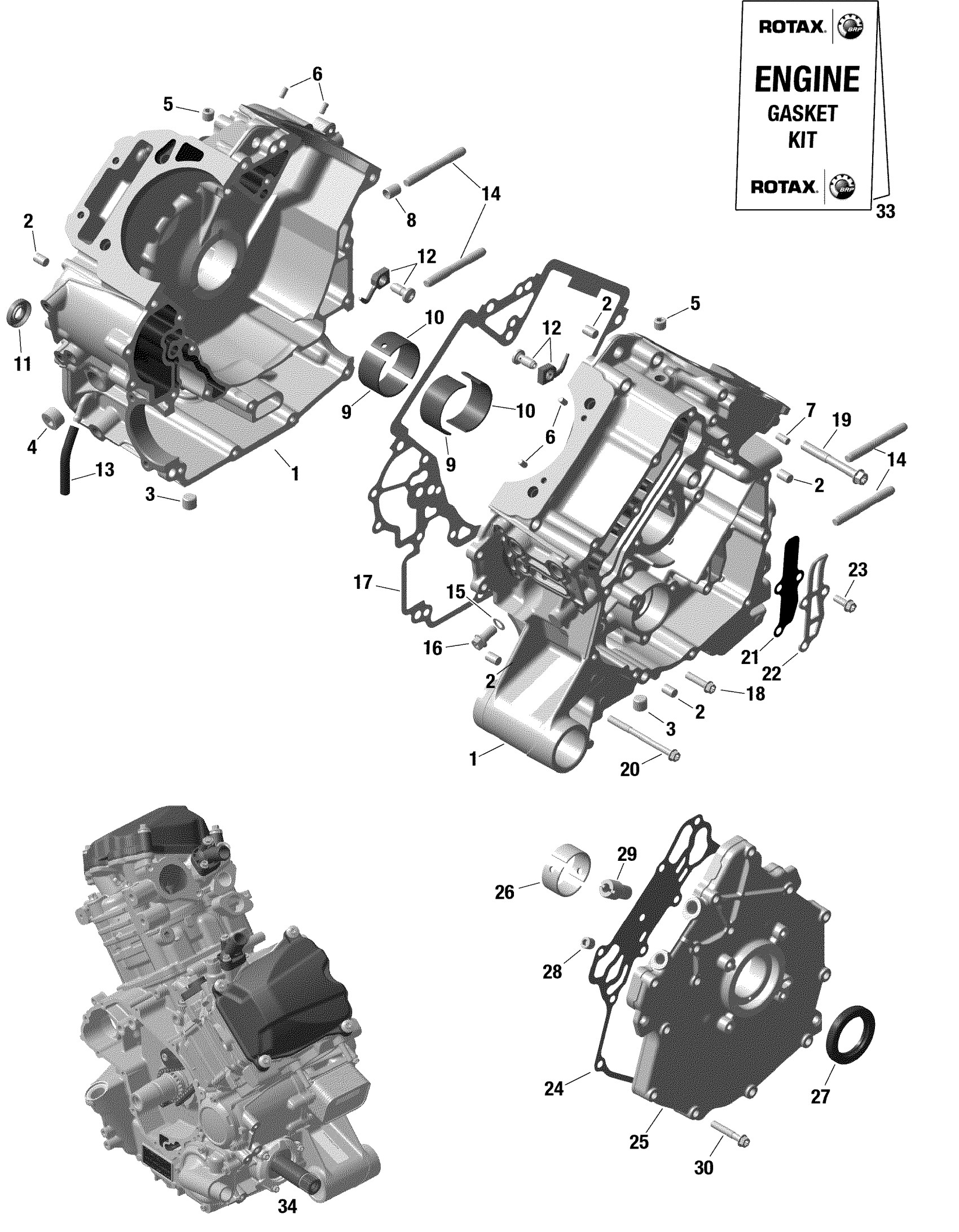

Can-Am 003 - Outlander 1000R EFI - XMR - International, 2022 01- Rotax - Crankcase - 215 - 349 Diagram

#

Description
Price

1>12

Crankcase Ass'y | Includes 1 to 12

420686416

$1,150.49

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M12 X 1.5

420840657

$8.57

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

5

Plug Screw M10 X 1

420641323

$14.28

6

Drive Pin 5 X 10

420929650

$1.68

7

Needle Pin

420932780

$7.41

8

Dowel Pin 10 X 13

420929670

$11.60

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Oil Seal

420650315

$11.65

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

14

Stud

420240816

$7.09

15

Sealing Ring

420950141

$2.00

16

Torx Flange Screw M8 X 16

420440852

$4.12

17

Gasket

420651227

$31.99

18

Torx Flange Screw M6 X 25

420440234

$3.06

19

Torx Flange Screw M8 X 65

420440402

$7.41

20

Torx Flange Screw M6 X 75

420440657

$4.44

21

Reed Valve

420224721

$19.19

22

Reed Valve Stop

420224725

$11.63

23

Torx Flange Screw M6 X 16

420440162

$3.17

24

Gasket

420651211

$26.49

25

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

26

Bearing Sleeve

420233995

$20.99

27

Oil Seal

420631933

$27.49

28

Plug Screw M10 X 1

420641323

$14.28

29

Hose Nipple

420256332

$17.53

30

Torx Flange Screw M6 X 35

420440274

$1.01

33

Gasket Kit, Engine

420684150

$423.49

34

Long Block 1010

420101015

$3,995.99
