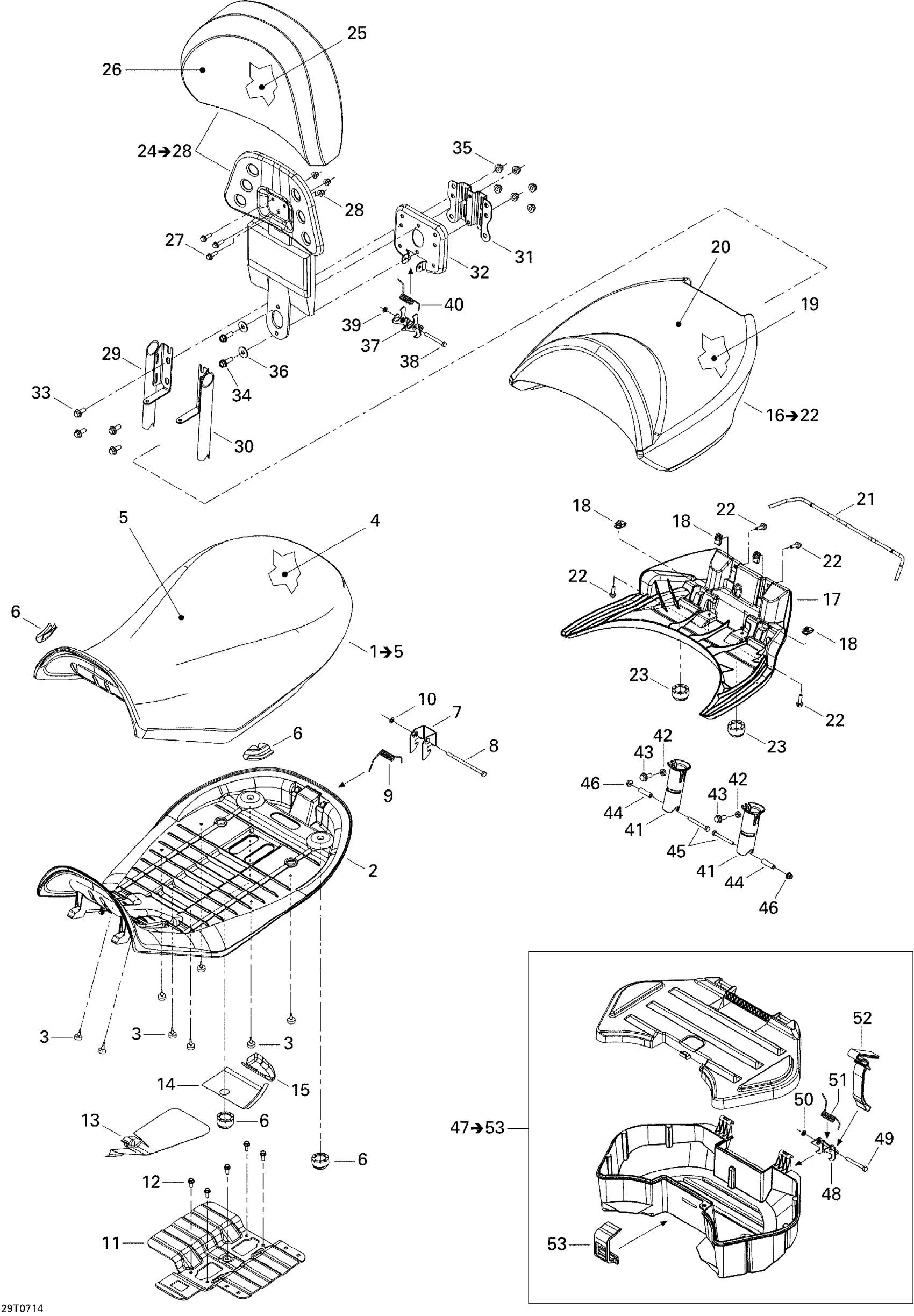

Can-Am Outlander MAX 500 STD 4 X 4, 2007 09- Seat Diagram

#

Description
Price

1

Seat Assembly | Includes 1 to 6

708001649

$489.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$4.19

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Seat Cover

708000538

$88.99

6

Bumper Rubber

708000760

$10.49

7

Latch, Black

708000144

$11.99

8

Hex. Screw M6 X 110

230061044

$1.48

9

Spring

708000369

$9.19

10

Push Nut

732610072

$2.19

11

Seat Reinforcement

708000512

Unavailable

12

Hex. Flange Screw M6 X 12

210261250

$1.90

13

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

14

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

15

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

16

Rear Seat Ass'y | Includes 16 to 20

708000805

$234.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Panel Nut M6 X 1.0

250100198

$2.11

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Seat Cover

708000457

$164.49

21

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

22

Hex. Flange Screw M6 X 20

207662044

$2.00

23

Bumper Rubber

708000760

$10.49

24

Backrest Ass'y

708000809

$519.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Backrest Cover

708000465

$126.99

27

Hex. Flange Screw M6 X 20

207662044

$2.00

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

30

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

31

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

32

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

33

Hex. Flange Screw M8 X 20

207682044

$1.15

34

Hex. Flange Screw M8 X 25

207682544

$1.35

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

Flat Washer 8 mm

234082410

$1.47

37

LATCH - Call your local BRP dealership

708000448

Unavailable

38

Hex. Screw M6 X 55

207065544

$2.11

39

Push Nut

732610072

$2.19

40

Spring

708000369

$9.19

41

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

42

Hex. Jam Nut M8

232180600

$0.67

43

Hex. Screw M8 X 20

207182044

$0.74

44

INNER BUSHING - Call your local BRP dealership

708000462

Unavailable

45

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47

708200119

Unavailable

48

LATCH - Call your local BRP dealership

708200066

Unavailable

49

Hex. Screw M6 X 55

207065544

$2.11

50

Push Nut

732610072

$2.19

51

Spring

708000369

$9.19

52

BELT - Call your local BRP dealership

510004495

Unavailable

53

Cover Latch

708200120

$15.99
