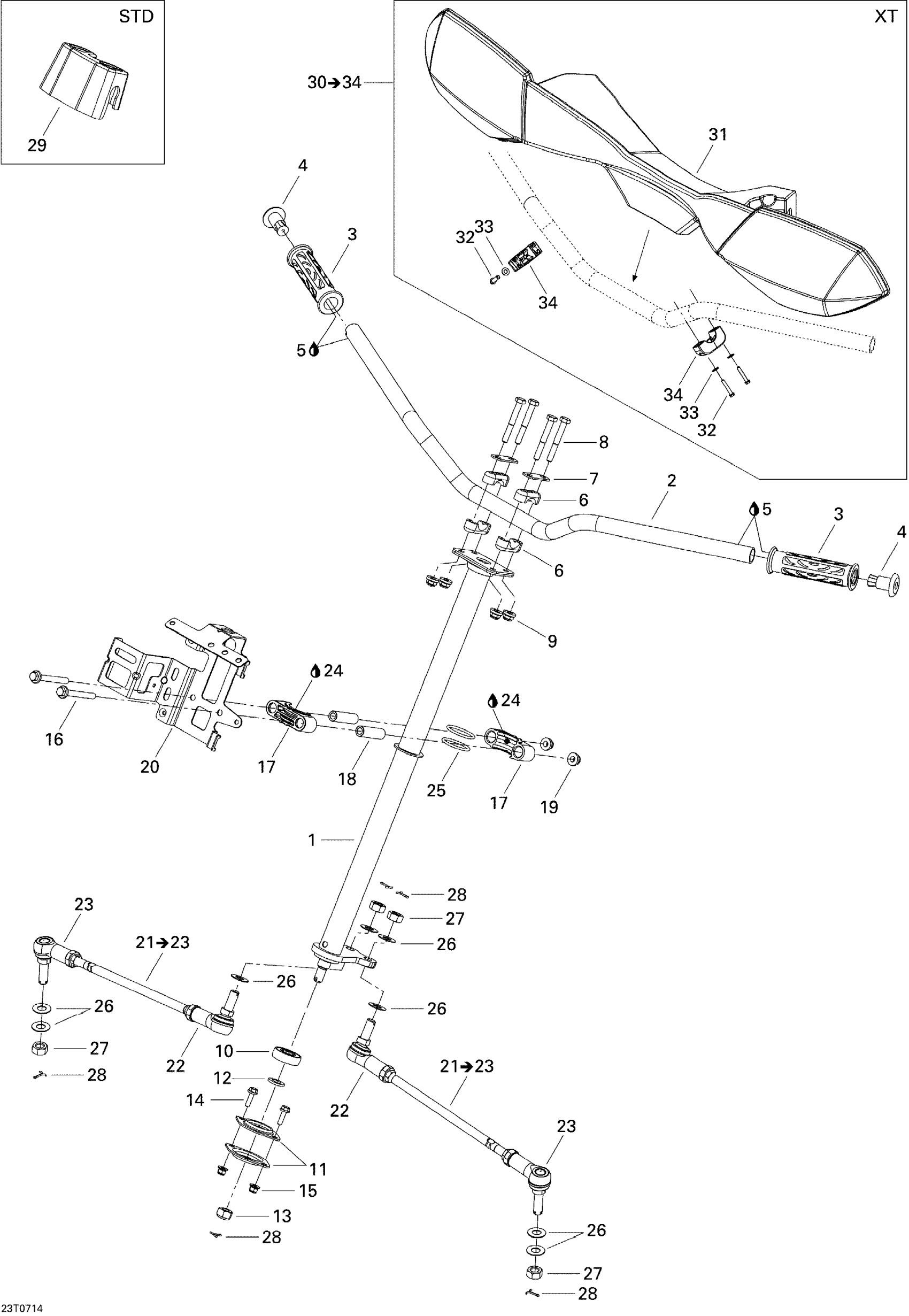

Can-Am Outlander MAX 500 STD 4 X 4, 2007 07- Steering System STD Diagram

#

Description
Price

1

Main Tube, Black

709400971

$184.99

2

Black, Handle Bar

709401240

$69.99

3

Handle Grip

709400493

$14.83

4

End Piece

709400449

$8.49

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$22.49

7

Stiffner

709400509

$4.69

8

Hex. Screw M8 X 60

207086046

$2.85

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Hex. Flange Elastic Nut M12

250000047

$1.90

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Screw M8 X 70

207687044

$7.41

17

Half Bushing

709400471

$14.30

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

22

Ball Joint, RH Threads

709400487

$52.99

23

LH Ball Joint

709402303

$36.99

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$7.65

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

Steering Cover | STD

709400278

$13.99

30

Not Available As Spare Parts

XXX

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable
