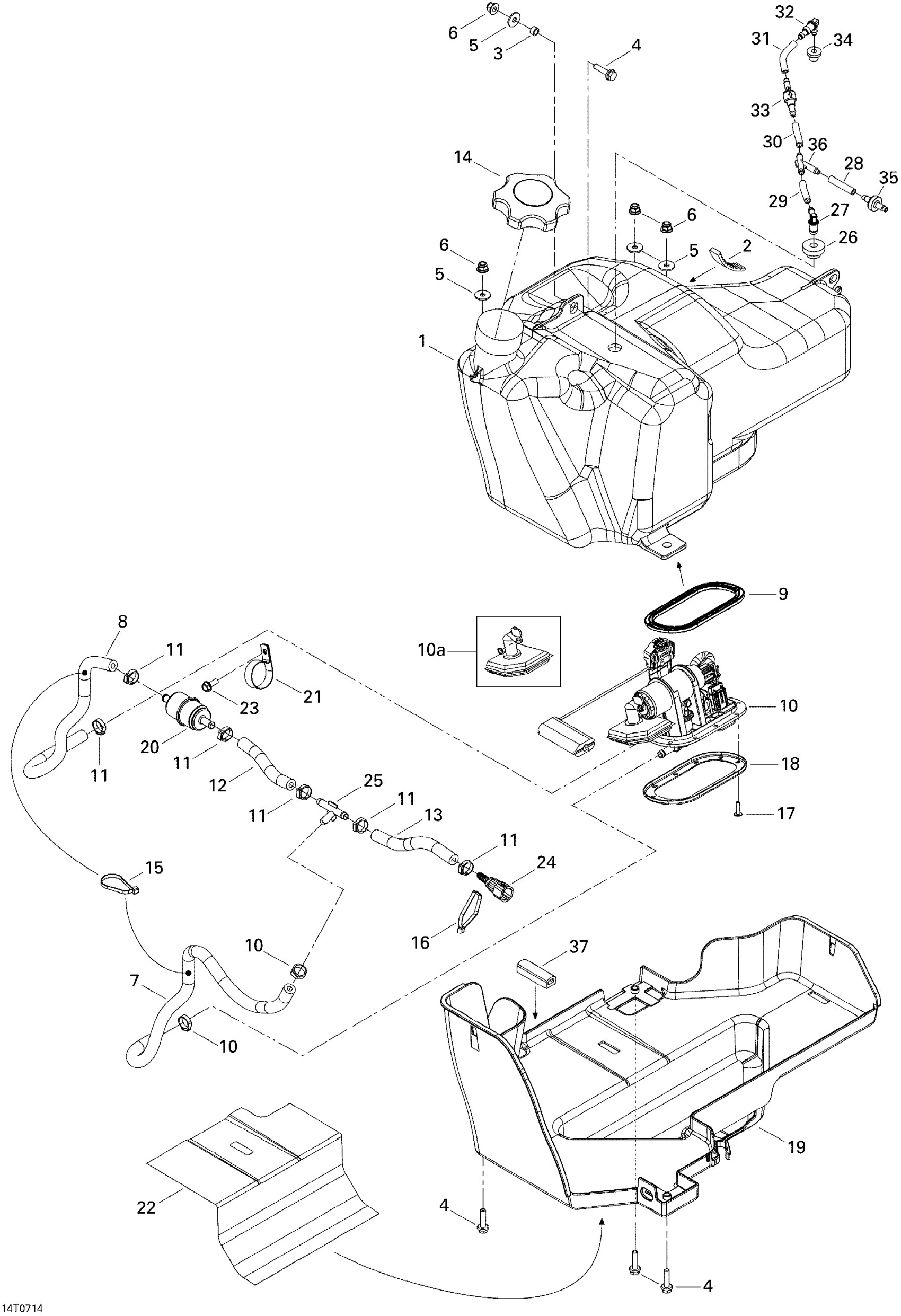

Can-Am Outlander MAX 500 STD 4 X 4, 2007 02- Fuel Tank Diagram

#

Description
Price

1

Fuel Tank

709000084

Unavailable

2

Vinyl Strip

709000153

Unavailable

3

Bushing | DS 650 X

293900104

$5.50

4

Hex. Flange Screw M6 X 25

207662544

$0.64

5

Flat Washer

250200082

$0.42

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

8

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

9

Joint Etanche *Gasket

709000540

$36.99

10

Fuel Pump

703500771

$361.99

10a

Not Available As Spare Part - Friction Washer

Unavailable

11

Oetiker Clamp

293650046

$2.89

12

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

13

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

14

Fuel Tank Cap

513033025

$24.49

15

Tie-Rap 180 mm

414115200

$0.11

16

Tie Wrap 368 mm

293750008

$1.04

17

Torx Screw M4 X 16

250000750

$1.68

18

Pump Ring

709000170

$17.83

19

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

20

Fuel Filter

513034047

$21.99

21

Open Clamp

513033047

$5.19

22

REFLECTIVE SHEET - Call your local BRP dealership

709000149

Unavailable

23

Hex. Flange Screw M6 X 12

210261250

$1.90

24

Female Quick Fitting Ass'y

709000125

$15.49

25

Y-Fitting, 5/16''

293710136

$6.49

26

Grommet

293830136

$10.07

27

Male Connector

414580700

$4.12

28

Polyurethane Hose 10000Mm Long

219704410

$56.99

29

Polyurethane Hose 10000Mm Long

219704410

$56.99

30

Polyurethane Hose 10000Mm Long

219704410

$56.99

31

Polyurethane Hose 10000Mm Long

219704410

$56.99

32

Elbow Male Connector

414580600

$4.23

33

Check Valve

275500505

$31.99

34

Grommet

293720029

$1.59

35

Check Valve

275500398

$10.99

36

Y-Fitting

293710059

$9.69

37

Was 293200017 Neoprene Seal

219704365

$149.99
