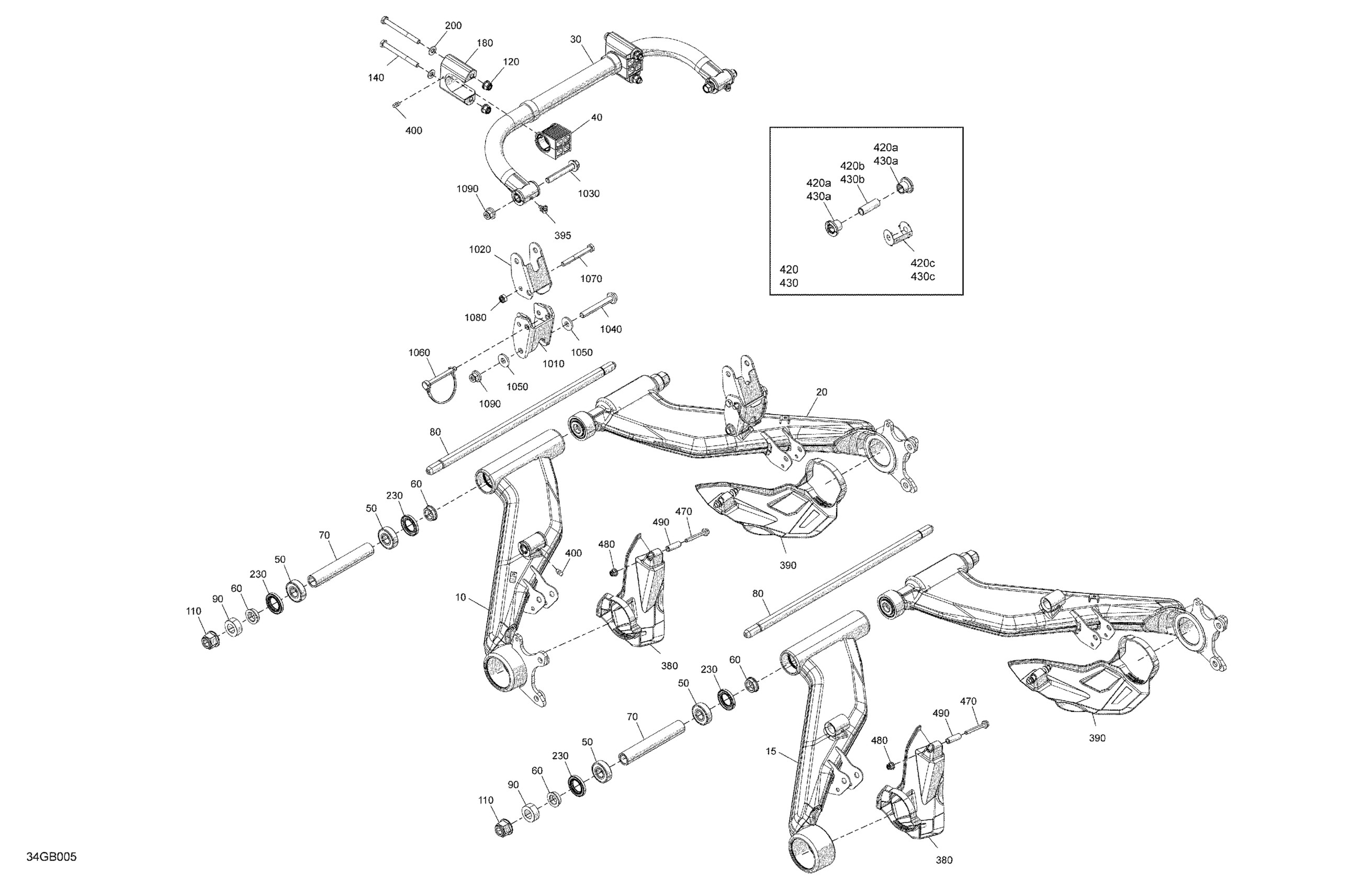

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - DPS - North America, 2022 05- Suspension - Rear Components Diagram

Black LH Rear Swing Arm

706003471

$296.99

Black, LH Rear Swing Arm

706001646

$296.99

Black, RH Rear Swing Arm

706004525

$296.99

Sway Bar

706001678

$126.99

Stabilizer Bar Bushing

706004640

$8.89

Ball Bearing

293350145

$13.75

Spacer

706001282

$12.99

Spacer

706002258

$28.99

Axial Pivot M16

706001664

$72.99

Flat Washer M17

250200112

$7.99

Hex. Flange Elastic Nut M16

233211466

$1.99

Hex. Flange Elastic Nut M8

233281434

$2.11

Hex. Screw M8 X 85

250001035

$1.89

Bushing Holder

706001099

$33.99

Flat Washer 8 mm

234081410

$0.83

Seal

293200144

$5.09

LH Protector

706002482

$15.82

RH Protector

706002483

$14.82

Grease Fitting 90°

293550056

$1.15

Grease Fitting

250000315

$5.82

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Hex. Flange Screw M6 X 50

207665044

$4.12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Bushing

707001376

$5.24

Linkage Outer Part

706003107

$24.99

Linkage Inner Part

706003109

$24.99

Hex. Flange Screw M10 X 65

207606536

$4.44

Hex. Flange Screw M10 X 75

250001038

$6.77

Washer

505073634

$2.42

Pin Onto The Shaft

706001602

$15.80

Hex. Screw M8 x 65

207086544

$1.47

Hex. Elastic Stop Nut M8

232581414

$0.56

Hex. Flange Elastic Nut M10

233201436

$2.11
