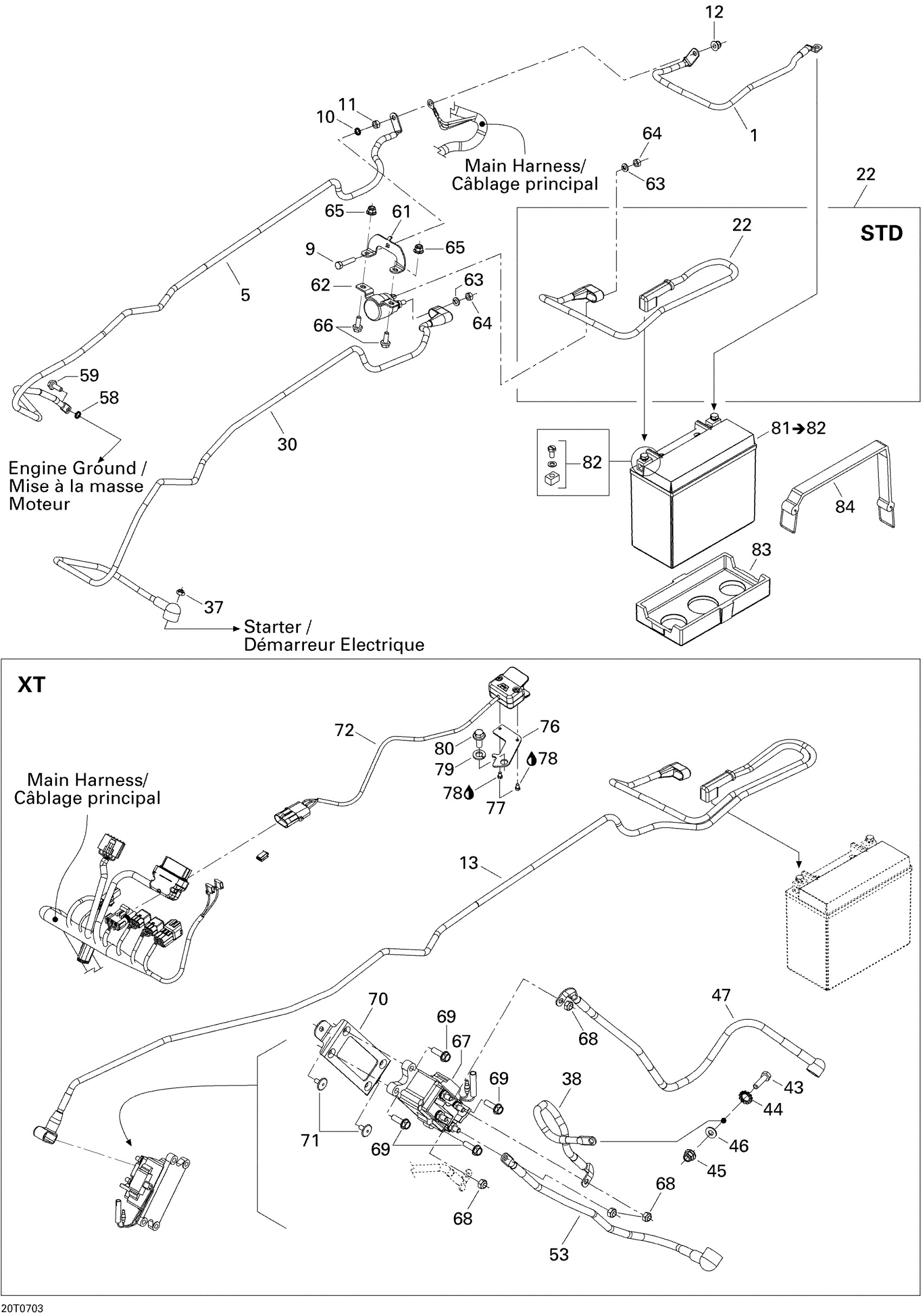

Can-Am Outlander MAX 400 XT 4 X 4, 2007 10- Electrical System XT Diagram

#

Description
Price

1

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

5

GROUND CABLE - Call your local BRP dealership | Includes 5 to 8

710000844

Unavailable

9

Hex. Screw M6 X 25

207162544

$1.15

10

External Serrated Lock Washer 6 mm

234461608

$1.15

11

Hex. Nut M6

232061414

$0.53

12

Hex. Flange Nut M6

233061414

$1.68

13

Positive Cable Ass'y | XT, Includes 20 to 28

710001824

$65.99

22

Not Available As Spare Parts

XXX

Unavailable

30

POSITIVE CABLE - Call your local BRP dealership | Includes 30 to 36

710001819

Unavailable

37

Elastic Stop Nut M6

232561414

$0.55

38

NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41

710000455

Unavailable

43

Hex. Flange Screw M6 X 20

207662044

$2.00

44

Lock Washer Serrated M6

250200041

$1.15

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Flat Washer

224061121

$0.53

47

Winch Positive Cable, Blue | XT Models, Includes 46 To 51

710000451

Unavailable

53

WINCH POSITIVE CABLE, YELLOW - Call your local BRP dealership | XT Models, Includes 53 To 57

710000454

Unavailable

58

External Serrated Lock Washer 6 mm

234461608

$1.15

59

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

61

SOLENOID SUPPORT - Call your local BRP dealership

710001260

Unavailable

62

Starter Relay

515176011

$62.49

63

Lock Washer Helical M6

234161601

$1.15

64

Hex. Nut M6

232061600

$1.15

65

Hex. Flange Nut M6

233061414

$1.68

66

Hex. Flange Screw M6 X 12

207661244

$2.11

67

Winch Solenoid | XT Models

710001000

$121.99

68

Elastic Stop Nut M6

232561414

$0.55

69

Hexagonal Head Screw

210262050

$2.11

70

WINCH RELAY SUPPORT - Call your local BRP dealership | XT

710001813

Unavailable

71

Pop Rivet 3/16"

390406500

$0.88

72

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

76

WINCH INTERRUPTER SUPPORT - Call your local BRP dealership | XT Models

710000755

Unavailable

77

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

78

Loctite 243, 10 ml

293800060

$21.49

79

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

80

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

81

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

82

Battery Bolt Kit

250000282

$7.29

83

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

84

Retainer Strap

293850097

$11.64
