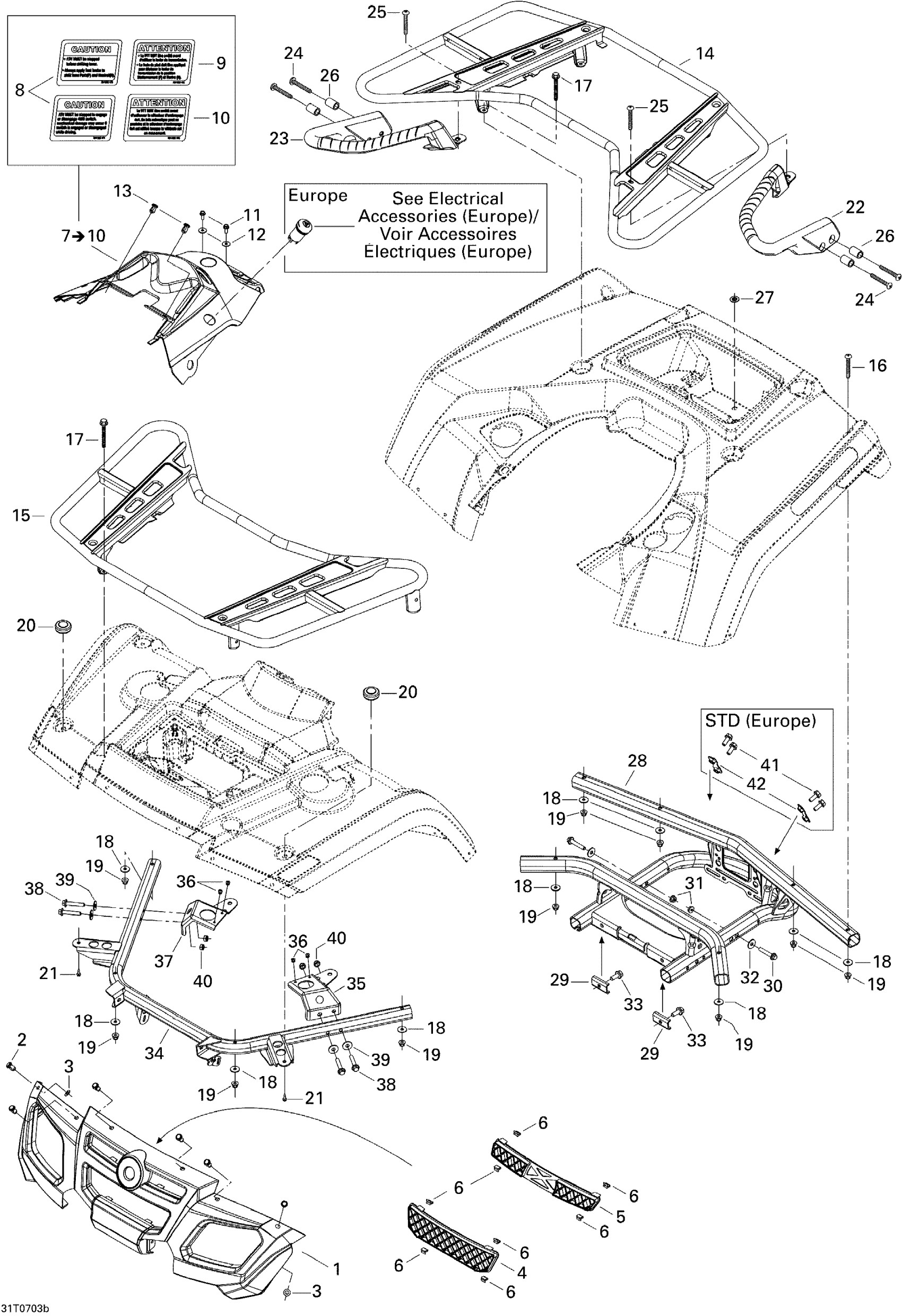

Can-Am Outlander MAX 400 XT 4 X 4, 2007 09- Body And Accessories 2, XT Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

Unavailable

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

Unavailable

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

Washer

506151252

$3.17

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

Unavailable

6

Clip | Europe Models

517306751

$2.09

7

DASH-BOARD, RED - Call your local BRP dealership | Includes 7 to 10, Viper Red

703500668

Unavailable

7

Dash-board, Green | Includes 7 to 10, Laurentian Green

703500674

Unavailable

7

DASH-BOARD, YELLOW - Call your local BRP dealership | Includes 7 to 10, Yellow

703500670

Unavailable

7

Dash-board, Red | Includes 7 to 10, Viper Red (Europe)

703500671

Unavailable

7

DASH-BOARD, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green (Europe)

703500672

Unavailable

7

DASH-BOARD, YELLOW - Call your local BRP dealership | Includes 7 to 10, Yellow (Europe)

703500673

Unavailable

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

10

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

11

Hex. Flange Screw M6 X 16

210261650

$1.67

12

Flat Washer

250200082

$0.42

13

Tuflok Plastic Rivet

293150230

$1.47

14

Rear Luggage Rack

705002617

$275.49

15

Front Luggage Rack

705002616

$275.49

16

Torx Truss Screw M6 X 50

250000749

$3.17

17

Hex. Flange Screw M6 X 50

207665044

$4.12

18

Flat Washer

224061201

$1.37

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

RUBBER CAP - Call your local BRP dealership

705002042

Unavailable

21

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

22

LH Handle

705001944

Unavailable

23

RH Handle

705001945

Unavailable

24

Hex Torx Truss M8 X30

250000745

$3.17

25

Torx Truss Screw M8 X 16

250000746

$3.38

26

Bushing

705002153

$11.99

27

CAP - Call your local BRP dealership

414859400

Unavailable

28

Rear Support

705003656

$275.49

29

U Reinforcement

705003647

$8.19

30

Hex. Flange Screw M8 X 50

207685044

$1.69

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

Flat Washer 8 mm

234082410

$1.47

33

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

34

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

35

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

36

Pop Rivet 3/16"

390402300

$0.75

37

RH Anchor Plate

705002997

$18.49

38

Hex. Flange Screw M8 X 45

207684544

$3.80

39

Flat Washer 8 mm

234082410

$1.47

40

Hex. Elastic Stop Nut M8

232581414

$0.56

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable
