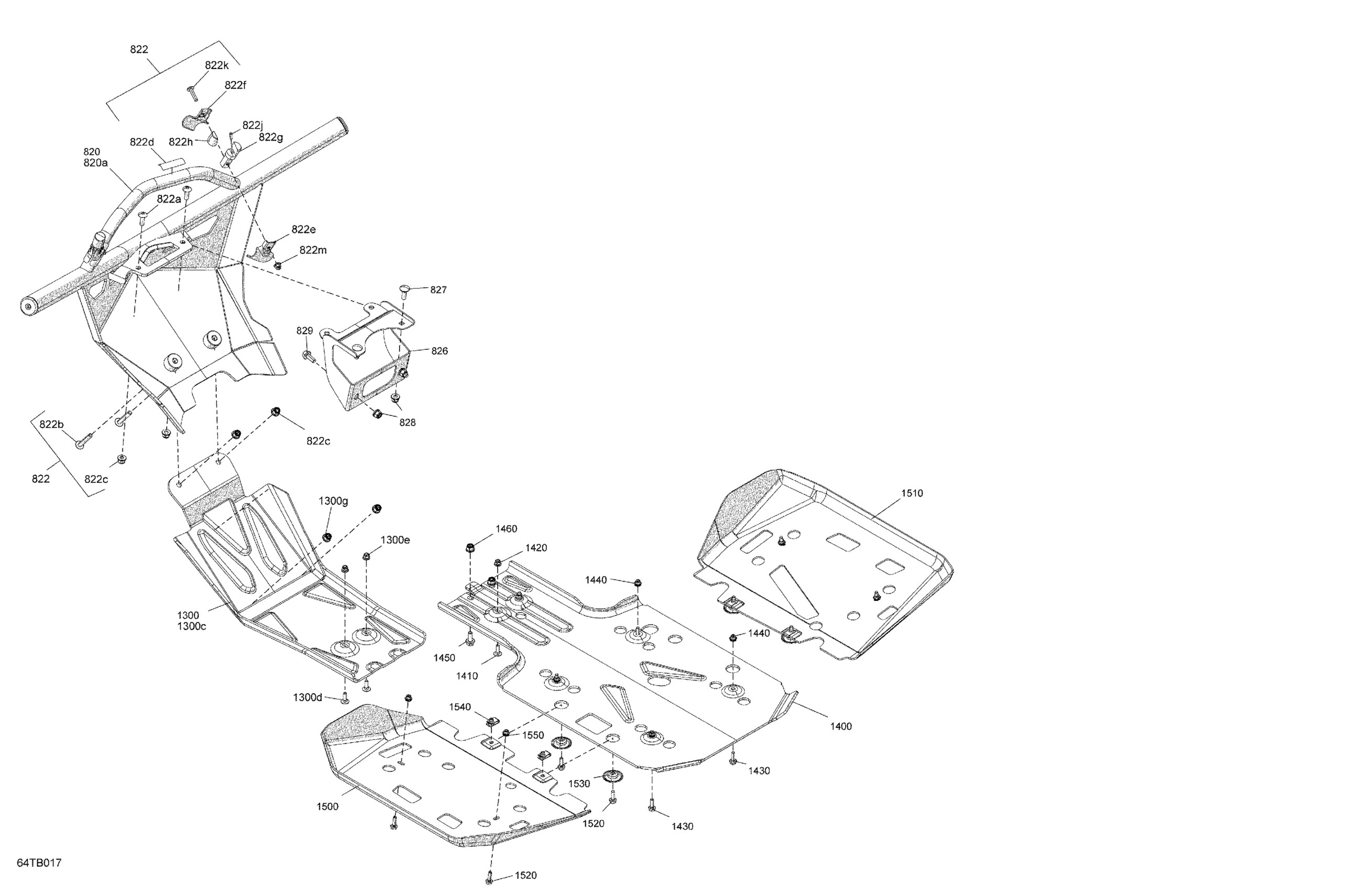

Can-Am 003 - Outlander 1000R EFI - XXC - North America, 2022 07- Body - Skid Plate and Bumper Diagram

Description

Price

820

Front Bumper Ass'y | Model XXC

715007687

$779.99

822

Not Available As Spare Part - Friction Washer

Unavailable

822a

Torx Truss M8 X 25

250000874

$2.11

822b

Torx Truss Screw M8 X 50

250000761

$7.51

822c

Hex. Flange Elastic Nut M8

233281414

$1.47

822d

Warning Decal Bumper

704906938

Unavailable

822e

Clamp_Mounting Lh B-282

705018280

$44.99

822f

Clamp_Mounting Rh B-282

705018287

$44.99

822g

End Piece

705016578

$28.99

822h

Sliding Block

705016579

$20.49

822j

Socket Set Screw M5 X 20 | Europe

206252044

$1.48

822k

Stainless, Torx Screw M6 X 30

250000842

$2.11

822m

Hex. Flange Elastic Nut M6

233261494

$1.58

826

Bumper Support

705012722

$76.99

827

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

828

Hex. Flange Elastic Nut M8

233281414

$1.47

829

Hex. Flange Screw M8 X 25

207682544

$1.35

1300

Front Skid Plate | Package Hunter

715000926

$96.49

1300b

Decal "Can-Am" | Not Shown

704904566

$10.99

1300c

Front Skid Plate | Package Hunter

715000926

$96.49

1300d

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

1300e

Flange Elastic Nut M6

233261434

$4.44

1300f

Hex Torx Truss M8 X30

250000745

$3.17

1300g

Hex. Flange Elastic Nut M8

233281414

$1.47

1400

Central Skid Plate | Package-XXC

705204031

$174.49

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

1420

Flange Elastic Nut M6

233261434

$4.44

1430

Hex. Flange Screw M6 X 20

207662054

$1.01

1440

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1450

Hex. Flange Screw M8 X 25

207682544

$1.35

1460

Hex. Flange Elastic Nut M8

233281414

$1.47

1500

LH Skid Plate | Package Hunter

705010659

$121.49

1510

RH Skid Plate | Package Hunter

705010660

$121.49

1520

Hex. Flange Screw M6 X 20

207662054

$1.01

1530

Cup | Package Hunter

705007171

$7.89

1540

Panel Nut M6 X 1.0

250100198

$2.11

1550

Insert Half Hex Body M6 x 1.0

250100199

$3.19
