Description

Price

1

Front Drive Axle Ass'y | 4X4 / Includes 1 to 5

705400912

$179.99

3

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Front Bushing Shaft Kit | 4X4

703500678

$114.99

7

Wear Ring | 4X4

705400036

$26.49

8

Front Differential | Includes 8 to 31

703500907

$1,579.99

9

Oil Seal | 4X4

705401481

$19.49

10

Nut | 4X4

705401603

$35.99

11

Ball Bearing | 4X4

705500260

$31.99

12

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

13

Needle Bearing | 4X4

705500261

$19.99

14

Ball Bearing | 4X4

705401606

$51.99

15

Ball Bearing | 4X4

293350044

$31.99

16

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

17

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

18

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

19

Screw | 4X4

705401601

$10.49

20

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

21

Seal | 4X4

705500265

$18.76

22

Front Cover

705400646

Unavailable

23

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

24

Drain Plug | 4X4

705500894

$11.49

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

O-Ring | 4X4

705500267

$7.65

28

Gasket | 4X4

705401618

$18.49

29

Pinion Gear Shim 1.67 mm

705502061

$18.99

30

Shim | 4X4

705401604

$57.99

31

Shim | 4X4

705401604

$57.99

32

Fill Level Plug | 4X4

705500504

$10.01

33

Copper Washer | 4X4

705500506

$0.45

34

RH Half Shaft | Includes 34 to 39

705401579

$243.99

35

CV Joint

705500560

Unavailable

36

Wheel Boot Kit

705400511

$42.49

37

Differential Boot Kit

705400512

$42.49

38

RH Plunging Joint

705400513

Unavailable

39

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

40

LH Knuckle

705400816

$206.49

41

RH Knuckle

705400818

$206.49

42

LH Half Shaft | Includes 42 to 47

705401578

$243.99

43

CV Joint

705500560

Unavailable

44

Wheel Boot Kit

705400511

$42.49

45

Differential Boot Kit

705400512

$42.49

46

LH Plunging Joint

705400514

Unavailable

47

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

48

Ball Bearing

293350150

$52.99

49

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

50

Circlip

293370019

$4.68

51

Hex. Flange Screw M10 X 125

230602546

$7.41

52

Hex. Flange Elastic Nut M10

233201436

$2.11

53

Wear Sleeve | 4X4

705501121

$7.90

54

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

56

Conical Spring Washer M18

250200171

$7.65

57

Hex. Flange Castellated Nut M18

232291413

$7.98

58

Cotter Pin

250400036

$2.11

59

Rubber Bellow | 4X4

705400552

$6.14

60

Oetiker Clamp

293650042

$3.09

61a

Not Available As Spare Parts

XXX

Unavailable

61b

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

62

Front Tire | XT

705400326

$134.99

63

Front Rim | XT

705400440

Unavailable

64

Rim Valve With Cap

705400193

$8.69

65

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

66

Wear Sleeve

705400780

$7.90

67

Flat Washer M10 | 4X4

250200014

$1.49

68

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

69

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

70

Synthetic Grease, 400 G

293550010

Unavailable

71

HOUSING - Call your local BRP dealership | 4X4

705400169

Unavailable

72

Actuator Ass'Y | Includes 72 to 74

715900502

$499.99

72a

Circlip | 4X4

293370042

$3.17

73

Fork | 4X4

705400274

$18.99

74

O-Ring

293300117

$4.44

75

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.28

76

UNION SHAFT - Call your local BRP dealership | 4X4

705400917

Unavailable

77

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

78

Dowell Pin | 4X4

250400025

$7.73

79

Ball Bearing | 4X4

705400249

$25.99

80

Slider | 4X4

705402139

$46.99

81

Circlip | 4X4

293370029

$5.19

82

Circlip | 4X4

293370030

$2.89

83

SWITCH - Call your local BRP dealership | 4X4

710000324

$28.99

84

Coupling Sleeve | 4X4

705400389

$31.99

85

Oil Seal | 4X4

293250138

$23.99

86

Shifter Lever Plate | 4X4

705401553

$20.99

87

Copper Washer

705601628

$4.44

88

Loctite 243, 10 ml

293800060

$21.49

89

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

90

O-Ring

293300091

$7.51

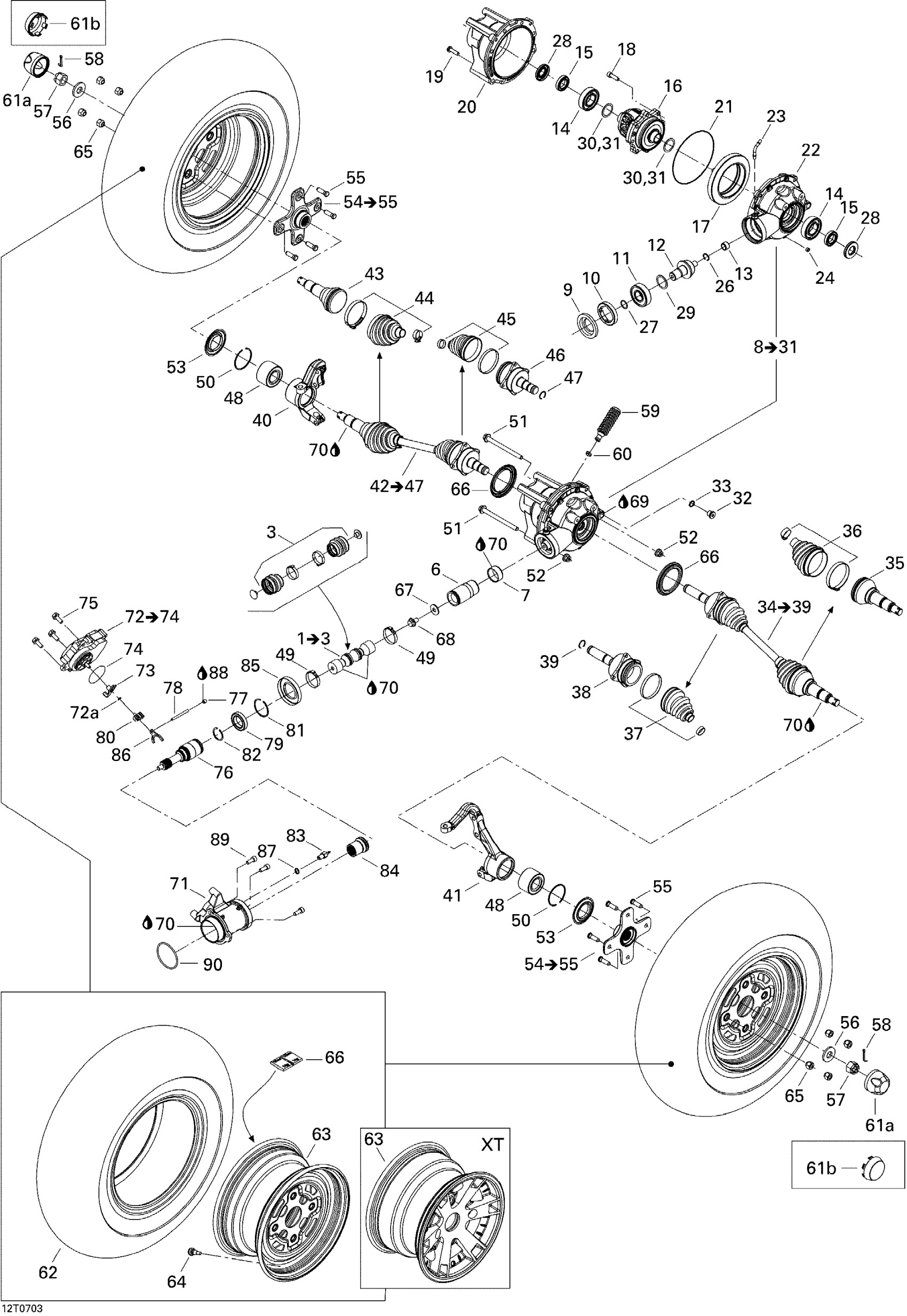

Can-Am Outlander MAX 400 XT 4 X 4, 2007 07- Drive System, Front XT Diagram

Front Drive Axle Ass'y | 4X4 / Includes 1 to 5

Rubber Boot Kit | 4X4 / Includes 3 to 5

Front Bushing Shaft Kit | 4X4

Wear Ring | 4X4

Front Differential | Includes 8 to 31

Oil Seal | 4X4

Nut | 4X4

Ball Bearing | 4X4

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

Needle Bearing | 4X4

Ball Bearing | 4X4

Ball Bearing | 4X4

Ens Differentiel*Differential Kit | 4X4

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

RING GEAR SCREW - Call your local BRP dealership | 4X4

Screw | 4X4

FRONT COVER - Call your local BRP dealership

Seal | 4X4

Front Cover

VENT VALVE - Call your local BRP dealership | 4X4

Drain Plug | 4X4

RETAINING RING - Call your local BRP dealership | 4X4

O-Ring | 4X4

Gasket | 4X4

Pinion Gear Shim 1.67 mm

Shim | 4X4

Shim | 4X4

Fill Level Plug | 4X4

Copper Washer | 4X4

RH Half Shaft | Includes 34 to 39

CV Joint

Wheel Boot Kit

Differential Boot Kit

RH Plunging Joint

CIRCLIP - Call your local BRP dealership | 4X4

LH Knuckle

RH Knuckle

LH Half Shaft | Includes 42 to 47

CV Joint

Wheel Boot Kit

Differential Boot Kit

LH Plunging Joint

CIRCLIP - Call your local BRP dealership | 4X4

Ball Bearing

Oetiker Gear Clamp 44.0MM | 4X4

Circlip

Hex. Flange Screw M10 X 125

Hex. Flange Elastic Nut M10

Wear Sleeve | 4X4

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

Wheel Stud M10 X 1.25 | 2X4

Conical Spring Washer M18

Hex. Flange Castellated Nut M18

Cotter Pin

Rubber Bellow | 4X4

Oetiker Clamp

Not Available As Spare Parts

WHEEL CAP - Call your local BRP dealership | XT

Front Tire | XT

Front Rim | XT

Rim Valve With Cap

Chrome Wheel Nut M10 X 1.25 | XT

Wear Sleeve

Flat Washer M10 | 4X4

Flange Screw M10 X 16, Scotch Grip | 4X4

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

Synthetic Grease, 400 G

HOUSING - Call your local BRP dealership | 4X4

Actuator Ass'Y | Includes 72 to 74

Circlip | 4X4

Fork | 4X4

O-Ring

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

UNION SHAFT - Call your local BRP dealership | 4X4

Pressure Screw M8 X 8 | 4X4

Dowell Pin | 4X4

Ball Bearing | 4X4

Slider | 4X4

Circlip | 4X4
