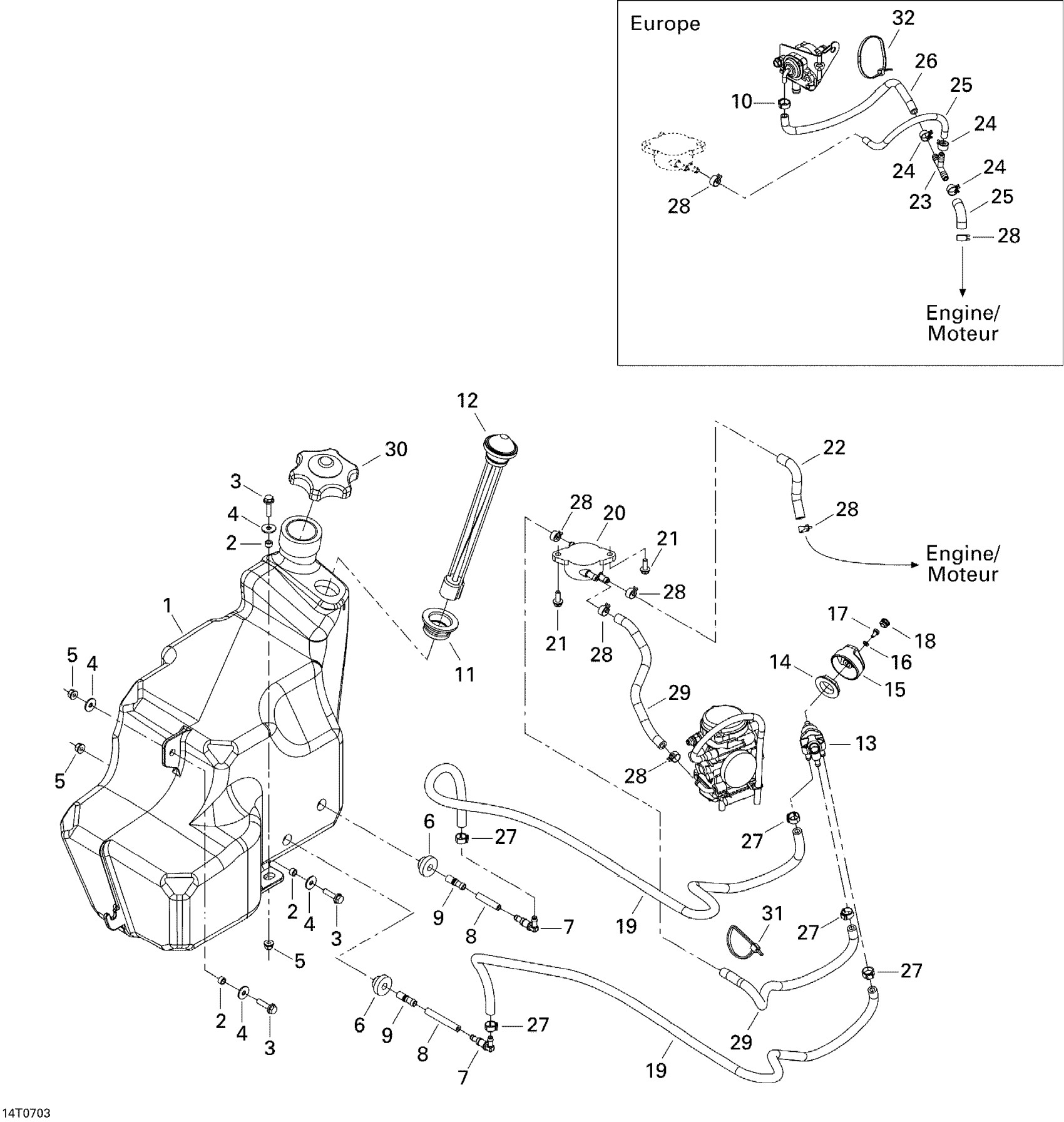

Can-Am Outlander MAX 400 XT 4 X 4, 2007 02- Fuel Tank Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000062

Unavailable

2

Bushing | DS 650 X

293900104

$5.50

3

Hex. Flange Screw M6 X 25

207662544

$0.64

4

Flat Washer

250200082

$0.42

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Grommet

570045500

$6.69

7

Elbow Male Connector

414580600

$4.23

8

Polyurethane Hose 10000Mm Long

219704410

$56.99

9

Fuel Filter

414865700

$10.99

10

Oetiker Clamp | Europe

293650044

$5.09

11

Grommet

293720058

$11.99

12

FUEL GAUGE - Call your local BRP dealership

709000083

Unavailable

13

Fuel Valve

275500098

$43.99

14

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

15

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

16

Flat Washer 4 mm

234040600

$0.55

17

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

18

Black, Cap

275500241

$3.49

19

Hose

219704549

$50.99

20

Fuel Pump

707200183

$84.99

21

Hex. Flange Screw M6 X 16

210261650

$1.67

22

PULSING FORMED HOSE - Call your local BRP dealership

709000148

Unavailable

23

T-Fitting | Europe

293710024

$14.75

24

Spring Clamp

414415200

$0.88

25

PULSATION HOSE - Call your local BRP dealership | Europe

709000115

Unavailable

26

PULSATION HOSE - Call your local BRP dealership | Europe

709000114

Unavailable

27

Oetiker Clamp

293650042

$3.09

28

Spring Clamp

414415200

$0.88

29

Hose

219704549

$50.99

30

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

31

Tie-Rap 180 mm

414115200

$0.11

32

Tie Wrap 368 mm

293750008

$1.04
