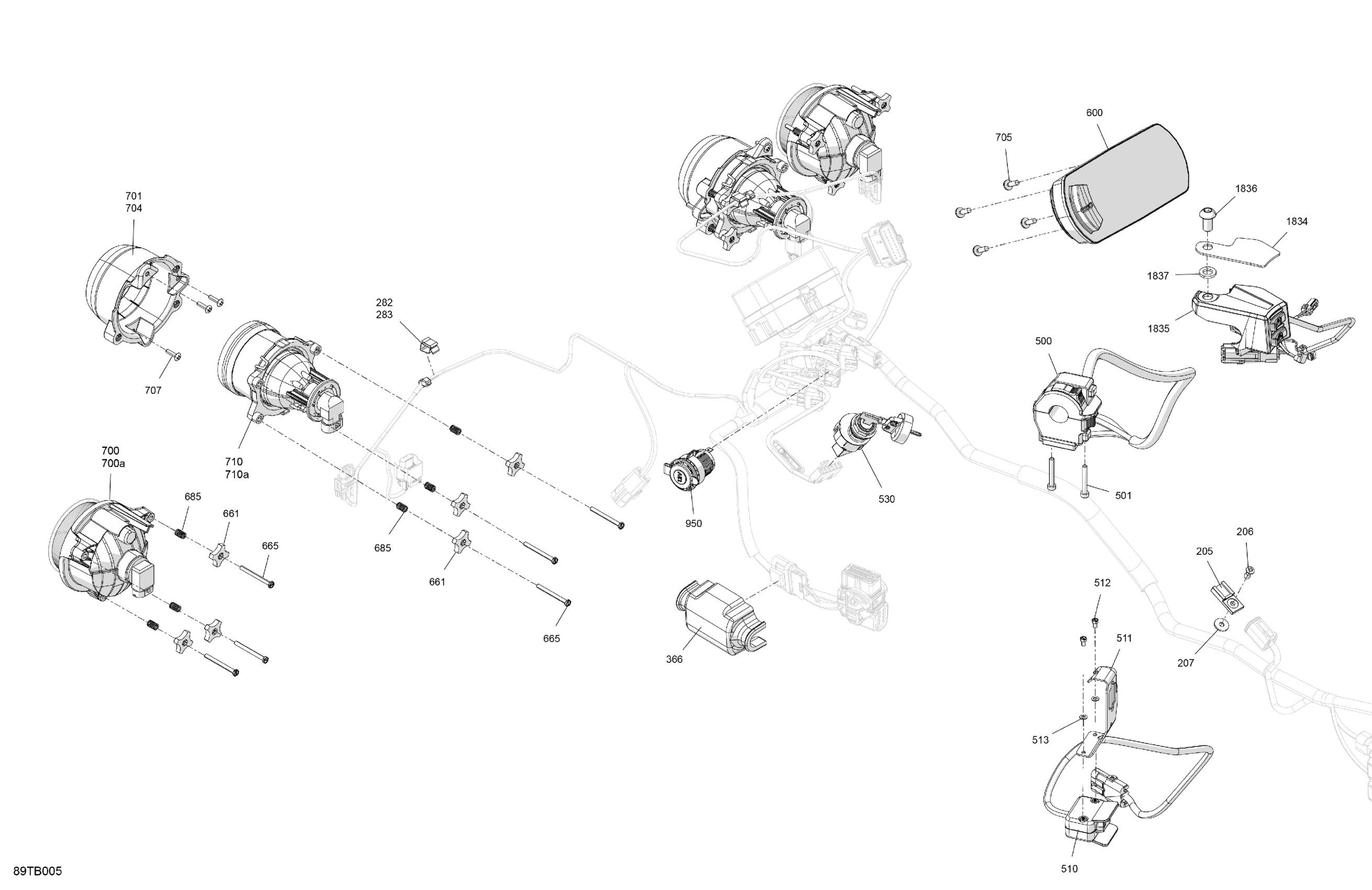

Can-Am 004 - Outlander 650 EFI - Mossy Oak Edition - North America, 2022 08- Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16 X ,551

293150301

$0.77

207

Washer | DS 650 X

391301600

$0.48

282

Clip

710010204

$1.67

283

Clip

710010204

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

Multifunction Switch

710008837

$80.49

501

Socket Head Screw M5 X 35

205053588

$1.90

510

Winch Switch

710007327

$13.18

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$10.99

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

513

Flat Washer 4 mm

234040600

$0.55

530

Ignition Switch | Except Model Pro, T3

710007864

$85.99

600

Multifunction Gauge Compact Mono

710008108

$409.99

661

Handle

572106600

$10.33

665

Hex. Screw K40 X 45

250000718

$2.11

685

Spring

517168600

$7.39

700

Low Beam | Includes 54 to 55

710006177

$119.99

700a

Bulb 12V 55W

715900141

$41.49

701

RH High Front Housing

710002291

$28.99

704

LH High Front Housing

710002292

$22.49

705

Torx Screw K50 X 16

250000720

$1.69

707

Phillips Screw K40 X 16

250000723

$0.98

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

950

DC Outlet

710001248

$37.99

1834

Top Plate

715004008

$21.99

1835

Multifonction Housing Ass'y

710004990

$154.99

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.69

1837

Washer

503192496

$0.77
