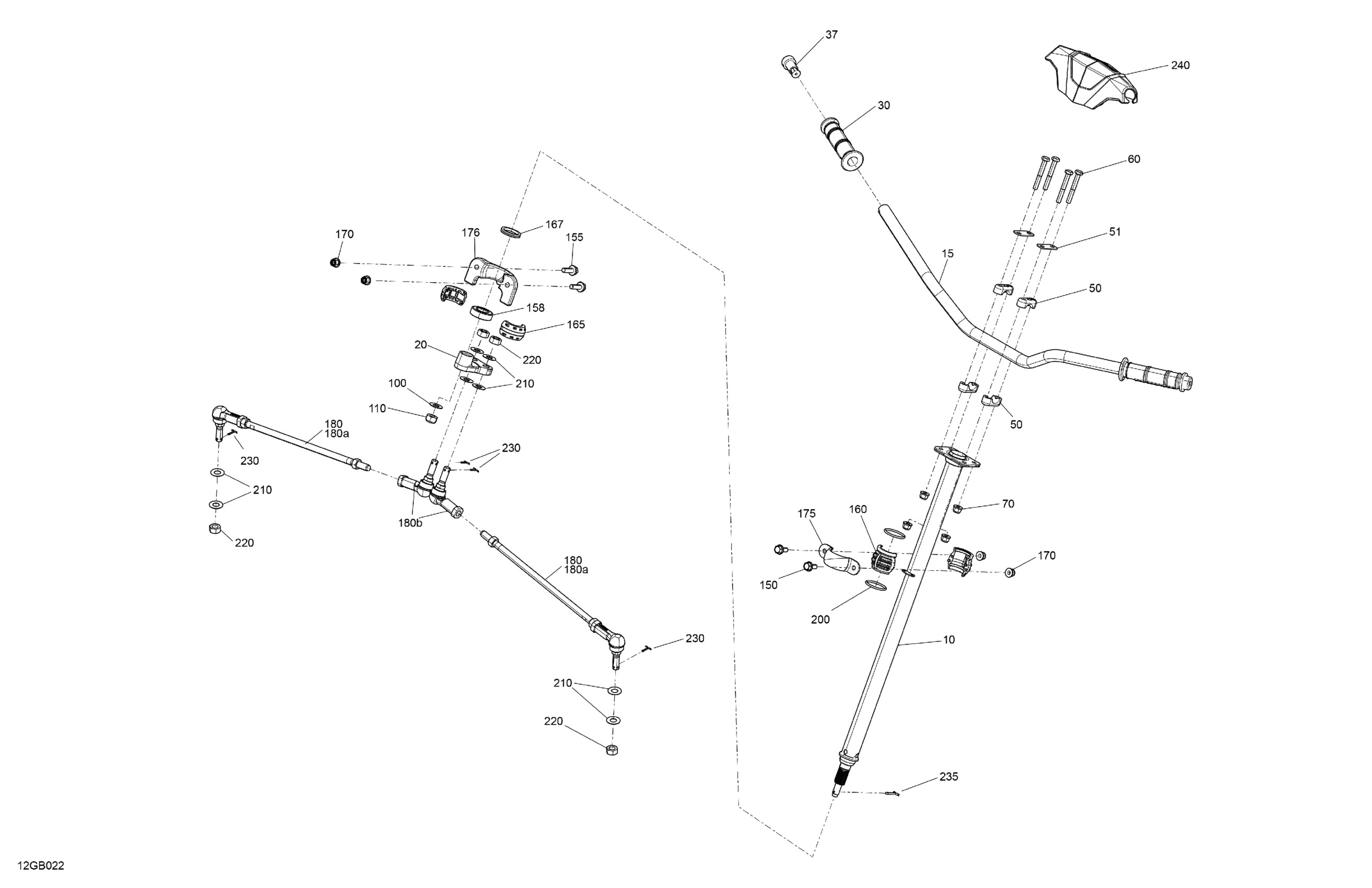

Can-Am 002 - Outlander 570 EFI - STD - (4GNB-4GNC) North America, 2022 03- Mechanic - Steering Diagram

#

Description
Price

10

Steering Axle

709402797

$149.99

15

Deep Black, Handlebar

709402872

$56.99

20

Pitman Arm | Package-STD

709401542

$28.99

30

Handle Grip

709400493

$14.83

37

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

51

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 60

207086046

$2.85

70

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Hardened Washer

706200281

$2.85

110

Hex. Flange Elastic Nut M12

250000047

$1.90

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682544

$1.35

158

Ball Bearing | Package-STD

503190396

$14.30

160

Spherical Half Bushing

709400783

$7.65

165

Spherical Half Bushing | Package-STD

709401370

$7.23

167

Seal

293250177

$7.29

170

Hex. Elastic Flange Nut M8

233281416

$1.48

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

180a

LH Ball Joint

709402303

$36.99

180b

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Hex Nut M12

250100239

$2.00

230

Cotter Pin

211400013

$0.37

235

Cotter Pin

250400034

$2.11

240

Cover

709400939

$24.99
