Description

Price

20

Hex. Flange Screw M6 X 20

207662054

$1.01

30

Flange Elastic Nut M6

233261434

$4.44

70

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

80

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Step

705007040

$97.99

120

RH Step

705007039

$129.99

121

Torx Screw K50 X 16

250000720

$1.69

125

LH Footrest

705004352

$30.99

126

RH Footrest

705005395

$36.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

320

Black, Rear Luggage Rack

715005986

$232.99

330

Torx Truss Screw M8 X 50

250000761

$7.51

340

Elastic Flange Nut M8

233281464

$1.01

350

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

475

Rubber Pad

293830163

$10.49

480a

Storage Cover | Model-Europe International

715004412

$219.99

480b

Storage Cover | Model-Europe International

715004412

$219.99

480c

LH Box Rear Latch

705007448

$11.99

480d

RH Box Rear Latch

705007921

$13.49

480e

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99

480f

Retaining Rod

705007531

$78.99

480g

Panel Nut M6 X 1.0

250100198

$2.11

480h

CAP - Call your local BRP dealership

414859400

Unavailable

485

Heat Deflector Sheet

705007487

$5.09

487

Panel Nut M6 X 1.0

250100198

$2.11

525

Rear Facia | Except Model- Europe

705005576

$45.99

530

Red Reflector

705011221

$14.49

535

Stopper Rubber

705014429

$5.95

540

Flange Elastic Nut M5

233251434

$2.00

580

Torx Truss Screw M6 X 25

250000807

$2.11

590

Torx Screw M6 X 20

250000722

$1.68

770

Tuflok Plastic Rivet

293150230

$1.47

995

Hex. Flange Screw M6 X 20

207662034

$2.11

1080

Tool Kit

704700168

$40.99

1080c

Socket Wrench 14/16MM

529000085

$6.55

1080f

Screw Driver

529000021

$3.29

1110

Adjustment Wrench

529000035

$2.09

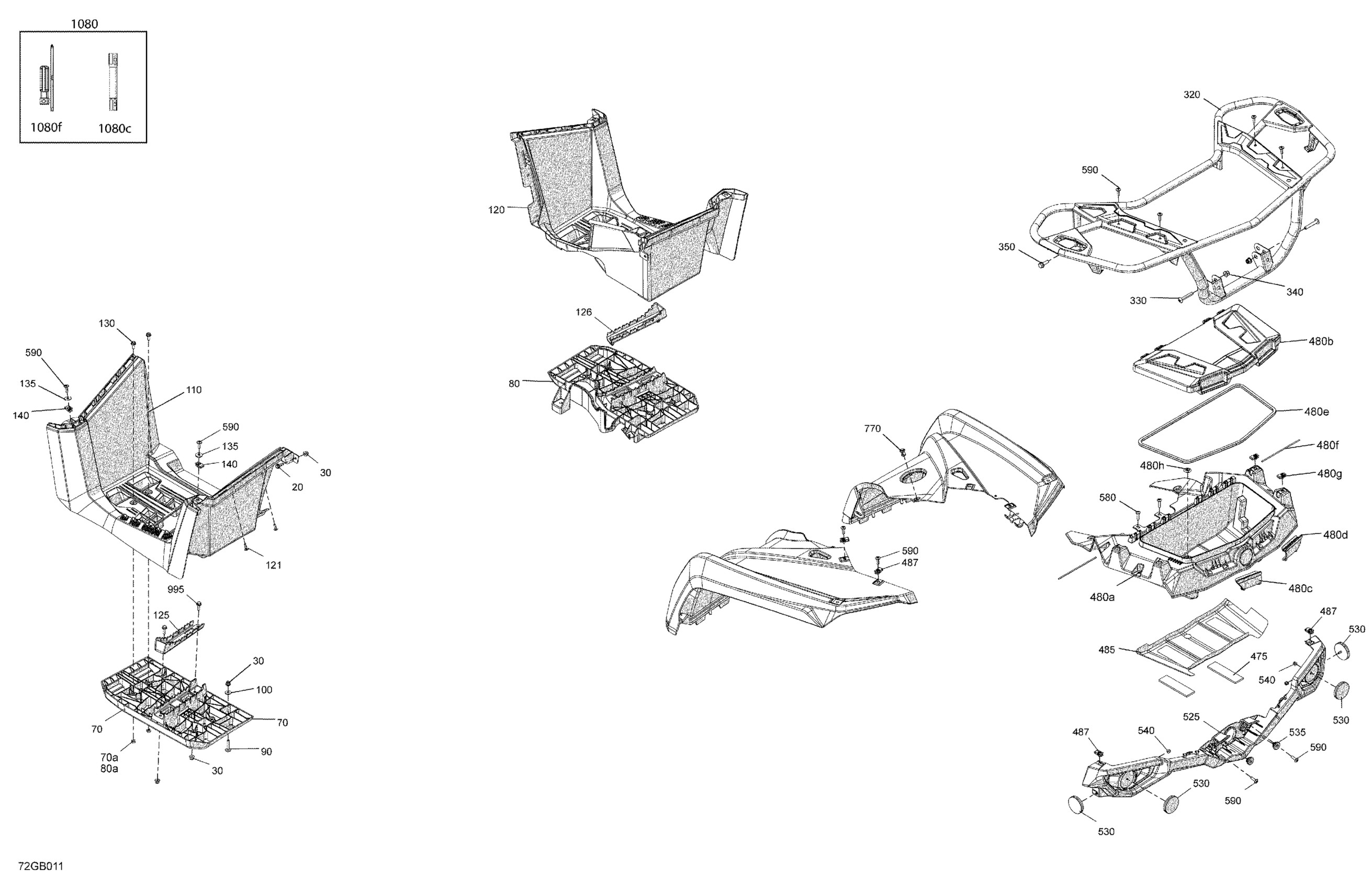

Can-Am 010 - Outlander 570 EFI - MR - North America, 2022 07- Body - Rear Section Diagram

Hex. Flange Screw M6 X 20

Flange Elastic Nut M6

LH Structural Footboard

Square Nut M6

RH Structural Footboard

Square Nut M6

Carriage Bolt M6 X 35

Flat Washer 6 mm

LH Step

RH Step

Torx Screw K50 X 16

LH Footrest

RH Footrest

Hex. Flange Screw M6 X 20

Flat Washer

Panel Nut M6 X 1.0

Black, Rear Luggage Rack

Torx Truss Screw M8 X 50

Elastic Flange Nut M8

Hex Flange Screw M8 X 25 S.Grip

Rubber Pad

Storage Cover | Model-Europe International

Storage Cover | Model-Europe International

LH Box Rear Latch

RH Box Rear Latch

Was 715900411 Neoprene Seal | Outlander MAX

Retaining Rod

Panel Nut M6 X 1.0

CAP - Call your local BRP dealership

Heat Deflector Sheet

Panel Nut M6 X 1.0

Rear Facia | Except Model- Europe

Red Reflector

Stopper Rubber

Flange Elastic Nut M5

Torx Truss Screw M6 X 25

Torx Screw M6 X 20

Tuflok Plastic Rivet

Hex. Flange Screw M6 X 20

Tool Kit

Socket Wrench 14/16MM

Screw Driver

Adjustment Wrench
