Description

Price

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M8

233281434

$2.11

50

Hex. Flange Screw M8 X 20

207682044

$1.15

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

100

Flat Washer 6 mm

234062410

$0.77

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

180

Console Support Insert

705010406

$16.99

185

Flat Washer M6, Stainless

234062600

$0.77

190

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

200

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$26.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Front Facia | Model-North America, International

705009334

$119.99

255

Panel Nut M6 X 1.0

250100198

$2.11

280

Front Frame

705017337

$264.99

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Washer

517124300

$0.19

390

Insert Half Hex Body M8 x 1.25

293450307

$2.69

415

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

420

Torx Screw M8 X 30

250000886

$2.11

430

Screw M4 X 16

250000725

$3.49

570

Push Nut

732610072

$2.19

590

Torx Screw M6 X 20

250000722

$1.68

610

Hex. Screw M8 X 20

236282054

$1.47

675

Phillips Screw K40 X 16

250000723

$0.98

680

Deflector Body Panel Kit

715007294

$55.99

685

Deflector Body Panel

705014061

$43.99

686

Push Nut

732610072

$2.19

687

Tuflok Plastic Rivet

293150230

$1.47

690

Engine Cover

705003444

$22.99

700

Gauge Support

705013983

$44.99

700a

Gauge Support

705013984

$19.99

703

Extruded Panel Nut M4 X 0.7

250100143

$8.49

704

Interior Gauge Support

705015548

$6.19

706

Gauge Trim

705015547

$22.49

708

Torx Head Screw M4 X 16

250000797

$2.09

720

Grommet

705003264

$4.09

730

RH Front Wheel Arch Protector

705017023

$28.49

750

LH Front Wheel Arch Protector

705017022

$28.49

770

Tuflok Plastic Rivet

293150230

$1.47

822

Elastic Flange Nut M8

233281464

$1.01

825

Pan Torx Screw M8 X 25

250000898

$2.11

1210

LH Side Front Reflector | Model-North America, International

704903972

$14.49

1220

RH Side Front Reflector | Model-North America, International

704903973

$13.49

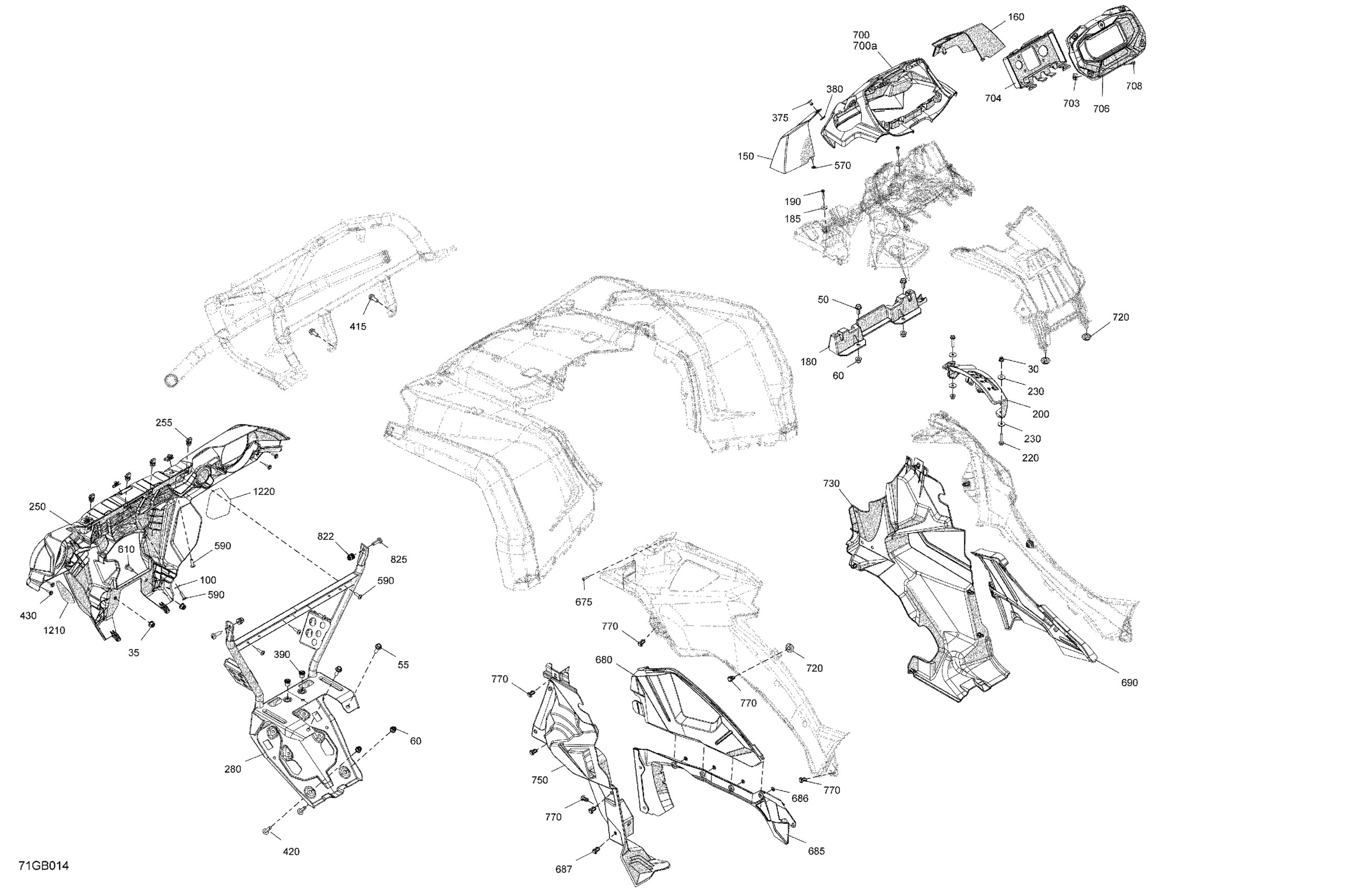

Can-Am 009 - Outlander 570 EFI - XMR - North America, 2022 07- Body - Front Section Diagram

Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 20

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Elastic Nut M8

Flat Washer 6 mm

LH Air Deflector

RH Air Deflector

Console Support Insert

Flat Washer M6, Stainless

Hex. Flange Screw K50 X 2.24 X 25

Shifter Gate Kit | Engine 570 Except Europe, T3

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Flat Washer

Front Facia | Model-North America, International

Panel Nut M6 X 1.0

Front Frame

Pop Rivet 3/16" | DS 650 X

Washer

Insert Half Hex Body M8 x 1.25

Hex. Flange Screw M8 X 20, Scotch Grip

Torx Screw M8 X 30

Screw M4 X 16

Push Nut

Torx Screw M6 X 20

Hex. Screw M8 X 20

Phillips Screw K40 X 16

Deflector Body Panel Kit

Deflector Body Panel

Push Nut

Tuflok Plastic Rivet

Engine Cover

Gauge Support

Gauge Support

Extruded Panel Nut M4 X 0.7

Interior Gauge Support

Gauge Trim

Torx Head Screw M4 X 16

Grommet

RH Front Wheel Arch Protector

LH Front Wheel Arch Protector

Tuflok Plastic Rivet

Elastic Flange Nut M8

Pan Torx Screw M8 X 25

LH Side Front Reflector | Model-North America, International

RH Side Front Reflector | Model-North America, International
