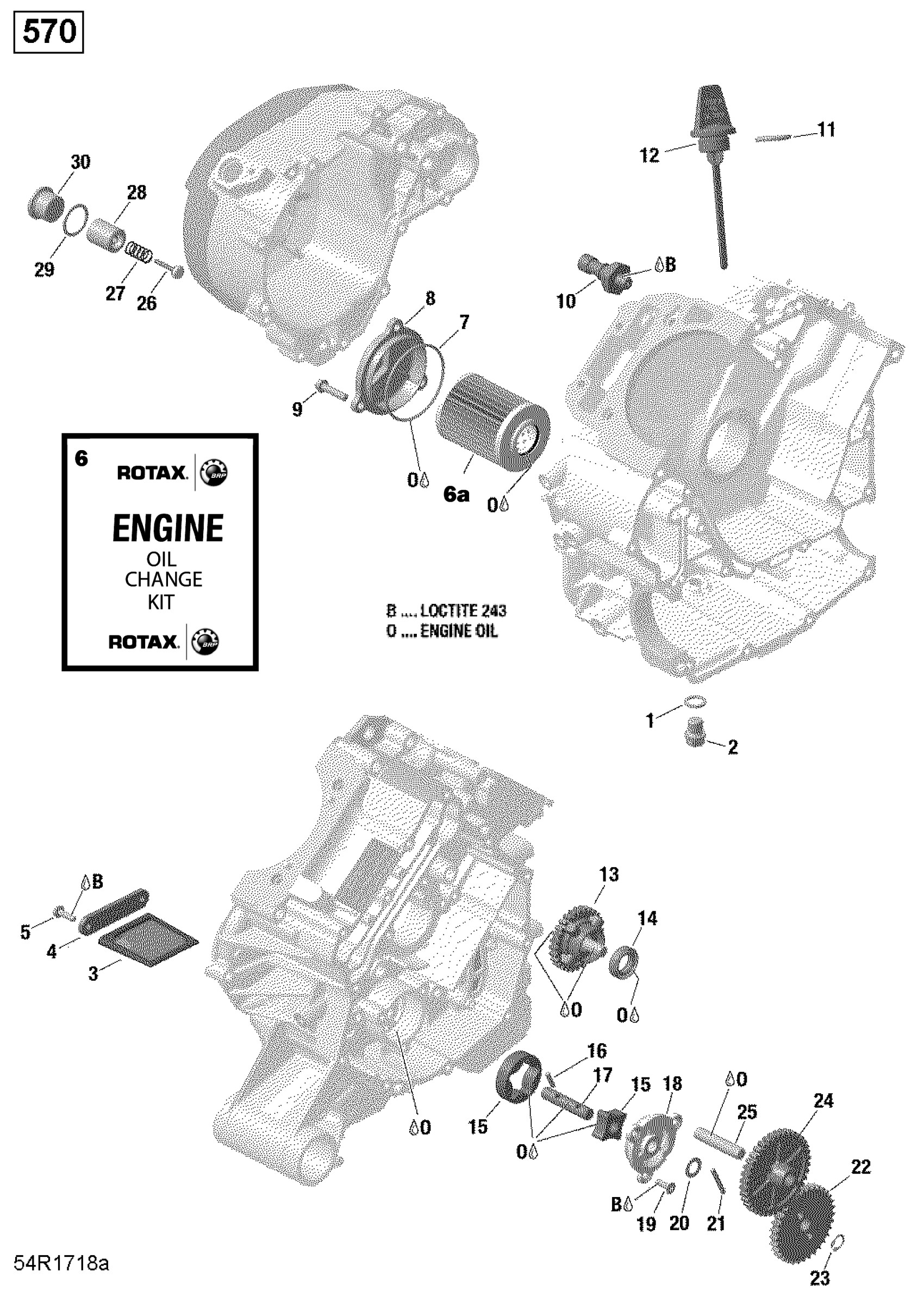

Can-Am 003 - Outlander 570 EFI - DPS - (2CNA-2CNB-2CNC) North America, 2022 01- Rotax - Engine Lubrication - 570 EFI Diagram

Description

Price

Copper Washer

420250640

$0.98

Magnetic Drain Plug M12

420241787

$17.99

Oil Sieve

420256322

$28.49

Cover Sieve

420210661

$14.28

Taptite Screw M5 X 16

420941928

Unavailable

4T 10W-50 Synthetic Oil Change Kit for Rotax 500 cc or more V-Twin engine

9779252

$70.99

CAN-AM Oil Change Kit 5W40 500 CC +

9779488

$67.99

Can-Am Oil Change Kit 0W40 500 Cc +

9779259

$72.99

Oil Filter

420256188

$13.77

O-Ring

420230923

$3.17

Oil Filter cover

420612135

$11.63

Torx Flange Screw M6 X 25

420440234

$3.06

Oil Pressure Switch

420256915

$40.99

O-Ring

420631640

$2.11

Oil Dipstick

420256802

$17.05

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

Oil Seal

420430555

$19.99

Oil Pump Rotor

420256348

$77.99

Needle Pin

420232731

$4.01

Oil Pump Shaft

420237059

$29.49

Oil Pump Cover

420210646

$48.49

Torx Head Screw M5 X 16

420640823

$1.90

Thrust Washer

420827590

$4.01

Needle Pin

420232431

$4.39

Oil Pump Gear, 33 Teeth

420434320

$13.77

Circlip

504152282

$3.17

Idle Gear, 38 Teeth

420434300

$13.77

Not Available As Spare Part - Friction Washer

Unavailable

Pressure Relief Valve

420656370

$19.19

Spring

420939481

$4.99

Housing

420256487

$7.41

Gasket Ring

420650465

$13.16

Plug Screw

420640271

$13.77
