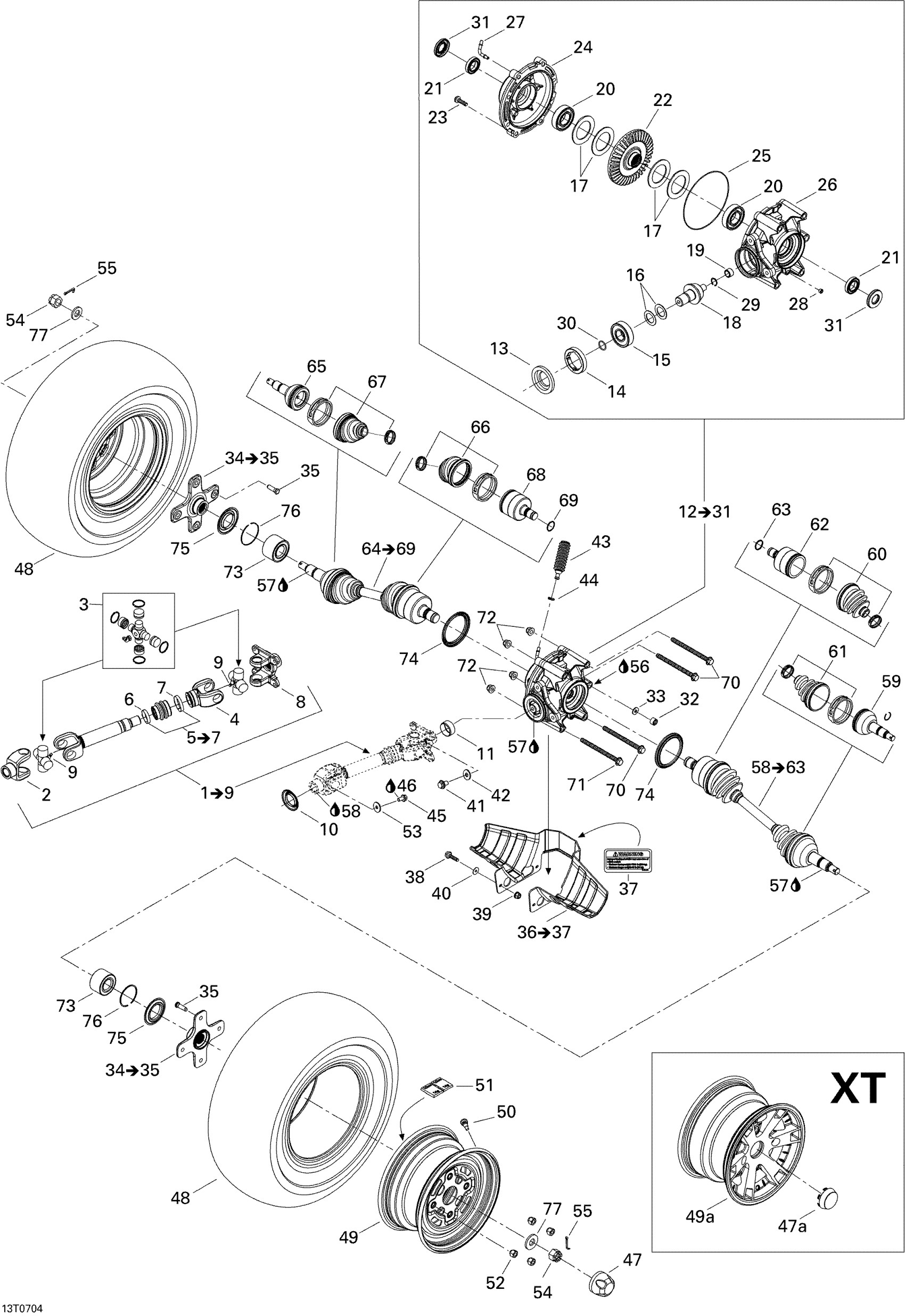

Can-Am Outlander 800 XT 4 X 4, 2007 08- Drive System, Rear XT Diagram

#

Description
Price

1

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$433.99

2

Fixe Yoke

715900101

$29.49

3

Universal Joint

715900326

$68.99

4

SLIDING JOINT - Call your local BRP dealership

705500528

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Collar | 4X4

705400148

Unavailable

7

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

8

DISC JOINT - Call your local BRP dealership

705500526

Unavailable

9

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

10

Protector

705501123

$7.55

11

Wear Ring | 4X4

705400036

$26.49

12

Differential | Includes 11 to 31

705500822

Unavailable

13

Oil Seal | 4X4

705401481

$19.49

14

Nut

705502059

$32.99

15

Ball Bearing | 4X4

705500260

$31.99

16

Pinion Gear Shim 1.67 mm

705502061

$18.99

17

Differential Shim 0.02 mm

705502060

$13.76

18

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

19

Needle Bearing | 4X4

705500261

$19.99

20

Ball Bearing

705502737

$48.49

21

BALL BEARING - Call your local BRP dealership

705500750

Unavailable

22

GEAR, 36 TOOTH - Call your local BRP dealership

705500775

Unavailable

23

Screw | 4X4

705401601

$10.49

24

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705500697

Unavailable

25

Seal | 4X4

705500265

$18.76

26

Rear Cover

705500843

Unavailable

27

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

28

Drain Plug | 4X4

705500894

$11.49

29

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

30

O-Ring | 4X4

705500267

$7.65

31

Oil Seal

705501996

$21.99

32

Fill Level Plug | 4X4

705500504

$10.01

33

Copper Washer | 4X4

705500506

$0.45

34

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

36

Protector Kit | Includes 38 to 39

703500722

$67.99

37

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

38

Hex. Flange Screw M6 X 25

207662544

$0.64

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Flat Washer

250200082

$0.42

41

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

42

Flat Washer M10 | 4X4

250200014

$1.49

43

Rubber Bellow | 4X4

705400552

$6.14

44

Oetiker Clamp

293650042

$3.09

45

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

46

Loctite 271, 10 ml

293800005

$26.99

47

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

47a

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

48

Rear Tire | Traxter 5 Speed XT

705501770

$190.99

49

REAR RIM, BLACK - Call your local BRP dealership

705500792

Unavailable

49a

Rear Rim | XT

705500798

Unavailable

50

Rim Valve With Cap

705400193

$8.69

51

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

Unavailable

52

Steel Wheel Nut

250100042

$3.98

52

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

53

Flat Washer M10 | 4X4

250200014

$1.49

54

Hex. Flange Castellated Nut M18

232291413

$7.98

55

Cotter Pin

250400036

$2.11

56

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

57

Synthetic Grease, 400 G

293550010

Unavailable

58

LH CV JOINT - Call your local BRP dealership | Includes 58 to 63

705500726

Unavailable

59

CV JOINT - Call your local BRP dealership

705500728

Unavailable

60

Boot Kit

705500855

$42.49

61

Boot Kit

705500855

$42.49

62

PLUNGING JOINT - Call your local BRP dealership

705500729

Unavailable

63

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

64

RH CV JOINT - Call your local BRP dealership | Includes 64 to 69

705500727

Unavailable

65

CV JOINT - Call your local BRP dealership

705500728

Unavailable

66

Boot Kit

705500855

$42.49

67

Boot Kit

705500855

$42.49

68

PLUNGING JOINT - Call your local BRP dealership

705500729

Unavailable

69

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

70

Hex. Flange Screw, M10 X 130

230603046

$7.41

71

Hex. Flange Screw M10 X 135

230603546

$7.41

72

Hex. Flange Elastic Nut M10

233201436

$2.11

73

Ball Bearing

293350150

$52.99

74

Wear Ring

705501124

$7.90

75

Wear Sleeve | 4X4

705501121

$7.90

76

Circlip

293370019

$4.68

77

Conical Spring Washer M18

250200171

$7.65
