Description

Price

15

Rear Frame | Included 15 to 15e

705208904

$1,039.99

15a

LH Grip Plate

605356426

$20.99

15b

RH Grip Plate

605356425

$20.99

15c

LH Cargo Support

705204600

$18.49

15d

RH Cargo Support

705204601

$18.49

15e

Stavex Rivet

293150144

$0.82

20

Support Plate

705203564

$24.49

30a

LH Tube

705203669

$104.99

30b

RH Tube

705203670

$119.99

30c

Hex. Cap Screw M6 X 30

207063054

$6.39

30d

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30e

Spring

415107100

$6.35

30f

Lever Support

705203834

$18.49

32

Rubber Collar

708301280

$20.99

35

Torx Screw M6 X 20

250000722

$1.68

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

LH Rear Fender Support

705203611

$76.99

50

RH Rear Fender Support

705203612

$76.99

55

Hexagonal Screw

250000556

$2.11

60

Hex. Flange Elastic Nut M8

233281414

$1.47

65

Hex. Flange Screw M8 X 20

207682046

$1.90

67

Washer

503192494

$3.17

85

Cotter Spring

505073670

$2.19

86

Retainer Cable

293750069

$15.99

100

LH Lower Beam Reinforcement

705203724

$41.99

110

RH Lower Beam Reinforcement

705203725

$41.99

120

Front Support Plate

705203726

$96.99

130

Rear Support Plate

705203727

$96.99

140

LH Differential Support Reinforcement

705203728

$214.99

150

RH Differential Support Reinforcement

705203729

$214.99

160

Torx Screw Scotch Grip M8X60

250000777

$8.11

170

Hex. Elastic Flange Nut M8

233281416

$1.48

180

Forming Screw HD.DIN.7500E

250000678

$3.91

190

Hex Forming Screw DIN.7500D

250000376

$7.51

250

Heat Shield

707601726

$22.49

320a

Trailer Hitch Kit | Package PRO International

705210328

$243.49

320b

Hitch Pin

705204490

$52.99

500

Hex. Flange Screw M8 X 20

207682046

$1.90

510

Hex. Elastic Flange Nut M8

233281416

$1.48

520

Hex. Flange Screw M8 X 75

207687544

$7.41

530

Hex. Flange Screw M6 X 20

207662054

$1.01

540

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

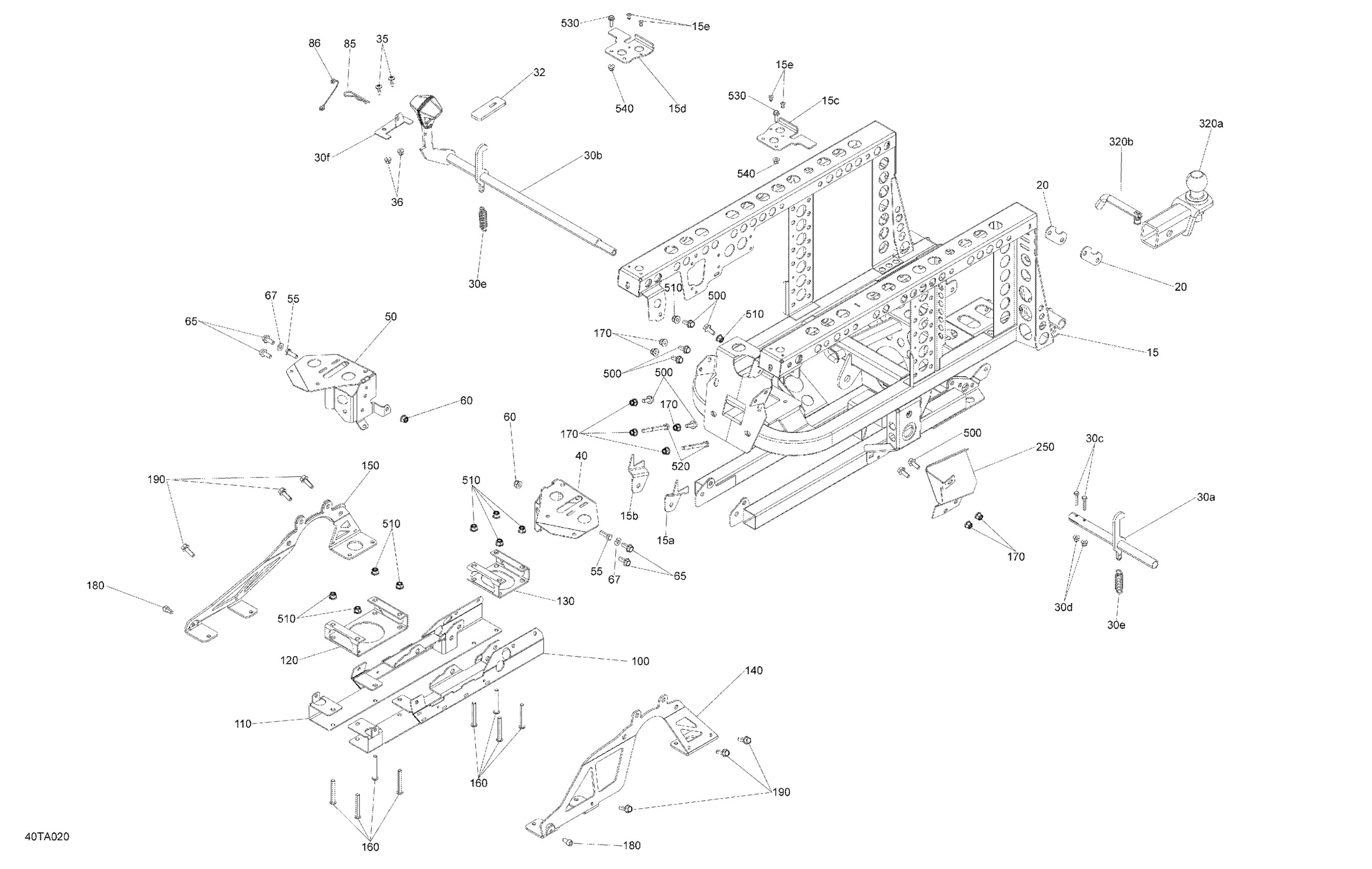

Can-Am 005 - Outlander T MAX 6X6 - 650 EFI - XU+ - T Regulation, 2021 06- Frame - System - Rear Part Diagram

Rear Frame | Included 15 to 15e

LH Grip Plate

RH Grip Plate

LH Cargo Support

RH Cargo Support

Stavex Rivet

Support Plate

LH Tube

RH Tube

Hex. Cap Screw M6 X 30

Hex. Flange Elastic Nut M6 x 1.0

Spring

Lever Support

Rubber Collar

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

LH Rear Fender Support

RH Rear Fender Support

Hexagonal Screw

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 20

Washer

Cotter Spring

Retainer Cable

LH Lower Beam Reinforcement

RH Lower Beam Reinforcement

Front Support Plate

Rear Support Plate

LH Differential Support Reinforcement

RH Differential Support Reinforcement

Torx Screw Scotch Grip M8X60

Hex. Elastic Flange Nut M8

Forming Screw HD.DIN.7500E

Hex Forming Screw DIN.7500D

Heat Shield

Trailer Hitch Kit | Package PRO International

Hitch Pin

Hex. Flange Screw M8 X 20

Hex. Elastic Flange Nut M8

Hex. Flange Screw M8 X 75

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0
