Description

Price

20

Hex. Flange Screw M6 X 20

207662054

$1.01

30

Flange Elastic Nut M6

233261434

$4.44

60

Hex. Flange Elastic Nut M8

233281434

$2.11

70

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

80

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Step

705007040

$97.99

120

RH Step

705007039

$129.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

311

ESD Bracket

705013222

$48.99

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

460

Edge Clip

517302785

$0.88

491

Heat Shield

707002456

$3.89

492

Heat Shield

707002457

$3.89

493

Heat Shield

707002458

$19.99

494

Heat Shield

707002459

$3.89

496

Heat Shield

707002461

$3.89

497

Heat Shield

707002462

$3.89

499

Heat Shield

707002464

$3.89

510

LH Rear Facia | Europe

705006651

$15.99

511

Heat Shield

707002103

$10.49

512

Heat Shield

707002107

$2.59

513

Heat Shield

707002594

$0.98

520

RH Rear Facia | Europe

705006652

$15.99

550

LH Support

705007277

$30.99

560

RH Support

705007278

$30.99

570

Push Nut

732610072

$2.19

590

Torx Screw M6 X 20

250000722

$1.68

685

Deflector Body Panel

705014061

$43.99

686

Push Nut

732610072

$2.19

690

Engine Cover

705003444

$22.99

770

Tuflok Plastic Rivet

293150230

$1.47

830

Deep Black, Rear Bumper

705017380

$291.49

870

LH Rear Bracket | XT

705008164

$37.99

880

RH Rear Bracket | XT

705008165

$37.99

890

LH Bracket | XT

705005094

$7.19

900

RH Bracket | XT

705005095

$7.19

910

Stainless, Torx Screw M6 X 30

250000842

$2.11

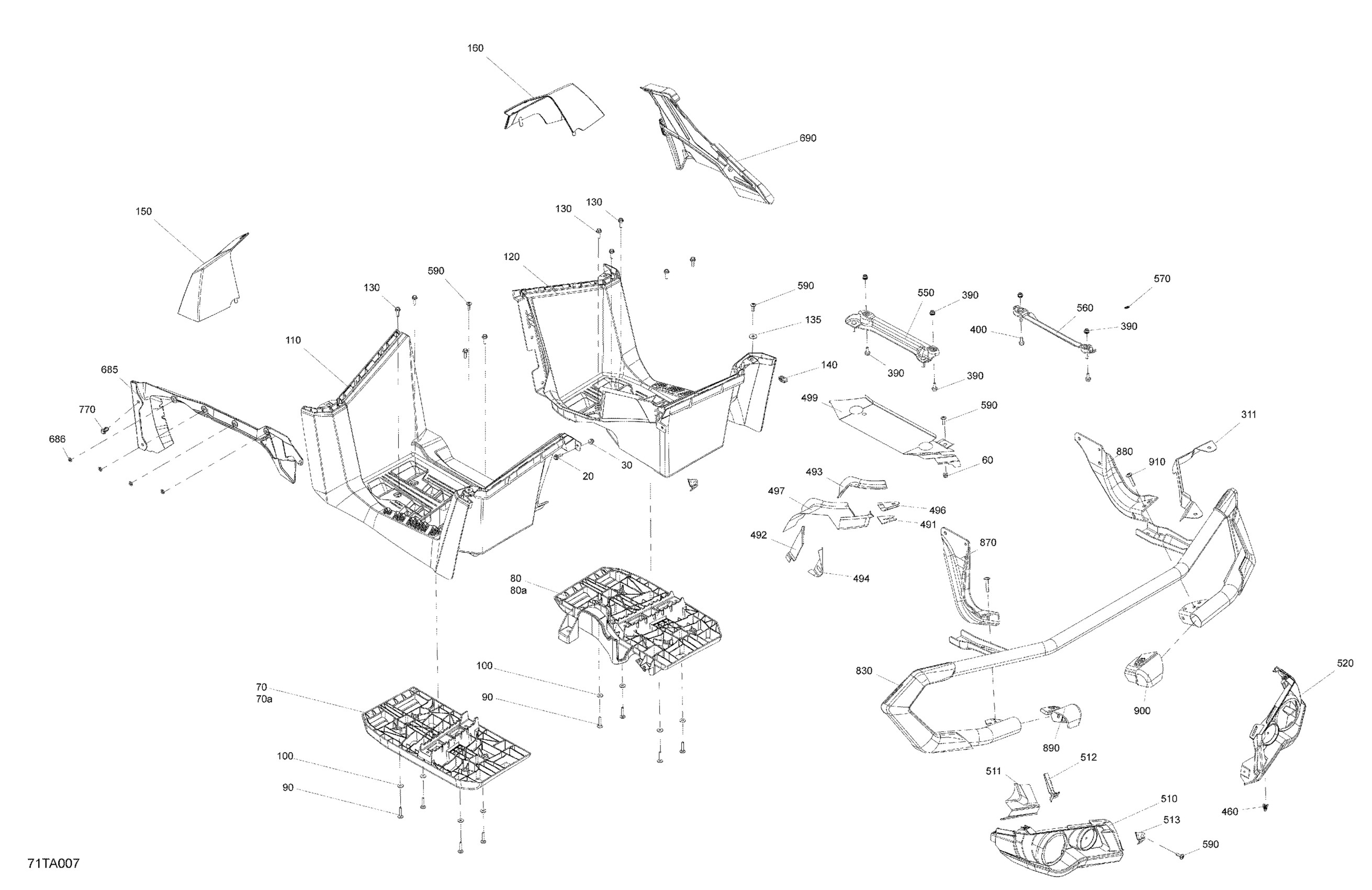

Can-Am 001 - Outlander T 650 EFI - XT_XU+ - T Regulation, 2021 07- Body - Rear Section Diagram

Hex. Flange Screw M6 X 20

Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

LH Structural Footboard

Square Nut M6

RH Structural Footboard

Square Nut M6

Carriage Bolt M6 X 35

Flat Washer 6 mm

LH Step

RH Step

Hex. Flange Screw M6 X 20

Flat Washer

Panel Nut M6 X 1.0

LH Air Deflector

RH Air Deflector

ESD Bracket

Insert Half Hex Body M6 x 1.0

Hex. Flange Screw M6 X 16, Scotch Grip

Edge Clip

Heat Shield

Heat Shield

Heat Shield

Heat Shield

Heat Shield

Heat Shield

Heat Shield

LH Rear Facia | Europe

Heat Shield

Heat Shield

Heat Shield

RH Rear Facia | Europe

LH Support

RH Support

Push Nut

Torx Screw M6 X 20

Deflector Body Panel

Push Nut

Engine Cover

Tuflok Plastic Rivet

Deep Black, Rear Bumper

LH Rear Bracket | XT

RH Rear Bracket | XT

LH Bracket | XT

RH Bracket | XT

Stainless, Torx Screw M6 X 30
