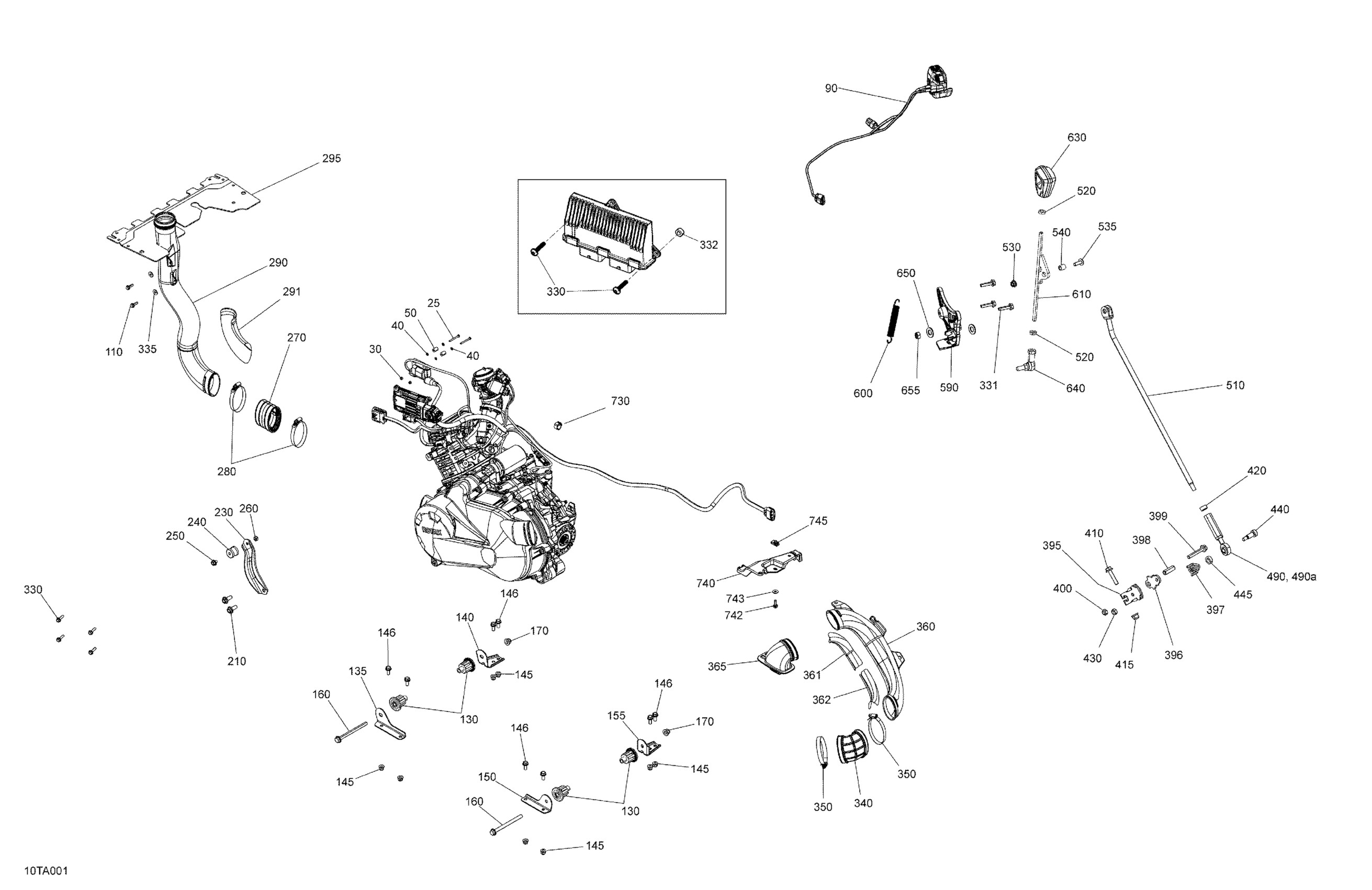

Can-Am 004 - Outlander T MAX 450 EFI - DPS - T Regulation, 2021 02- Engine - System Diagram

#

Description
Price

25

Hex. Cap Screw

207144044

$1.01

30

Extruded Panel Nut M4 X 0.7

250100143

$8.49

40

Flat Washer 4 mm

234040600

$0.55

50

Bushing

293900117

$2.61

90

Throttle Handle

707002408

$229.99

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

130

Vibration Damper

707001169

$42.99

135

LH Front Engine Bracket

707001407

$15.99

140

RH Front Engine Bracket

707001408

$15.99

145

Hex. Elastic Flange Nut M8

233281416

$1.48

146

Hex. Flange Screw M8 X 20

207682046

$1.90

150

LH Rear Engine Bracket

707001409

$15.99

155

RH Rear Engine Bracket

707001410

$15.99

160

Hex. Flange Screw M10 X 125

230602546

$7.41

170

Hex. Flange Elastic Nut M10

233201436

$2.11

210

Hex. Flange Screw M10 X 25

207602544

$1.69

230

Upper Engine Bracket

707001411

$13.99

240

Rubber Isolator

707000949

$11.49

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

260

Hex. Elastic Stop Nut M8

232581414

$0.56

270

Flexibale Adaptor

707002585

$10.99

280

Norma Clamp

293650091

$11.12

290

CVT Air Inlet

707002289

$48.99

291

Heat Shield

707001638

$3.79

295

Upper Water Deflector

707001124

$22.49

330

Screw PT K60 X 30

250000949

$2.11

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

332

Bushing

293900128

$3.08

335

Flat Washer M6, Stainless

234062600

$0.77

340

CVT Air Outlet Adaptor

707001425

$18.49

350

Norma Clamp

293650091

$11.12

360

CVT Air Outlet

707001413

$37.99

361

Heat Shield

707001639

$2.99

362

Heat Shield

707001641

$2.99

365

CVT Cooling Duct Out

706600400

$54.99

395

Lever

707000503

$38.49

396

Pivot Plate

707000507

$9.23

397

Spring

707000310

$10.43

398

Bushing

293900079

$8.89

399

Hex. Flange Screw M6 X 40

207664044

$2.22

400

Elastic Stop Nut M6

232561434

$1.99

410

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Hex. Nut M8, LH Threads

250100144

$2.00

430

Elastic Stop Nut M6

232561434

$1.99

440

Socket Head Screw M8 X 16

250000669

$3.17

445

Bushing

293900028

$12.71

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

490a

Hex. Jam Nut M8

232180600

$0.67

510

Shifter Rod

707002382

$38.99

520

Hex. Jam Nut M8

232180600

$0.67

530

Hex. Flange Nut M6

233161414

$2.11

535

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

540

Bushing

293900019

$7.73

590

Lever Support

707003054

$6.67

600

Spring

707000577

$10.99

610

Shift Arm | Except Europe

707000840

$16.87

630

Lever Trim

707003211

$8.49

640

RH Ball Joint

707001959

$36.99

650

Washer

506151252

$3.17

655

Hex. Elastic Stop Nut M8

232581414

$0.56

730

Oetiker Clamp

293650100

$3.38

740

Air Outlet Support

707003075

Unavailable

742

Hex. Flange Screw M6 X 20

207662044

$2.00

743

Flat Washer 6 mm

234062410

$0.77

745

Panel Nut M6 X 1.0

250100198

$2.11
