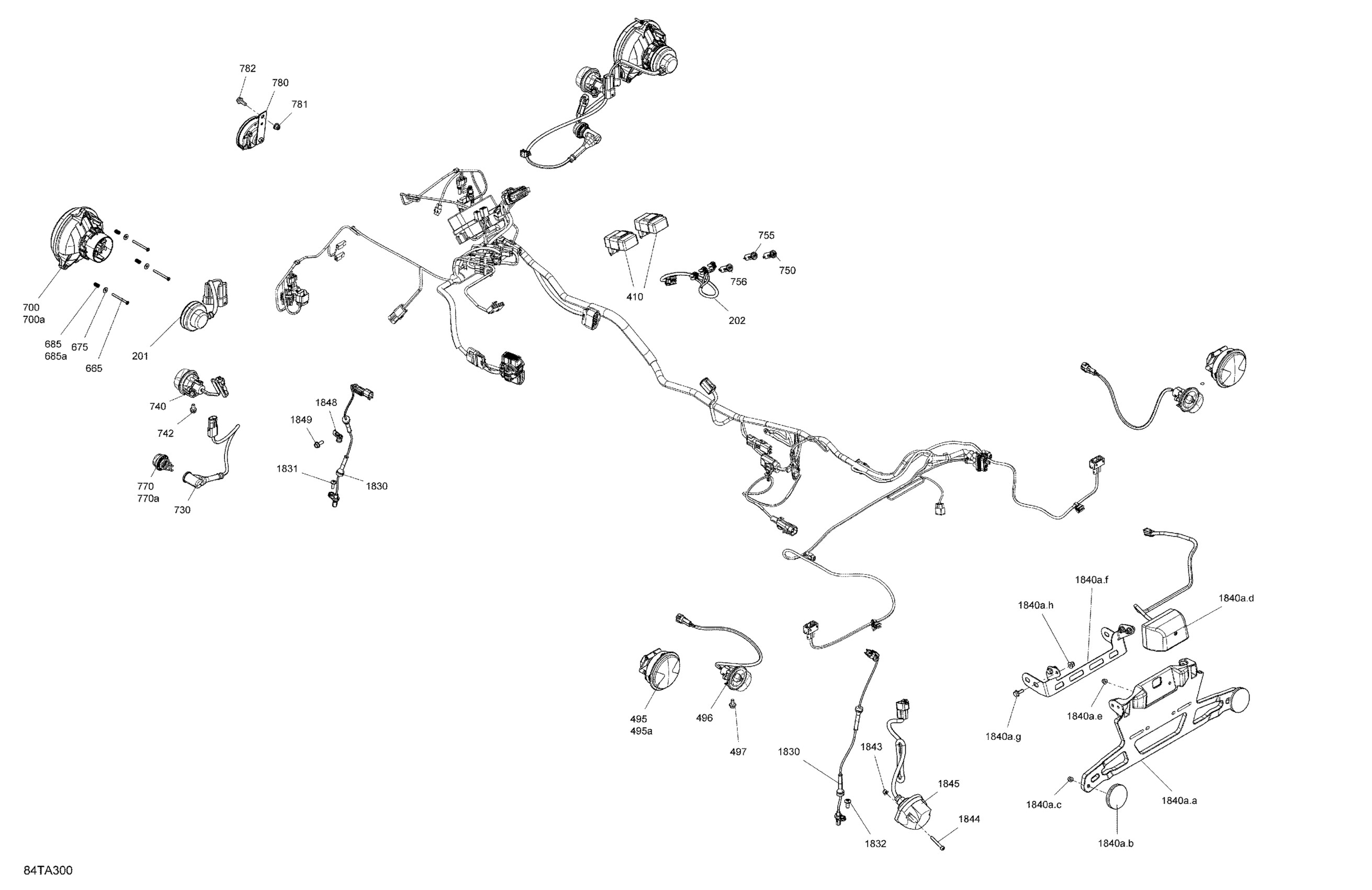

Can-Am 002 - Outlander T 570 EFI - STD_DPS_XU - T Regulation, 2021 08- Electric - Flasher lights Diagram

Description

Price

201

Light Cable

710005780

$23.99

202

Indicator Light Cable

710005840

$19.99

280

Clip

414227300

$1.67

281

Clip

414227300

$1.67

410

Flasher Unit

710003239

$78.49

495

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

495a

Bulb

520000758

$9.10

496

Flasher | Europe

710002964

$35.99

497

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

665

Hex. Screw K40 X 45

250000718

$2.11

675

Flat Washer

517225900

$0.18

685

Spring

517168600

$7.39

685a

Spring

517168600

$7.39

700

Low Beam

710003900

$114.99

700a

Bulb, 12V 35/35W

710000871

$34.99

730

Position Light Harness

710005676

$15.49

740

Flasher | Europe

710002964

$35.99

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

750

Pilot Lamp | Model-Europe

710003909

$21.99

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

770

Day Light | Europe

710001726

$35.99

770a

Cap Protector | Model-Europe

710003269

$12.11

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 16

207661644

$0.74

1830

Speed Sensor

710006981

$83.99

1831

Torx Screw K50 X 16

250000720

$1.69

1832

Torx Truss Screw M6 X 16

250000721

$1.69

1840a.a

Plate Support | Europe

708300434

$27.99

1840a.b

Red Reflector

705011221

$14.49

1840a.c

Flange Elastic Nut M5

233251434

$2.00

1840a.d

License Plate Light | Europe

710005563

$126.99

1840a.e

Flange Elastic Nut M5

233251434

$2.00

1840a.f

License Plate Support

710009520

$12.99

1840a.g

Hex. Flange Screw M6 X 16

207661644

$0.74

1840a.h

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1840b

Elastic Flange Nut M8

233281464

$1.01

1840c

Torx Truss Screw M8 X 50

250000761

$7.51

1843

Flange Elastic Nut M5

233251434

$2.00

1844

Socket Head Screw M5 X 35

205053588

$1.90

1845

Trailer Harness

710005846

$229.99

1848

Clamp

293650256

$5.49

1849

Hex. Flange Screw M6 X 16

210261640

$2.11
