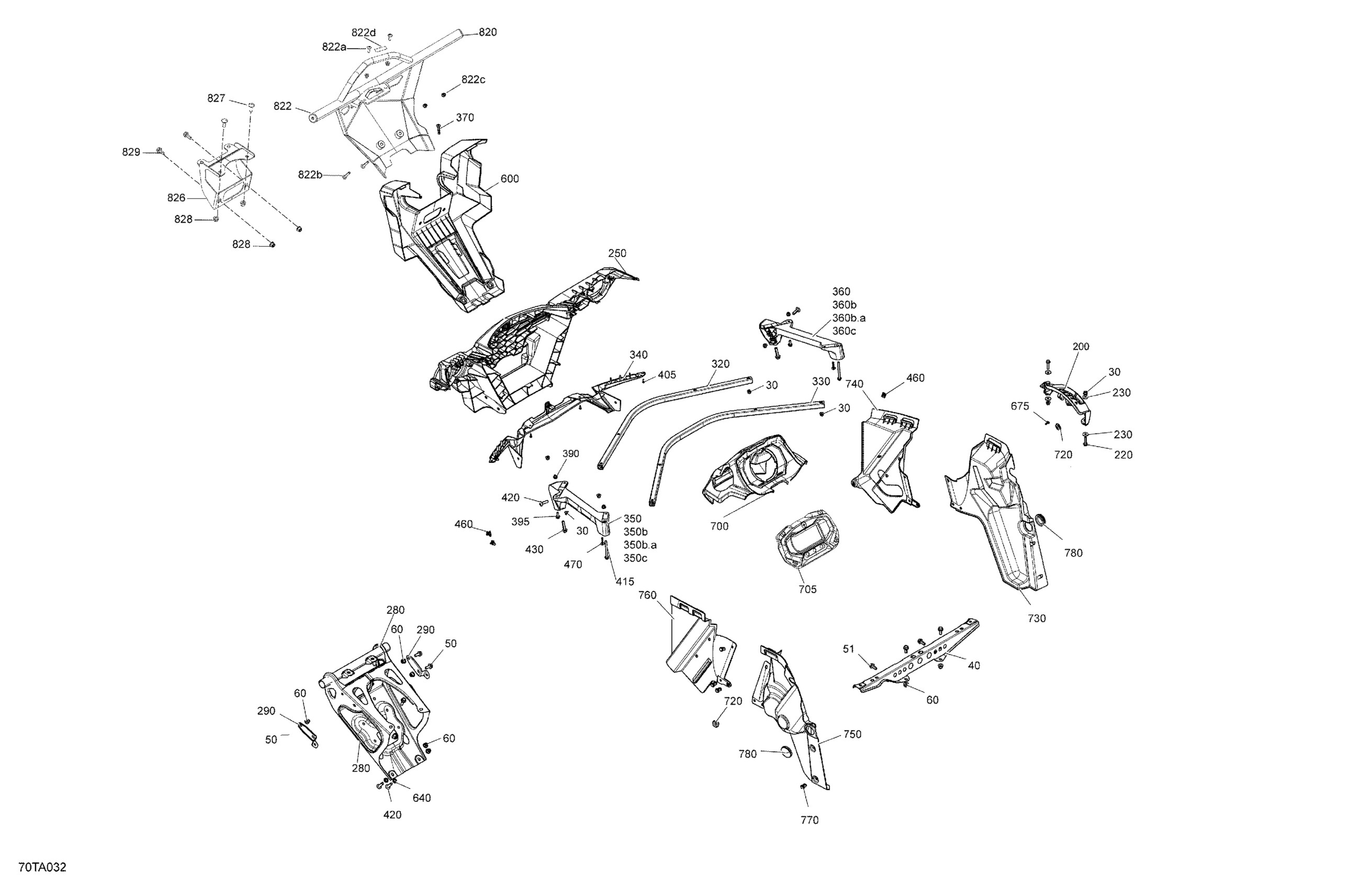

Can-Am 004 - Outlander 1000R EFI - XXC - CE, 2021 07- Body - Front Section Diagram

#

Description
Price

30

Flange Elastic Nut M6

233261434

$4.44

40

Cargo Rack Center Support

705006812

$61.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

200

Shifter Gate Ass'y

715007676

$26.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Fascia

705012822

$119.99

280

Front Bumper Support

705016893

$349.99

290

Lower Fender Support

705004565

$6.89

320

Sectional Bent Tube

705016640

$38.99

330

Bent Sectional Tube

705016092

$42.99

340

Lugage Rack Moulding

705004523

$24.49

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

350b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

350b.a

Hex. Elastic Nut M8 Brass

232581200

$2.22

350c

Hex. Elastic Stop Nut M6

232561600

$1.15

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

360b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

360b.a

Hex. Elastic Nut M8 Brass

232581200

$2.22

360c

Hex. Elastic Stop Nut M6

232561600

$1.15

370

Black, Torx Screw M6 X 35

250000646

$0.98

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

405

Screw K40 X 10

241140060

$1.48

415

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Screw M8 X 35

207683544

$1.69

460

Edge Clip

517302785

$0.88

470

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

600

Front Guard Plate | North America, International

705006299

$51.99

640

Ring

705004497

$5.19

675

Phillips Screw K40 X 16

250000723

$0.98

700

Gauge Support

705013984

$19.99

703

Extruded Panel Nut M4 X 0.7

250100143

$8.49

705

Front Gauge Trim

705013985

$22.49

708

Torx Head Screw M4 X 16

250000797

$2.09

720

Grommet

705003264

$4.09

730

RH Wheel Arch Protector

705013925

$19.04

740

RH Front Inner Fender

705011463

$18.49

750

LH Wheel Arch Protector

705013924

$19.04

760

LH Front Inner Fender

705011465

$18.49

770

Tuflok Plastic Rivet

293150230

$1.47

780

Rubber Cover

293250242

$6.99

820

Front Bumper Ass'y | Model XXC

715007687

$779.99

822

Assembly Kit | Model XXC

705014415

$27.99

822a

Torx Truss M8 X 25

250000874

$2.11

822b

Torx Truss Screw M8 X 50

250000761

$7.51

822c

Hex. Flange Elastic Nut M8

233281434

$2.11

822d

Warning Decal Bumper

704906938

Unavailable

826

Bumper Support

705012722

$76.99

827

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

828

Hex. Flange Elastic Nut M8

233281434

$2.11

829

Hex. Flange Screw M8 X 25

207682534

$2.11
