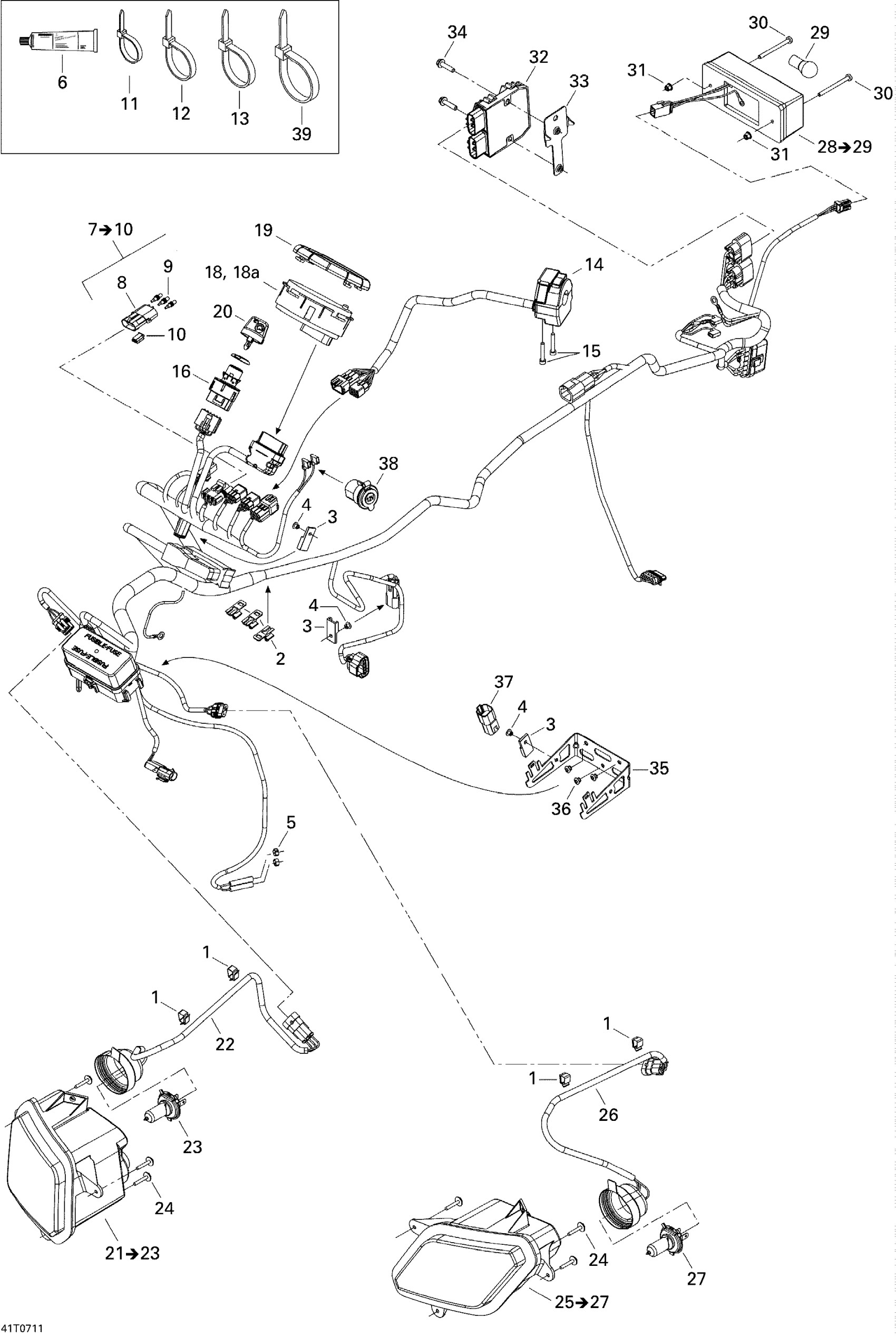

Can-Am Outlander 650 XT 4 X 4, 2007 10- Electrical Accessories XT Diagram

Clip

414227300

$1.67

Housing Support

515175283

$9.19

Clip

270000141

$11.49

Pop Rivet 3/16"

390402400

$0.35

Oetiker Clamp

293650100

$3.38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Multi-Fonction Handle

710000791

$116.49

Socket Head Screw M5 X 35

205053588

$1.90

Ignition Switch | Includes 16 to 17

710002324

$79.49

SPEEDOMETER - Call your local BRP dealership

710001060

Unavailable

TRIM RING - Call your local BRP dealership

710000353

Unavailable

Black, Electronic Key

710000817

$63.49

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

Bulb, 12V 35/35W

710000871

$34.99

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

Bulb, 12V 35/35W

710000871

$34.99

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$95.99

Bulb

520000758

$9.10

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

Hex. Flange Elastic Nut M5

233251414

$1.04

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

Pop Rivet 3/16"

390402400

$0.35

Diagnostic Connector

278002704

$19.49

Outlet Power Kit, 12 Volts

861507200

$36.99

Tie-rap 627 mm

293750041

$0.93
